6.7 Filtermist
A Filtermist unit is an oil mist collector that use centrifugal impaction to remove or reclaim oil mist, coolant,
fume and steam from manufacturing operations.

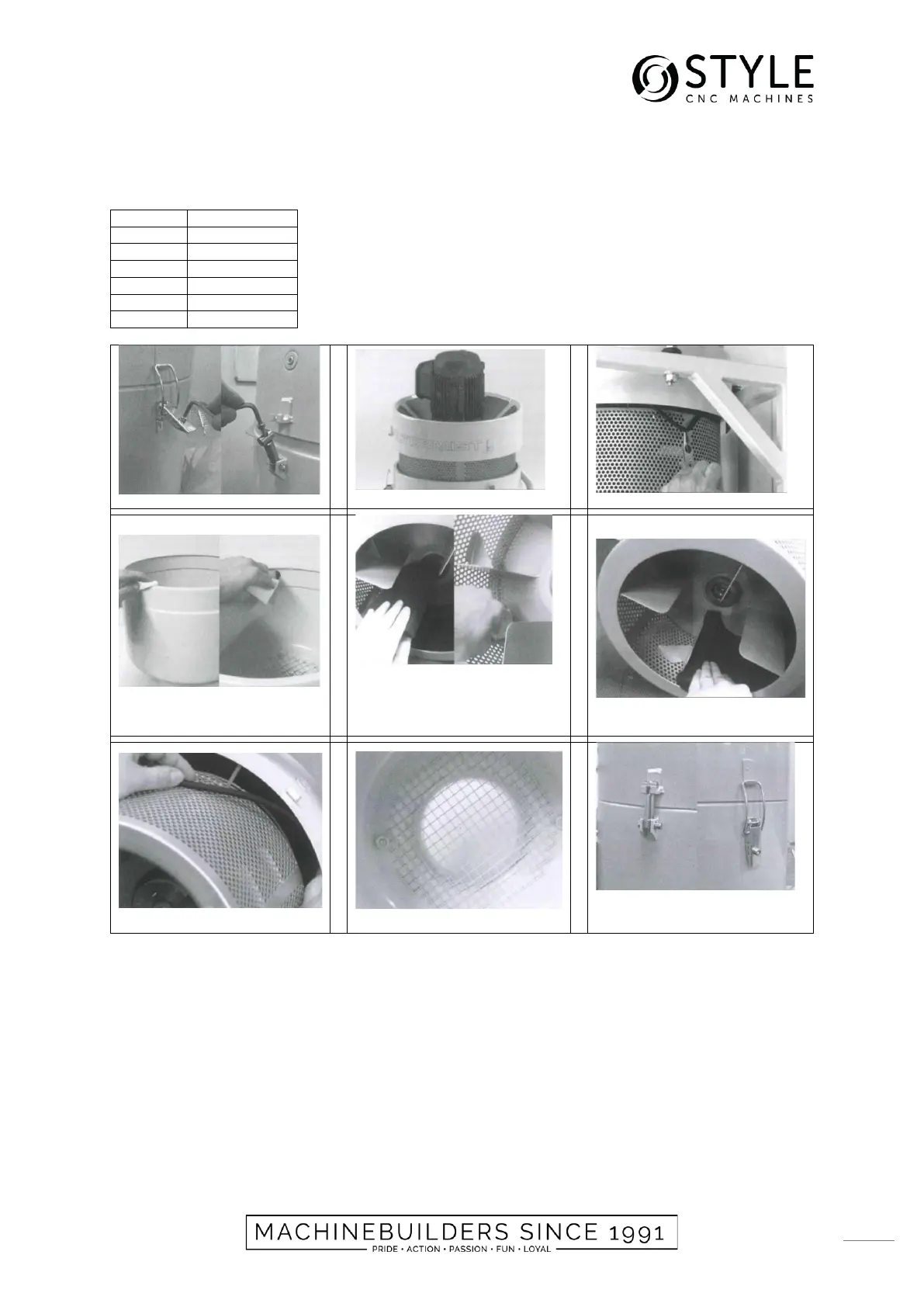

6.7.1 Maintenance every 1000 hours
Use filter kit 4.
Type:
Kit number:
S200
20-213-30-050
S400
20-213-30-046
S800
20-213-30-051
FX4002
20-213-30-047
FX5002
20-213-30-048
FX6/7002
20-213-30-049
Undo safety latch and clips
Separate top and bottom of case.
Remove old seal.
Clean area where top and bottom of
case join & clean drain hole.
Remove old drum pads, clean inside
of drum and inspect drum for signs of
damage.
IMPORTANT! Damaged drums
should be replaced
Fit new drum pads.
Fit new seal.
Check inlet grille is clear.
Re-assemble unit.
IMPORTANT! Ensure safety latch
and clip are securely fastened.
