STYLE 350 - Automatic tool changer

Machine manual STYLE 350 – 510 V4.9
29

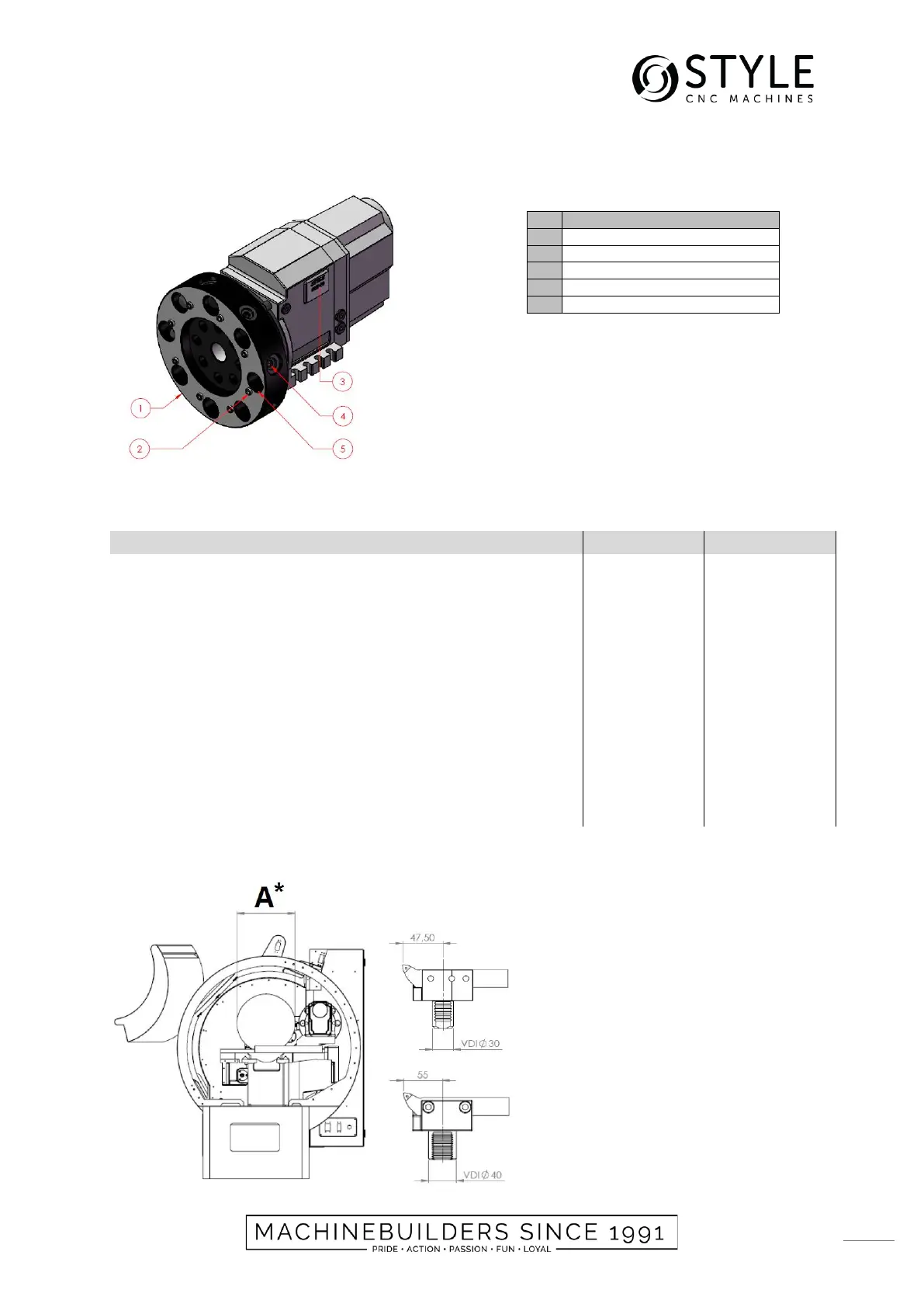

5.11 Automatic tool changer
5.11.1 Overview
5.11.2 Specifications
STYLE 350
STYLE 510
Type
[-]
SHT 63
SHT 80
Weight
[kg]
54
83
Positions
[-]
8
8
Tool size
[-]
VDI 30
VDI 40
Max. distance center main spindle – center VDI tooling.
[mm]
175
261,5
Max. diameter icw. Seco PWNL2525M06 (Dimension A)
[mm]
255*
413*
Max. diameter in tool changer
[mm]
30
40
Max. weight in tool changer
[kg]
20
31
Tool change time (180⁰)
[sec]
1,4
1,6
Repeatability precision tool changer
[sec]
± 2
± 2
Diameter disc tool changer
[mm]
240
305
PCD tooling position
[mm]
190
245
* The shown dimension is calculated with B1 tool holder icw SECO PWNL2525M06. By using another tool or tool
holder the diameter will increase or decrease.
#
Description
1
Disc tool changer
2
Coolant output
3
Type plate
4
Clamp bolt
5
Tooling position
