FU(H4SO)-7
FUEL INJECTION (FUEL SYSTEMS)
General Description

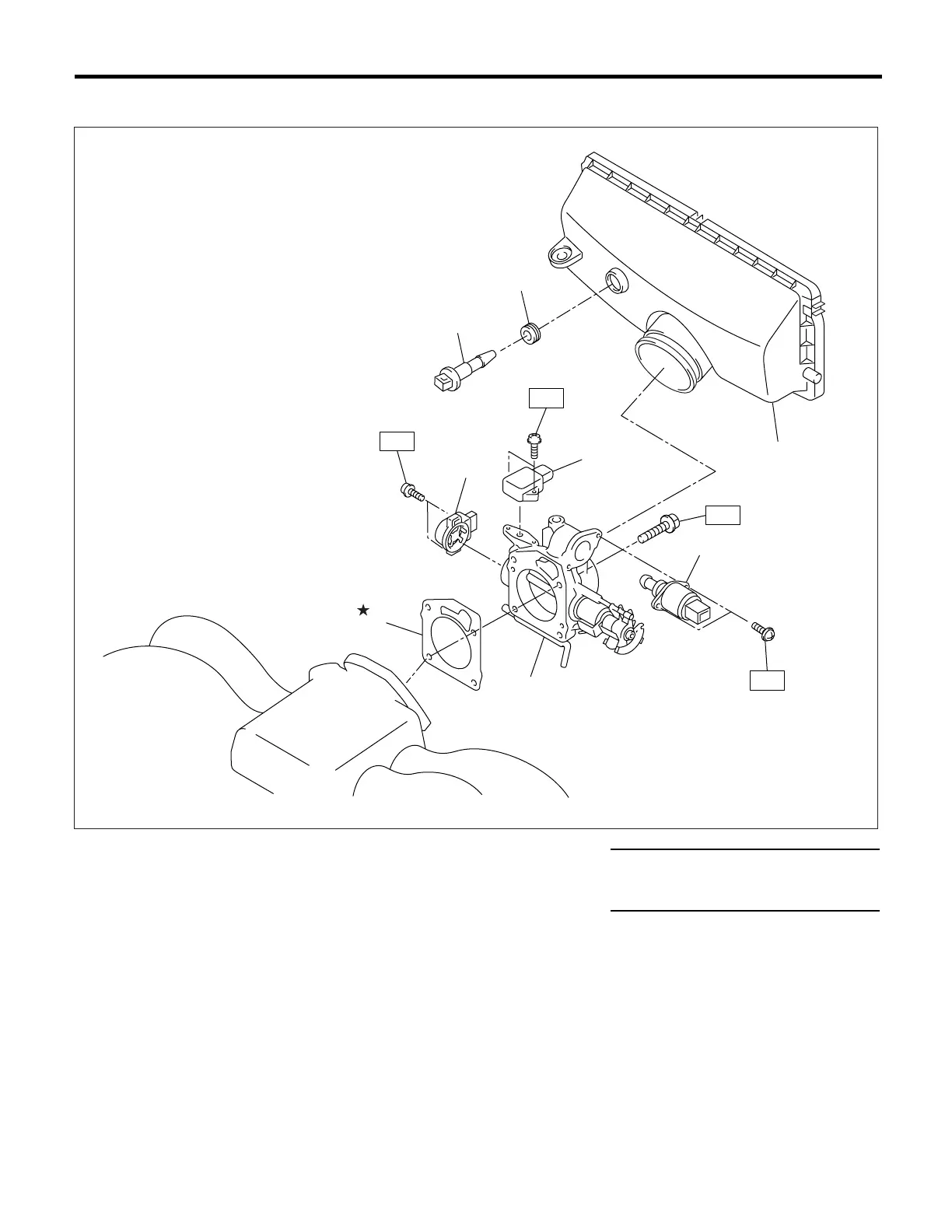

2. AIR INTAKE SYSTEM
(1) Gasket (5) Throttle body Tightening torque: N·m (kgf-m, ft-lb)
(2) Throttle position sensor (6) Intake air temperature sensor T1: 1.6 (0.16, 1.2)
(3) Idle air control solenoid valve (7) Grommet T2: 22 (2.2, 15.9)
(4) Manifold absolute pressure sensor (8) Air cleaner case
FU-00955
(2)
(3)
(4)
(5)
(1)
T1
T1
T1
T2
(8)
(6)
(7)
To Next Page
