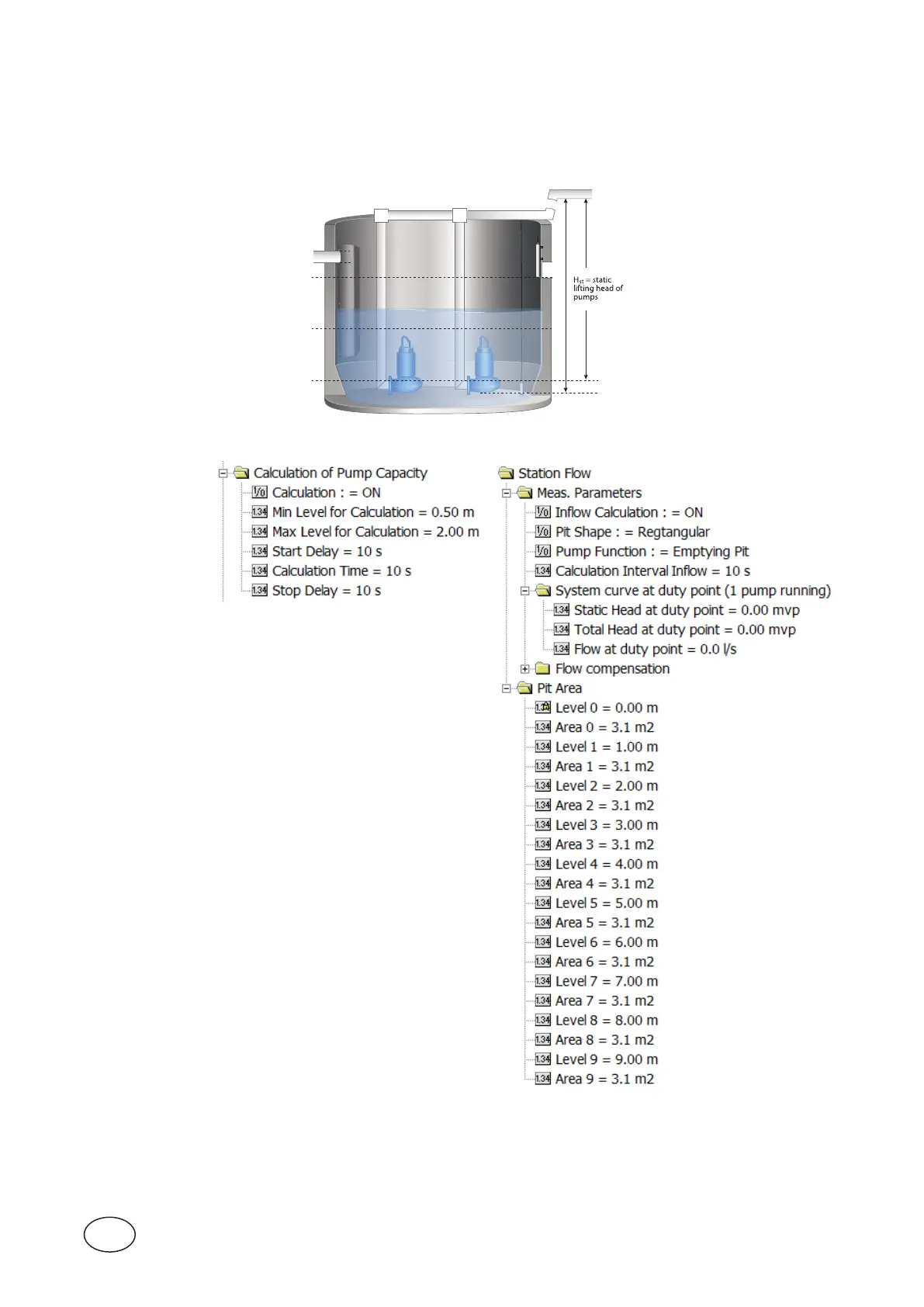

The important parameters for a level-based ow measurement are easily entered in the software.
NOTE!! Ifapressuresensorismountedonthemainsnosystemcurveinformationneedstobeentered.Forcorrect
monitoringtheleveldi󰀨erencebetweenpumpsuctionpointandpressuresensoronthemainsmustbegiven.
Lifting elevation = 18 m
Mid level 2.5 m from
lowest level
M = 18 m - 2.5 m = 15.5 m
Overflow at 5 m from
lowest level
H = 18 m - 5 m = 13 m
Lowest level 0 m
L = 18 m - 0 m = 18
m
