Sulzer ABS PC 441 - Page 31

81307063I
EN
27
Settings
Valuable pump performance information is given in the pump technical data sheet.
Totalheadfromsensorzerolevelisanoldsettingactuallyreferringtothestatichead.Thisonly
needstobesetifnosystemcurveinformationisenteredornomainspressuresensoriscongured.

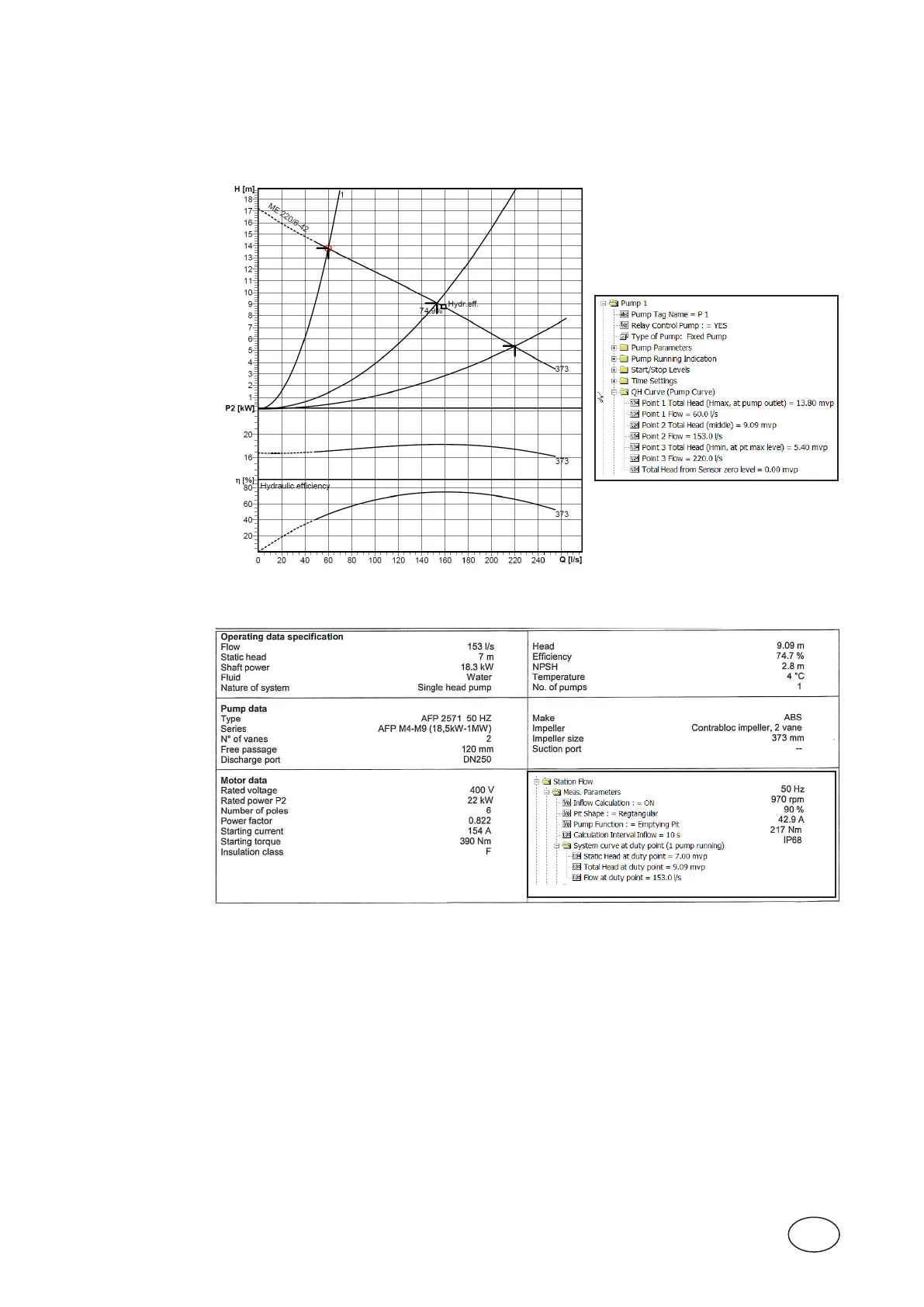

Figure 3-2 Exampleofpumpcurve
Figure 3-3 Technical data in data sheet
