1-6 Sun Fire X2100 Server User Guide • April 2007

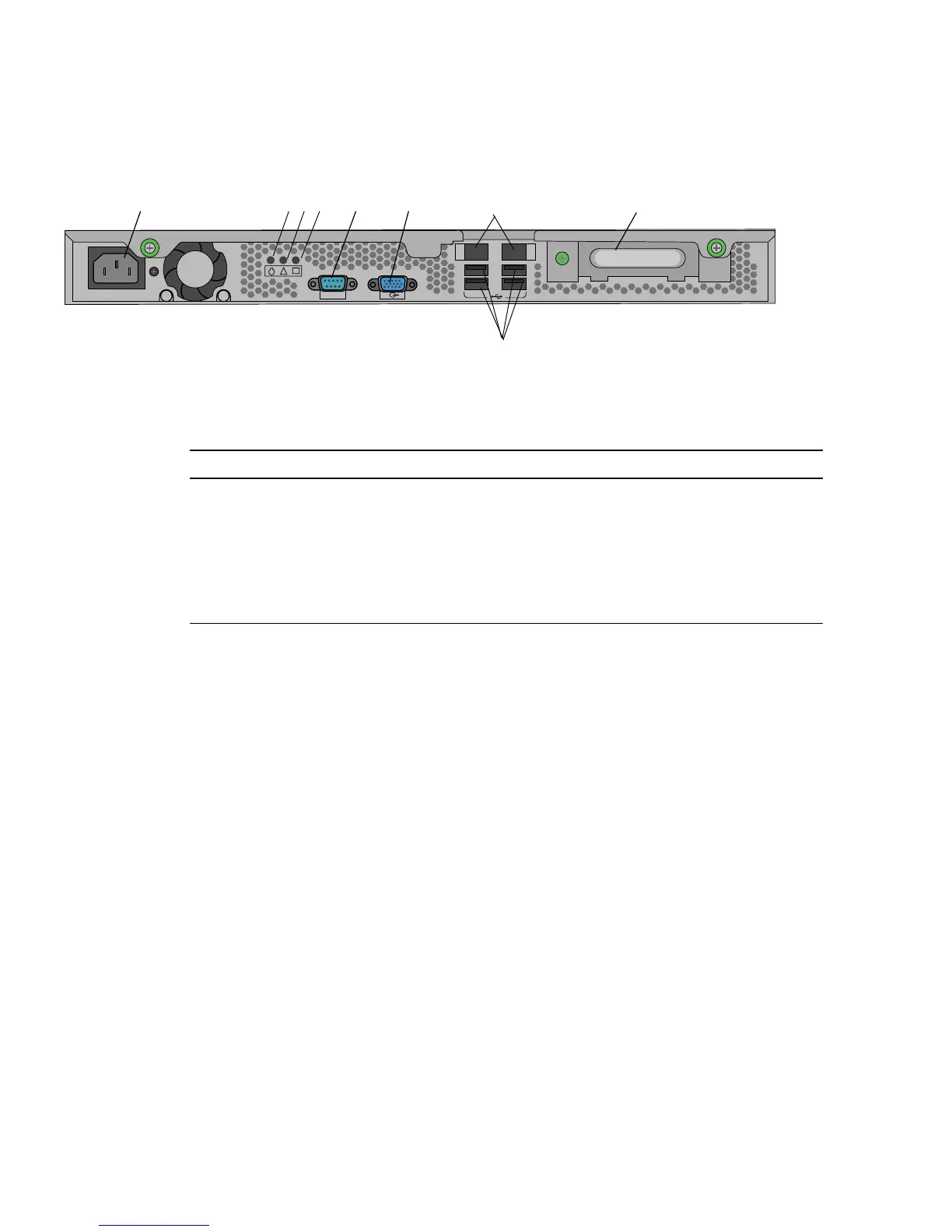

FIGURE 1-2 depicts the rear panel of the Sun Fire X2100 Server.
FIGURE 1-2 Rear Panel
TABLE 1-4 Rear Panel
Label Connector/Slot Label Connector/Slot
1 Power connector 6 Onboard HD15 video connector
2 Locate LED 7 Ethernet connectors (2)
3 Status LED 8 PCI-Express x8 slot
4 Power LED 9 USB connectors (4)
5 Serial connector
SERIAL
12
9
8734 5 6
