4.4 Locations of Server Components
Refer to FIGURE 4-2 to locate components before performing the remove and replace
procedures.

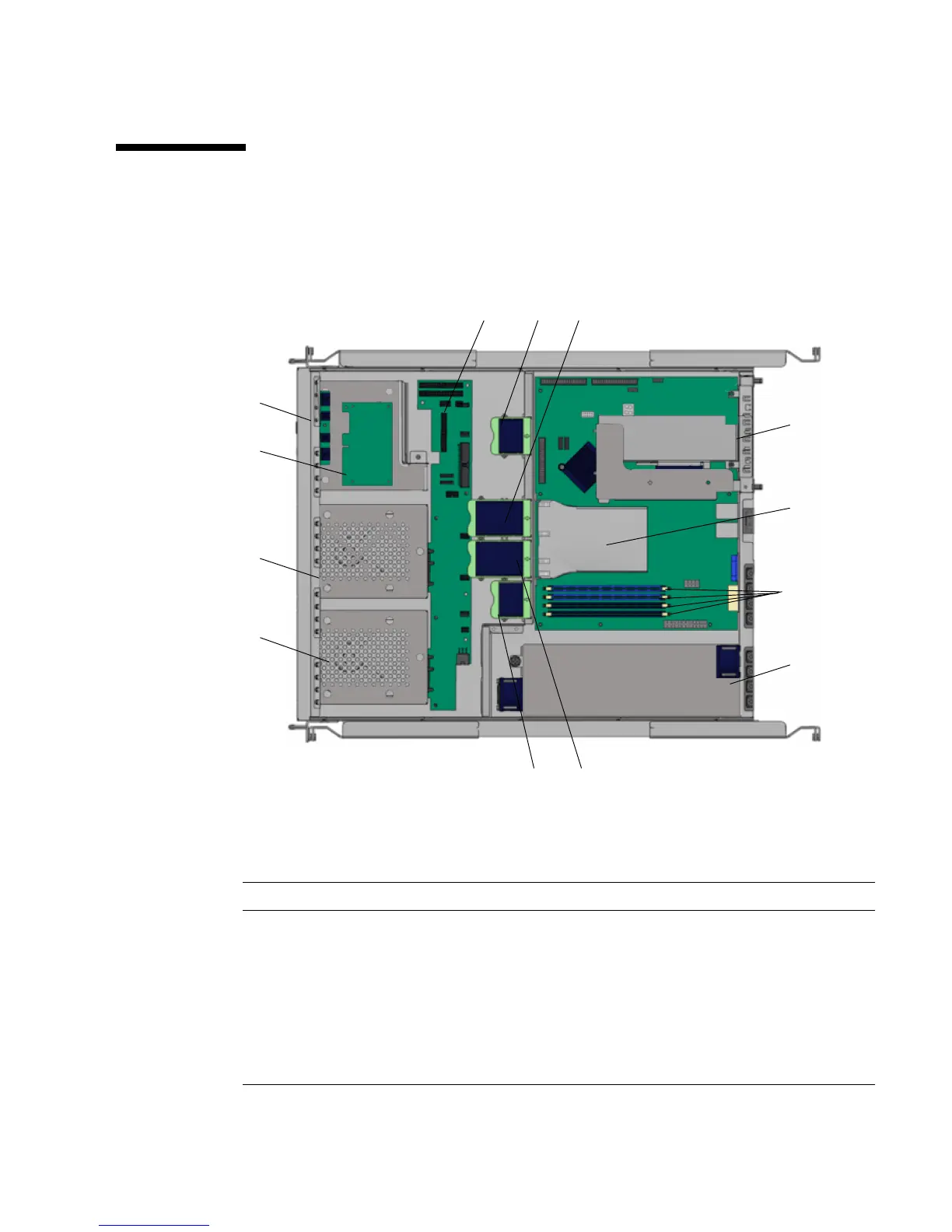

FIGURE 4-2 Sun Fire X2100 Server System Components
TABLE 4-1
Label Component Label Component
1 Hard drive 2 7 Dual fan modules (2)
2 Hard drive 1 8 PCI-Express card and riser
3 Optional service processor 9 Air baffle
4 Optional DVD drive 10 DIMM slots (4)
5 SATA backplane 11 Power supply
6 Single fan modules (2)
1
3
4
5
8
2
9
10
11
6
7
2
6
7
