Sun Microsystems Sun Fire X2100 - Internal Components

Chapter 1 Introduction to the Sun Fire X2100 Server 1-7
1.3.2 Internal Components

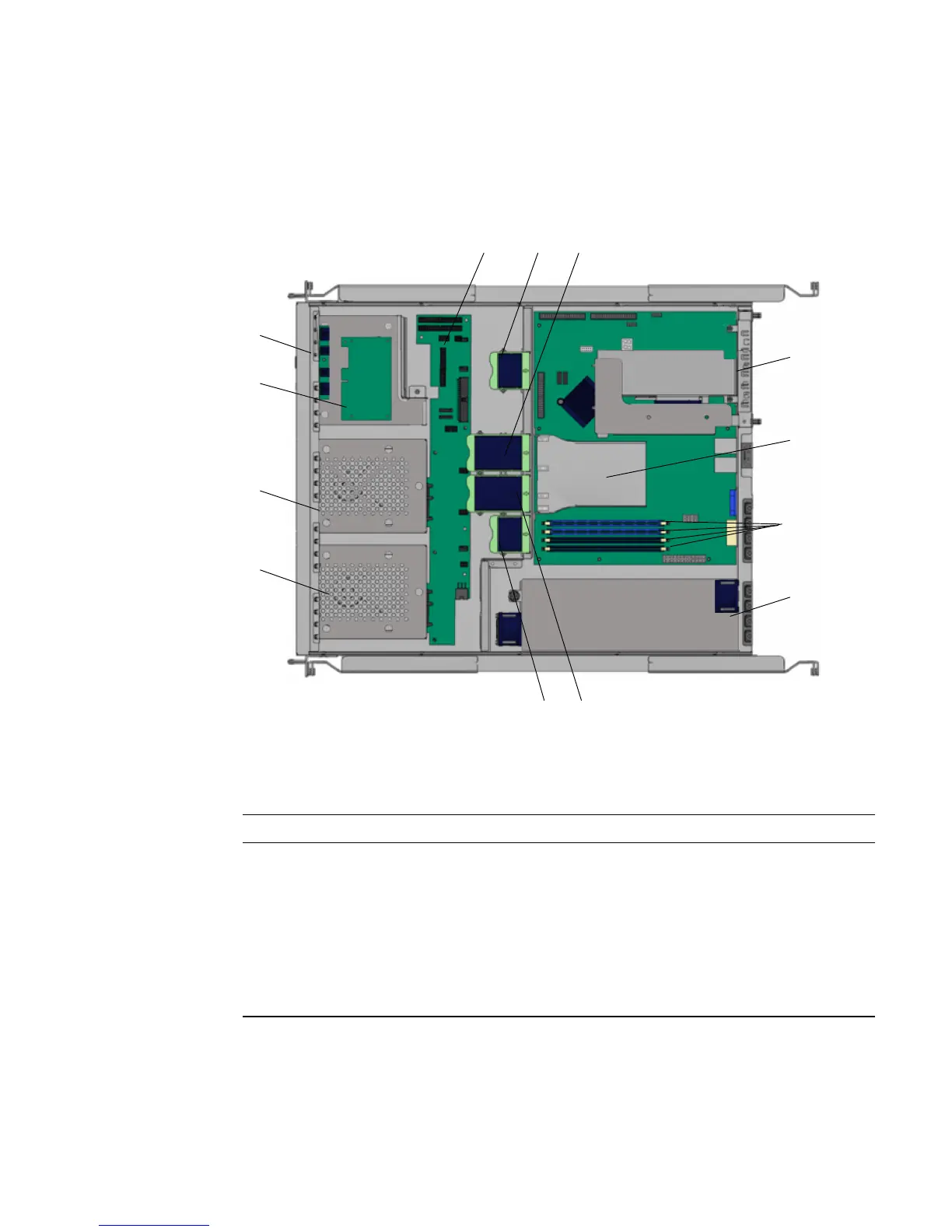

FIGURE 1-3 shows the locations of the components inside the Sun Fire X2100 Server.
FIGURE 1-3 Sun Fire X2100 Server System Components
TABLE 1-5 Sun Fire X2100 Server Internal Components
Label Component Label Component
1 Hard drive 2 7 Dual fan modules (2)
2 Hard drive 1 8 PC-Express card and riser
3 Optional service processor 9 Air baffle
4 Optional DVD drive 10 DIMM slots (4)
5 SATA backplane 11 Power supply
6 Single fan modules (2)
1
3
4
5
8
2
9
10
11
6
7
2
6
7
