Chapter 4 Maintaining the Sun Fire X2100 Server 4-21

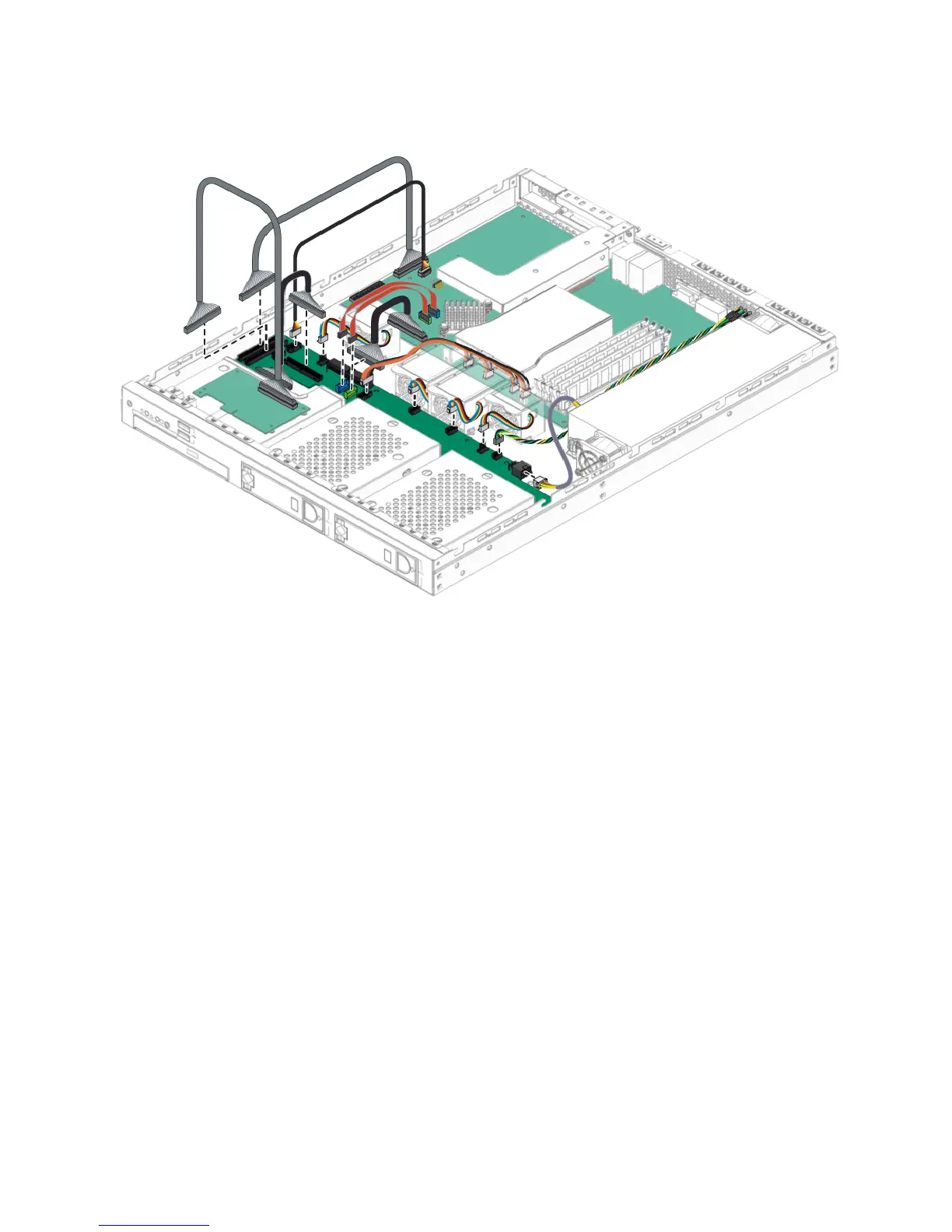

FIGURE 4-16 Server Internal Cable Routing
4. Check the routing of all cables for obstructions, and then install the cover.
5. Install the hard drives. (See Section 4.5.4, “SATA Hard Disk Drive and Carrier” on
page 4-15).
