Chapter 2 Installing Server Options 25
▼ Remove the Top Cover From the Sun Fire X4275
Server
1. Ensure that the AC power cords are disconnected from the server power
supplies.
2. Unlatch the fan module door (
FIGURE 2-1 [1]).
Press the two green release buttons on the sides of the fan module door to release
the door. Rotate the fan module door to the open position and hold it there.

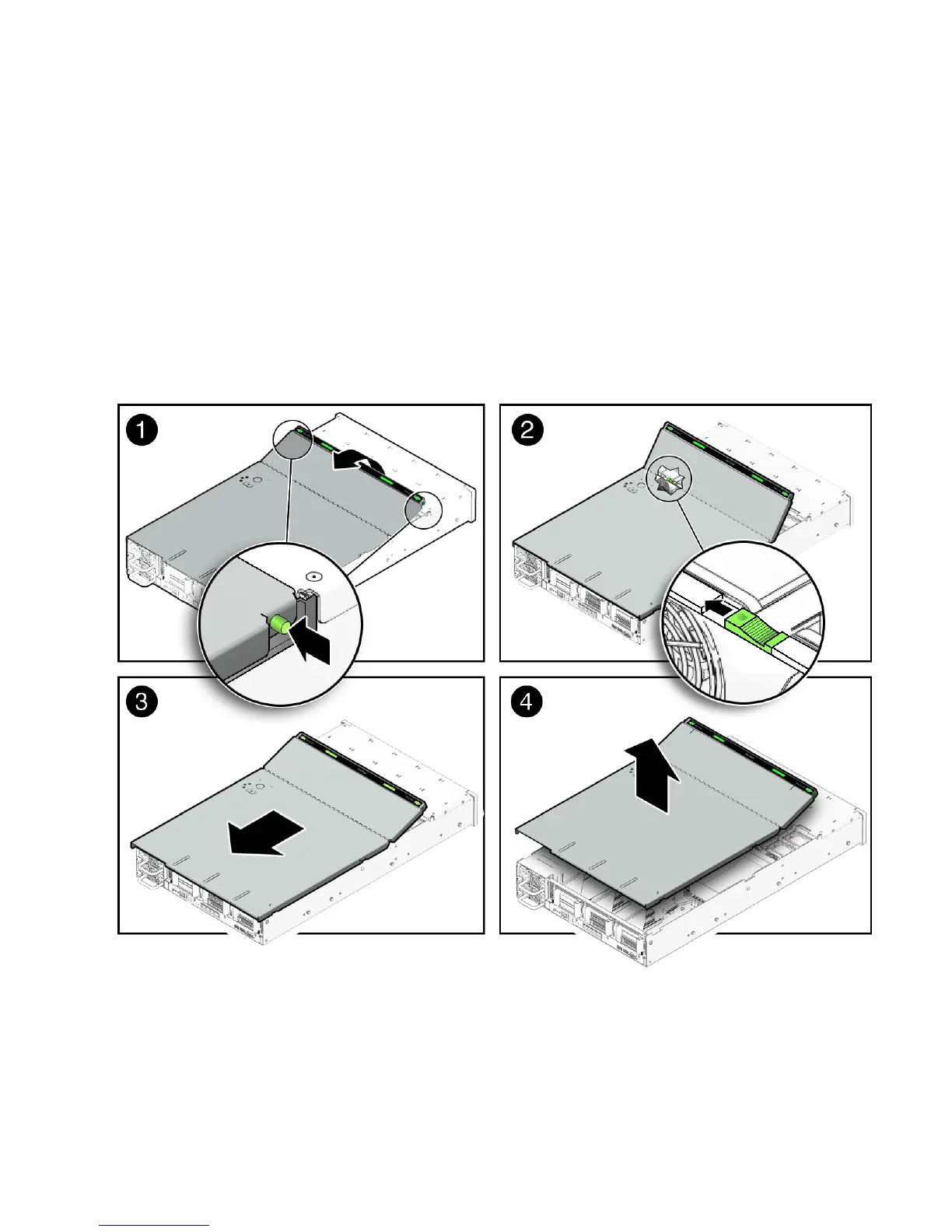

FIGURE 2-2 Removing the Sun Fire X4275 Server Top Cover
3. Release the top cover.
Locate the green tab to the right (facing the front of the server) and to the rear of
the fan modules and slide the tab to the right-most position [2].
