8 Sun Fire X4170, X4270, and X4275 Servers Installation Guide • December 2009
Back Panel
FIGURE 1-5 shows the Sun Fire X4170 Server back panel and describes its components.

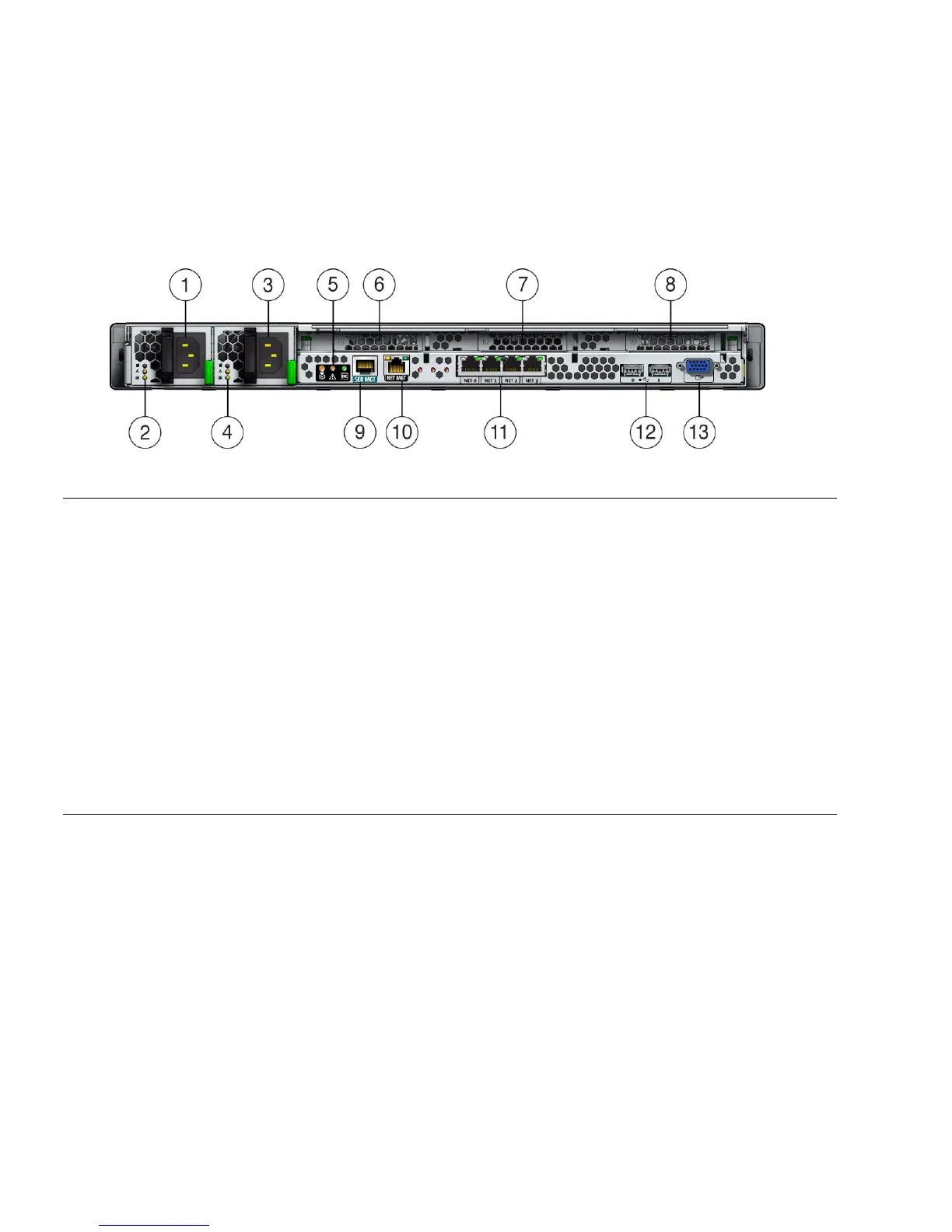

FIGURE 1-5 Sun Fire X4170 Server Back Panel
Figure Leg end
1 Power supply unit 0 connector 7 PCI Express Module slot (1)
2 Power supply unit 0 status indicator LEDs:
Power Supply OK: green
Power Supply Fail: amber
AC OK: green
8 PCI Express Module slot (2)
3 Power supply unit 1 connector 9 Serial management (SER MGT)/RJ-45 serial port
4 Power supply unit 1 status indicator LEDs:
Power Supply OK: green
Power Supply Fail: amber
AC OK: green
10 Service processor (SP) network management (NET
MGT port)
5 System status LEDs:
Power: green
Attention: amber
Locate: white
11 Gigabit Ethernet ports NET 0, 1, 2, 3
6 PCI Express Module slot (0) 12 USB 2.0 ports (0, 1)
13 HD15 video connector (analog VGA)
