Chapter 1 Preparing to Install the Sun Fire X4170, X4270, and X4275 Servers 5
Server Description
This section shows the front and back of the Sun Fire X4170, X4270, and X4275
Servers.
Front Panel Features
FIGURE 1-2 shows the Sun Fire X4170 Server front panel and describes its components.

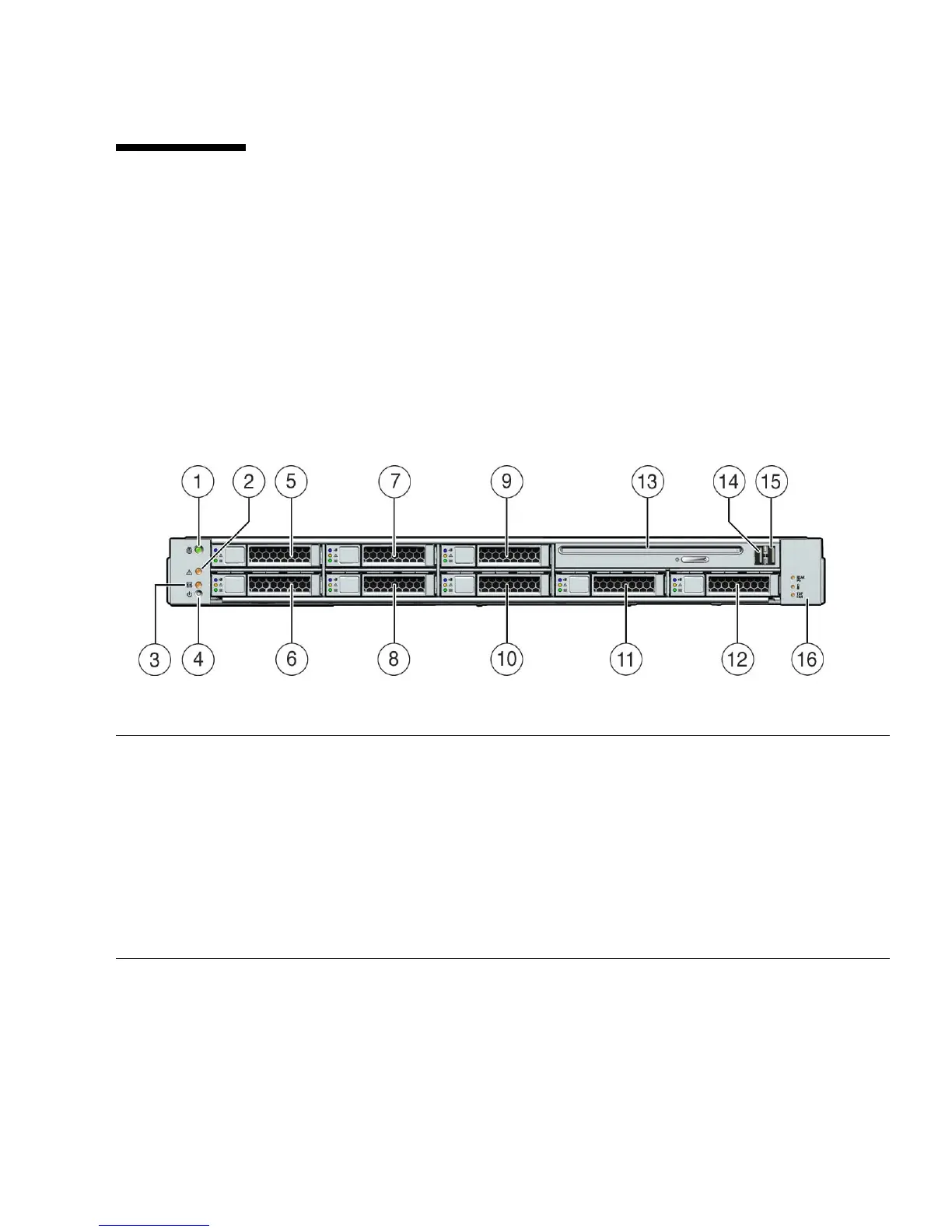

FIGURE 1-2 Sun Fire X4170 Server Front Panel
Figure Leg end
1 Locator LED/Locator button: white 9 Hard disk drive 5 (optional)
2 Service Action Required LED: amber 10 Hard disk drive 4 (optional)
3 Power/OK LED: green 11 Hard disk drive 6 (optional)
4 Power button 12 Hard disk drive 7 (optional)
5 Hard disk drive 1 (optional) 13 DVD drive (optional)
6 Hard disk drive 0 (optional) 14 USB 2.0 connector (2)
7 Hard disk drive 3 (optional) 15 USB 2.0 connector (3)
8 Hard disk drive 2 (optional) 16 Power Supply Service Action Required LED: amber
System Overtemperature LED: amber
Fan Module Service Action Required LED: amber
