6 Sun Fire X4170, X4270, and X4275 Servers Installation Guide • December 2009
FIGURE 1-3 shows the Sun Fire X4270 front panel and describes its components.

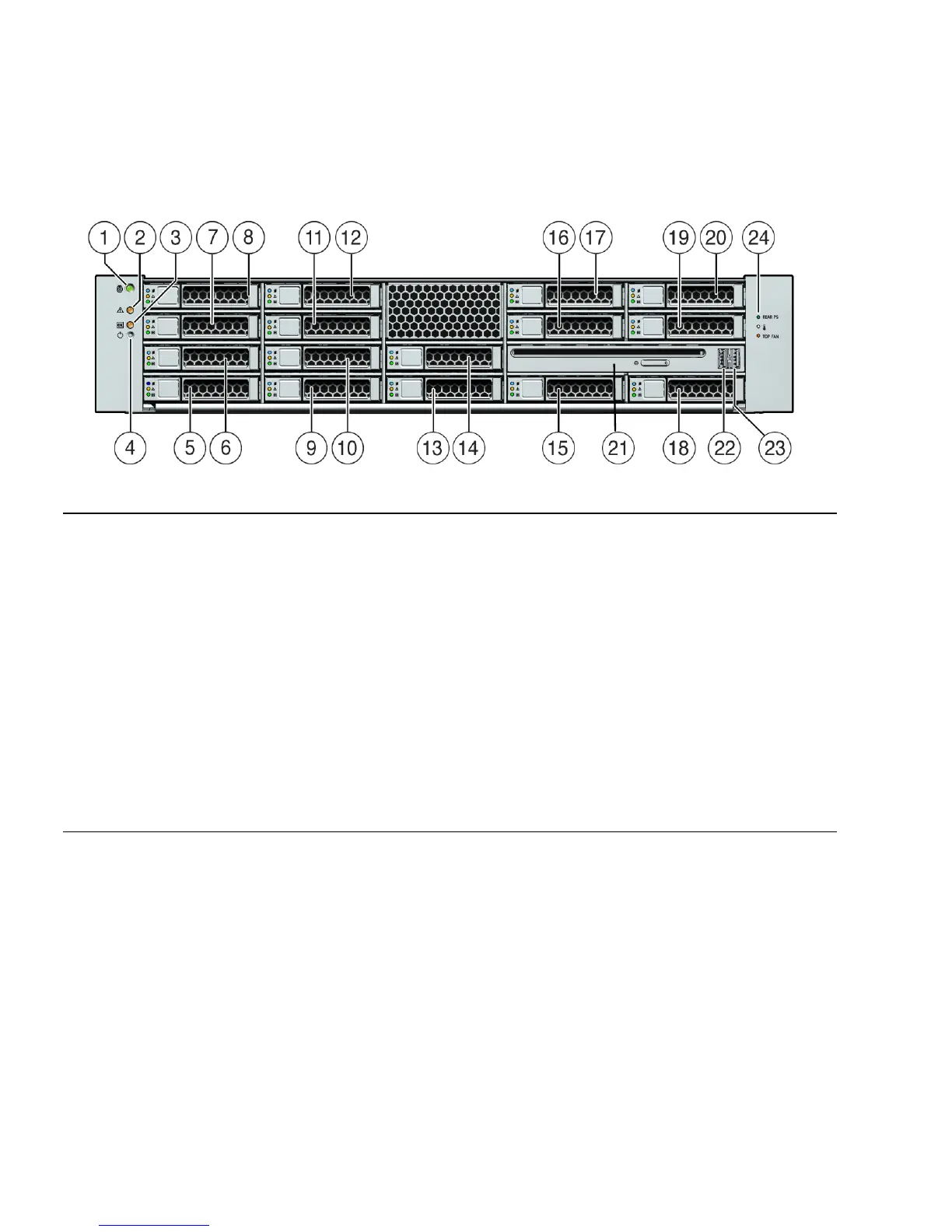

FIGURE 1-3 Sun Fire X4270 Server Front Panel
Figure Leg end
1 Locator LED/Locator button: white 13 Hard disk drive 8 (optional)
2 Service Action Required LED: amber 14 Hard disk drive 9 (optional)
3 Power/OK LED: green 15 Hard disk drive 10 (optional)
4 Power button 16 Hard disk drive 11 (optional)
5 Hard disk drive 0 (optional) 17 Hard disk drive 12 (optional)
6 Hard disk drive 1 (optional) 18 Hard disk drive 13 (optional)
7 Hard disk drive 2 (optional) 19 Hard disk drive 14 (optional)
8 Hard disk drive 3 (optional) 20 Hard disk drive 15 (optional)
9 Hard disk drive 4 (optional) 21 DVD drive (optional)
10 Hard disk drive 5 (optional) 22 USB 2.0 connector (2)
11 Hard disk drive 6 (optional) 23 USB 2.0 connector (3)
12 Hard disk drive 7 (optional) 24 Power Supply Service Action Required LED: amber
System Overtemperature LED: amber
Fan Module Service Action Required LED: amber
