Chapter 3 Installing the Server Into a Rack With Slide-Rails 57

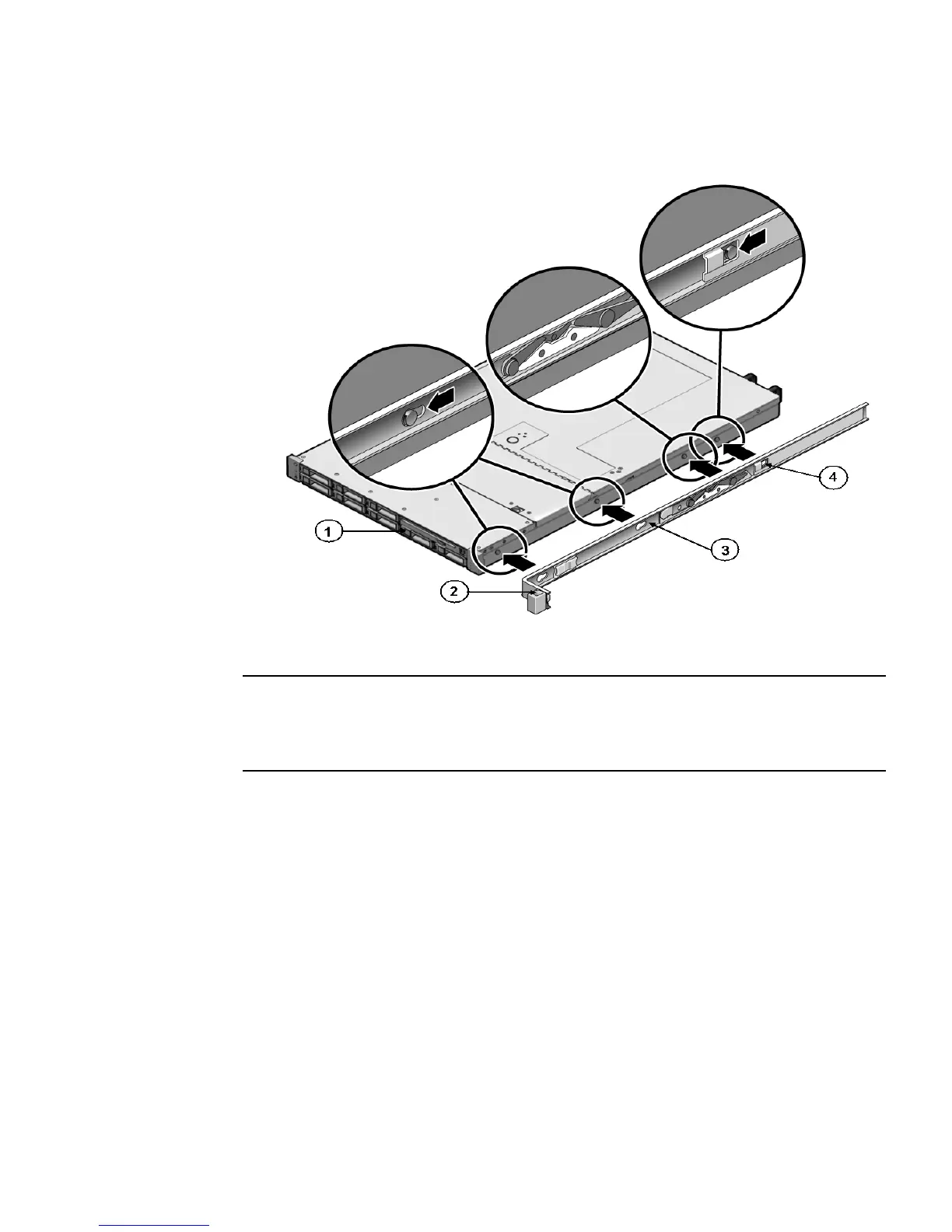

FIGURE 3-2 Aligning the Mounting Bracket With the Server Chassis
2. With the heads of the four chassis locating pins protruding though the four
keyed openings in the mounting bracket, pull the mounting bracket toward the
front of the chassis until the mounting bracket clip locks into place with an
audible click (see
FIGURE 3-2).
3. Verify that the rear locating pin has engaged the mounting bracket clip (see
FIGURE 3-2).
4. Repeat to install the remaining mounting bracket on the other side of the
server.
Figure Leg end
1 Chassis front
2 Slide-rail lock
3 Mounting bracket
4 Mounting bracket clip
