Chapter 3 Installing the Server Into a Rack With Slide-Rails 63

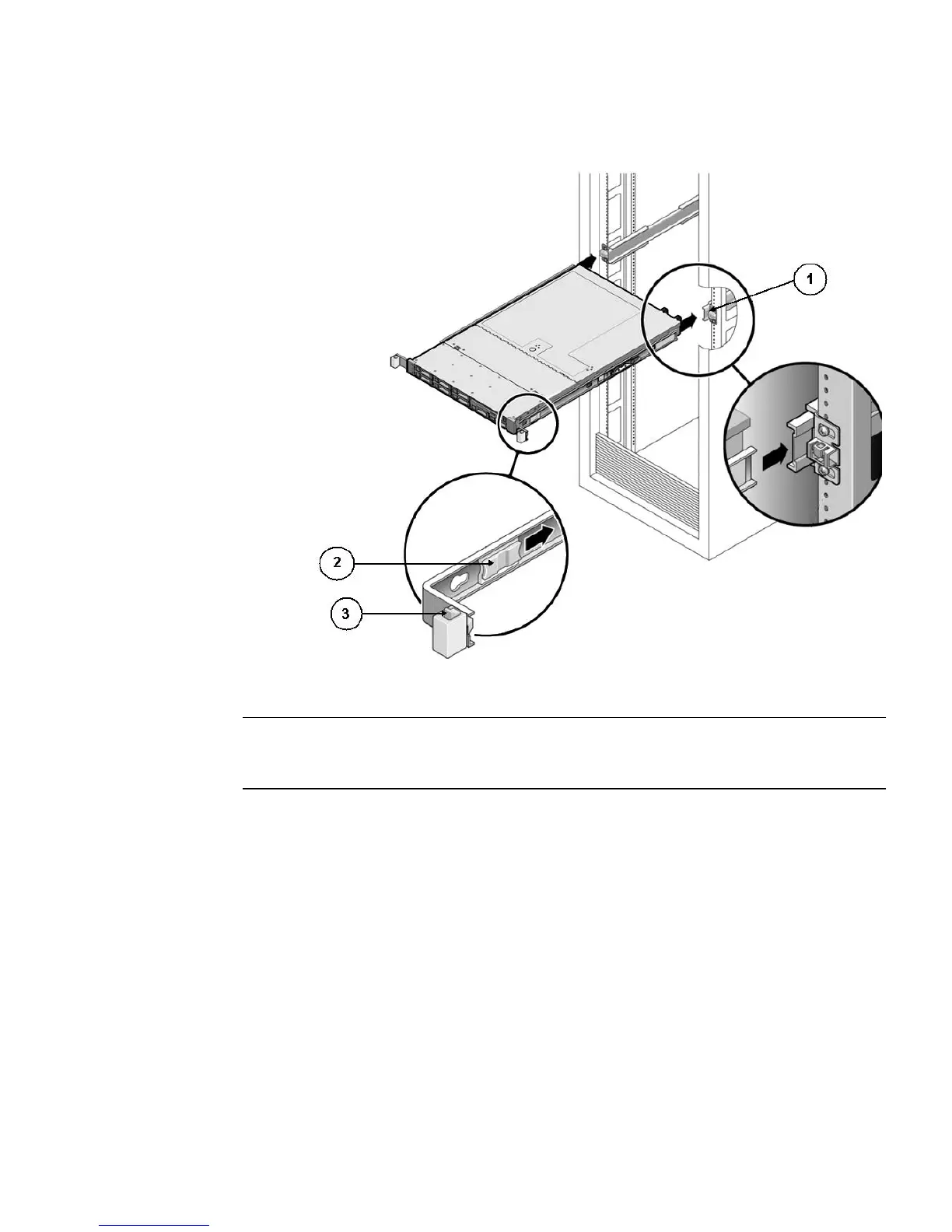

FIGURE 3-6 Inserting the Server With Mounting Brackets Into the Slide-Rails
4. Simultaneously push and hold the slide-rail release buttons on each mounting
bracket while you push the server into the rack (see
FIGURE 3-7). Continue
pushing until the slide-rail locks (on the front of the mounting brackets)
engage the slide-rail assemblies.
You will hear an audible click.
Figure Leg end
1 Inserting mounting bracket into slide rail
1 Sllide-rail release button
1 Slide-rail lock
