66 Sun Fire X4170, X4270, and X4275 Servers Installation Guide • December 2009
4. Attach the CMA rail extension into the left slide-rail until the extension locks
into place with an audible click (see
FIGURE 3-9).

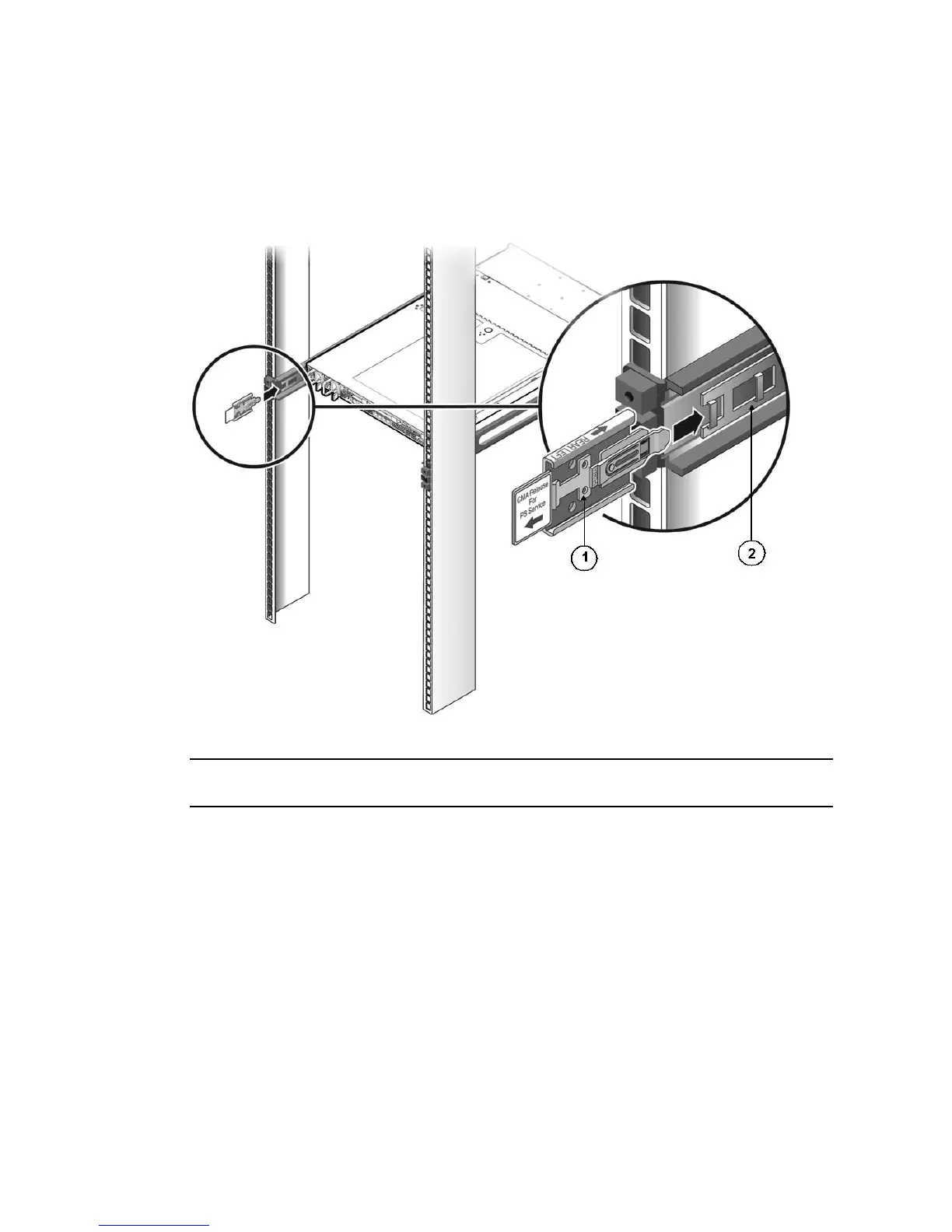

FIGURE 3-9 Inserting the CMA Rail Extension Into the Back of the Left Slide-Rail
Figure Leg end
1 CMA rail extension
2 Left slide-rail
