45

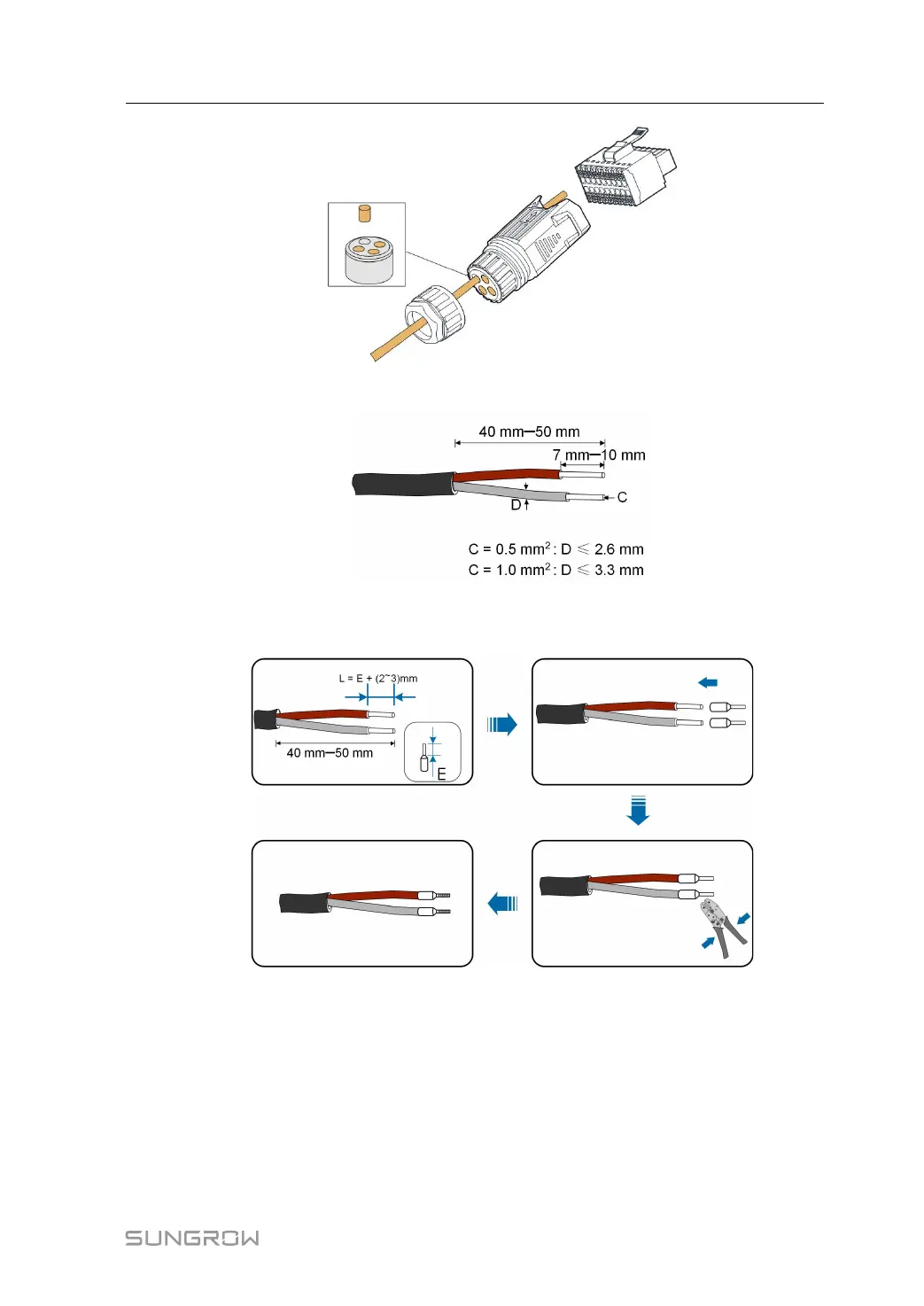

Step 4 Remove the cable jacket and strip the wire insulation.
Step 5 (Optional) When using a multi-core multi-strand wire cable, connect the wire head to
the cord end terminal. In case of single-strand copper wire, skip this step.
Step 6 Plug the wires or terminals into the corresponding terminals as shown in the following
figure.
User Manual 5 Electrical Connection
