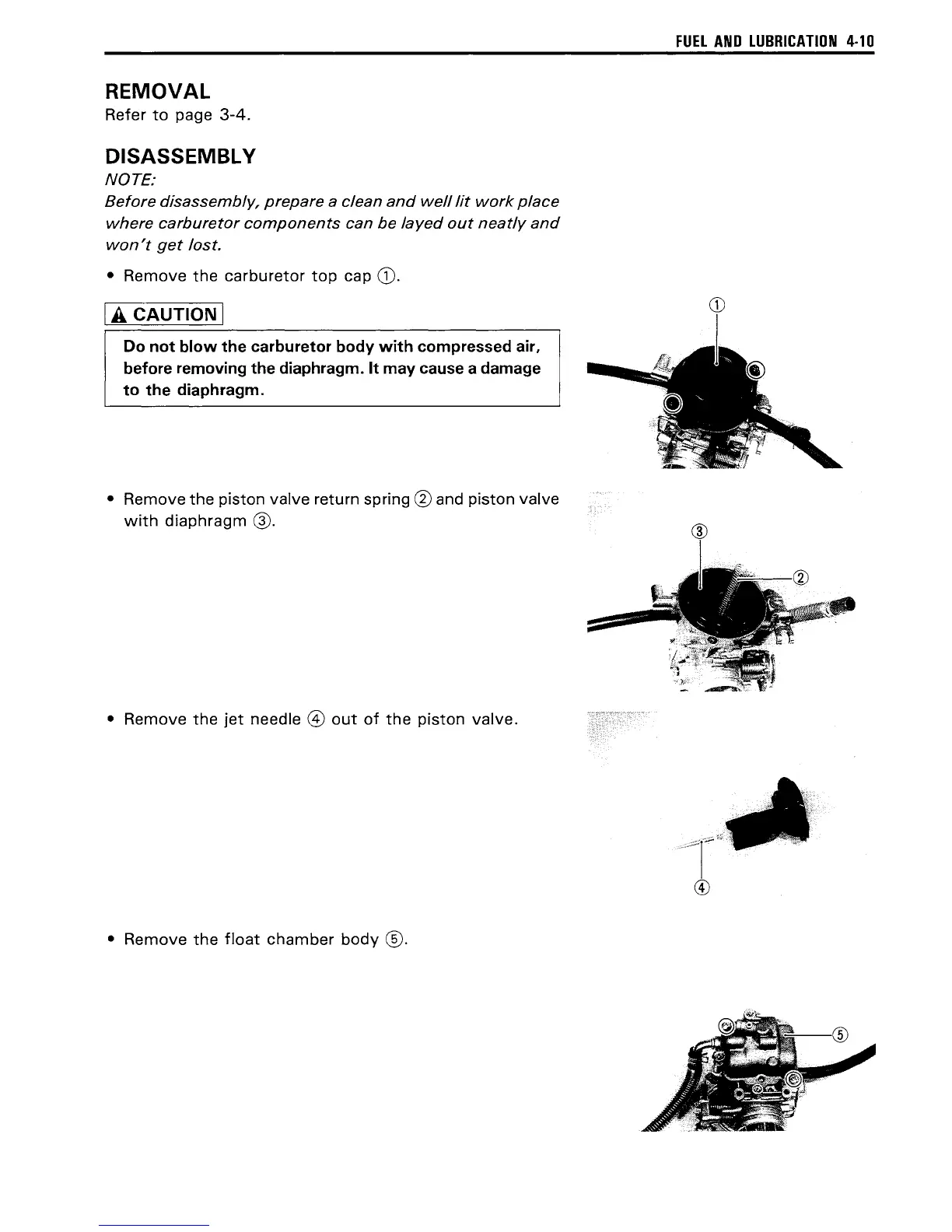

REMOVAL
Refer to page 3-4.
OISASSEMBL Y
NOTE:
Before disassembly, prepare a clean and well lit work place
where carburetor components can be layed out neatly and
won't get lost.
• Remove the carburetor top cap CD.
IA CAUTION I
Do not blow the carburetor body with compressed air,
before removing the
diaphragm. It may cause a damage
to the diaphragm.
• Remove the piston valve return spring @ and piston valve
with diaphragm @.
• Remove the jet needle @ out of the piston valve.
• Remove the float chamber body ®.
FUEL AND LUBRICATION 4·10
