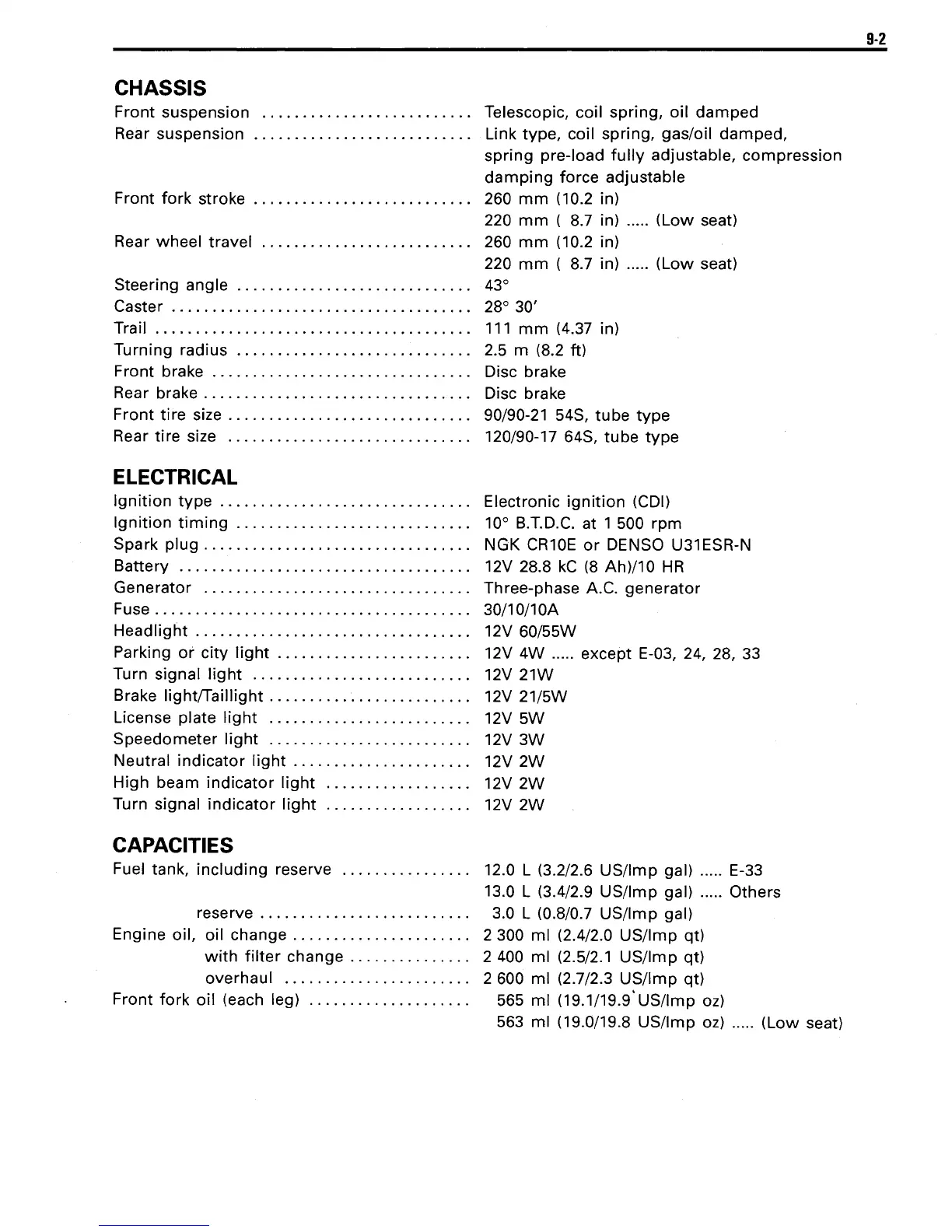

CHASSIS
Front suspension
Rear suspension
.......................... .
Front
fork stroke .......................... .
Telescopic, coil spring, oil damped
Link type, coil spring, gas/oil damped,
spring pre-load fully adjustable, compression
damping force adjustable
260
mm (10.2 in)
220 mm ( 8.7 in) ..... (Low seat)
Rear
wheel travel .......................... 260 mm (10.2 in)
220 mm ( 8.7 in) ..... (Low seat)
Steering
angle ............................. 43°
Caster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 28° 30'
Trail ....................................... 111 mm (4.37 in)
Turning radius
............................. 2.5 m (8.2 tt)
Front brake ................................ Disc brake
Rear
brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. Disc brake
Front
tire size. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 90/90-21 54S, tube type
Rear tire size .............................. 120/90-17 64S, tube type
ELECTRICAL
Ignition type ..... . . . . . . . . . . . . . . . . . . . . . . . . .. Electronic ignition (CDI)
Ignition timing ............................. 10° B.T.D.C. at 1 500 rpm
Spark plug ................................. NGK CR10E or DENSO U31ESR-N
Battery
.................................... 12V 28.8 kC (8 Ah)/10 HR
Generator ................................. Three-phase A.C. generator
Fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 30/10/10A
Headlight. . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .. 12V 60/55W
Parking
or city light. . . . . . . . . . . . . . . . . . . . . . .. 12V 4W ..... except E-03, 24, 28, 33
Turn
signal light ........................... 12V 21W
Brake
light/Taillight . . . . . . . . . . . . . . . . . . . . . . . .. 12V 21/5W
License
plate light ......................... 12V 5W
Speedometer light ......................... 12V 3W
Neutral indicator light. . . . . . . . . . . . . . . . . . . . .. 12V 2W
High beam indicator light .................. 12V 2W
Turn signal indicator light .................. 12V 2W
CAPACITIES
Fuel tank, including reserve
reserve
......................... .
Engine
oil, oil change ..................... .
with filter change .............. .
overhaul ...................... .
Front
fork oil (each leg) ................... .
12.0 L (3.2/2.6 US/Imp gal) ..... E-33
13.0 L (3.4/2.9 US/Imp gal) ..... Others
3.0
L (0.8/0.7 US/Imp gal)
2300 ml (2.4/2.0 US/Imp qt)
2400 ml (2.5/2.1 US/Imp qt)
2600 ml (2.7/2.3 US/Imp qt)
565
ml (19.1/19.9'US/lmp oz)
563 ml (19.0/19.8 US/Imp oz) ..... (Low seat)
