Suzuki DR650SE - Symbols and General Information; Servicing Symbols and Definitions

SYMBOL

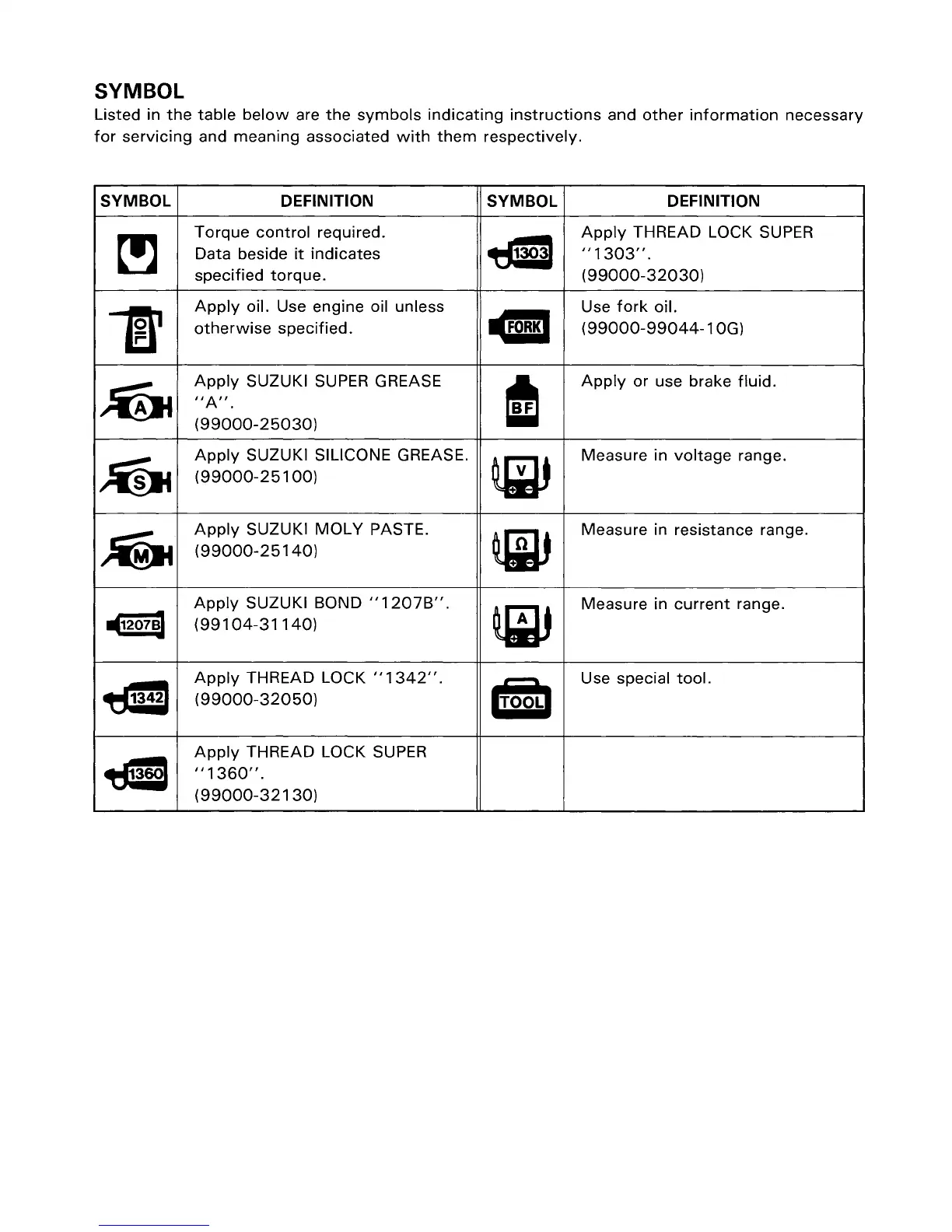

Listed in the table below are the symbols indicating instructions and other information necessary
for servicing and meaning associated with them respectively.
SYMBOL DEFINITION
SYMBOL
DEFINITION
~
Torque control required.
•
Apply THREAD LOCK SUPER
Data beside it indicates "1303" .
specified
torque.
(99000-32030)
1lr
Apply oil. Use engine oil unless
..
Use fork oil.
otherwise specified. (99000-99044-10G)
~
Apply SUZUKI SUPER GREASE
a
Apply or use brake fluid.
IIA'I.
(99000-25030)
~
Apply SUZUKI SILICONE GREASE.
~
Measure in voltage range.
(99000-25100)
~
Apply SUZUKI MOLY PASTE.
~
Measure in resistance range.
(99000-25140)
"12078]
Apply SUZUKI BOND" 1207B".
~
Measure in current range.
(99104-31140)
•
Apply THREAD LOCK" 1342".
'{ooli
Use special tool.
(99000-32050)
tJ
13
681
Apply THREAD LOCK SUPER
"1360" .
(99000-32130)
