3·31 ENGINE

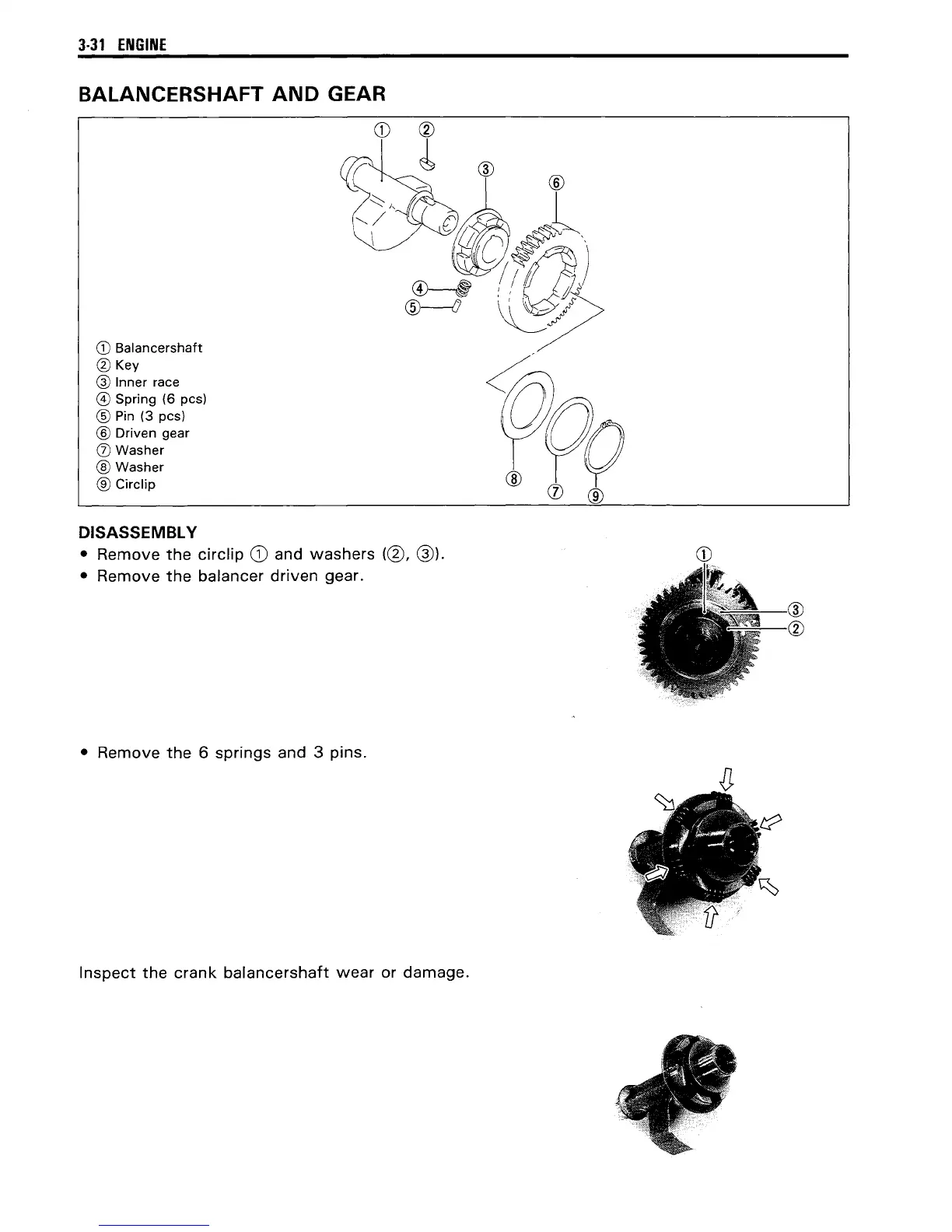

BALANCERSHAFT AND GEAR
G) Balaneershaft
@Key
@ Inner raee
@ Spring (6 pes)
® Pin (3 pes)
® Driven gear
(}) Washer
® Washer
® Circiip
DISASSEMBL Y
• Remove the circlip G) and washers (@, @).
• Remove the balancer driven gear.
• Remove the 6 springs and 3 pins.
Inspect the crank balancershaft wear or damage.
