TRANSMISSION

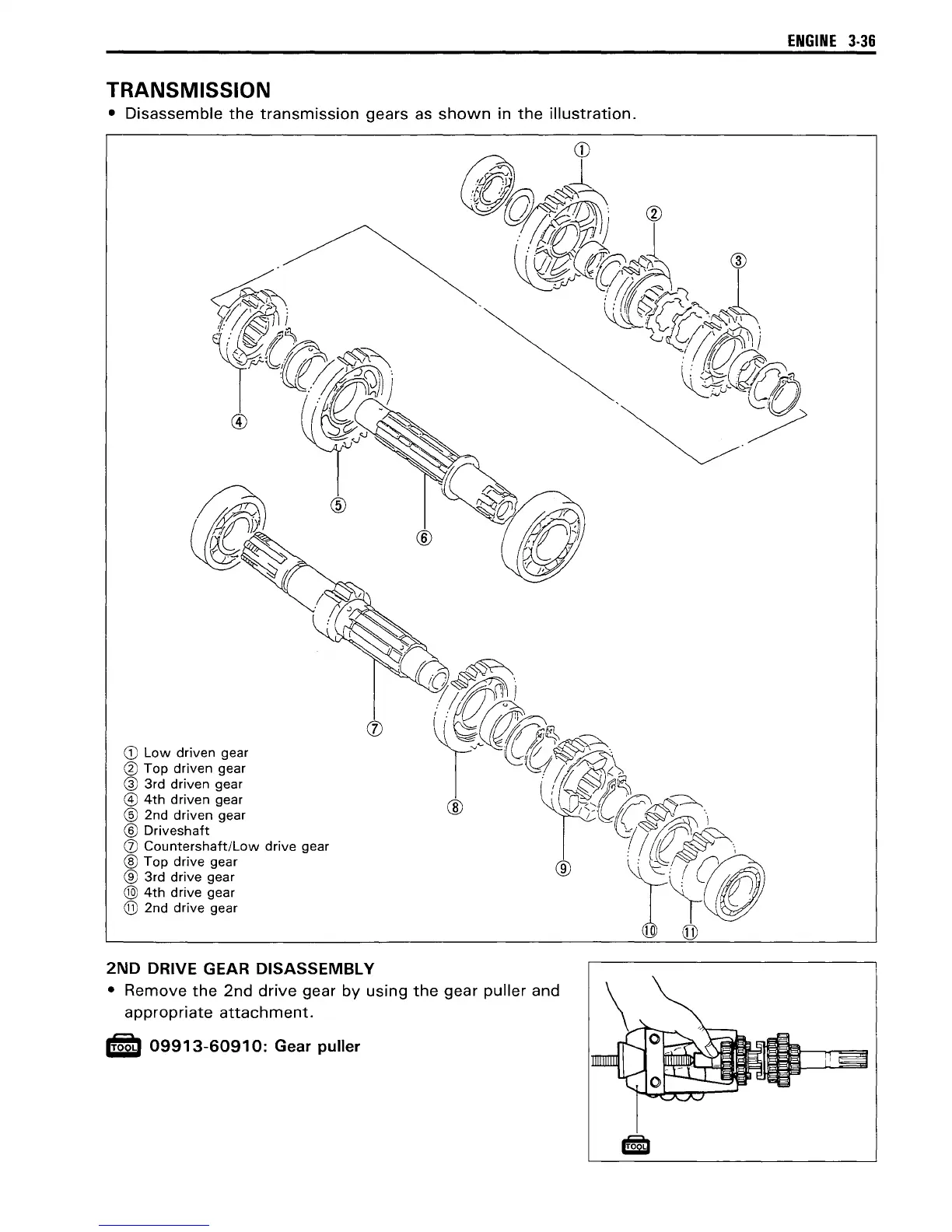

• Disassemble the transmission gears as shown in the illustration.
CD Low driven gear
@ Top driven gear
@ 3rd driven gear
@ 4th driven gear
® 2nd driven gear
® Driveshaft
(j) Countershaft/Low drive gear
® Top drive gear
® 3rd drive gear
@ 4th drive gear
@ 2nd drive gear
2ND DRIVE GEAR DISASSEMBLY
• Remove the 2nd drive gear by using the gear puller and
appropriate attachment .
• gob 09913-60910: Gear puller
ENGINE 3-36
