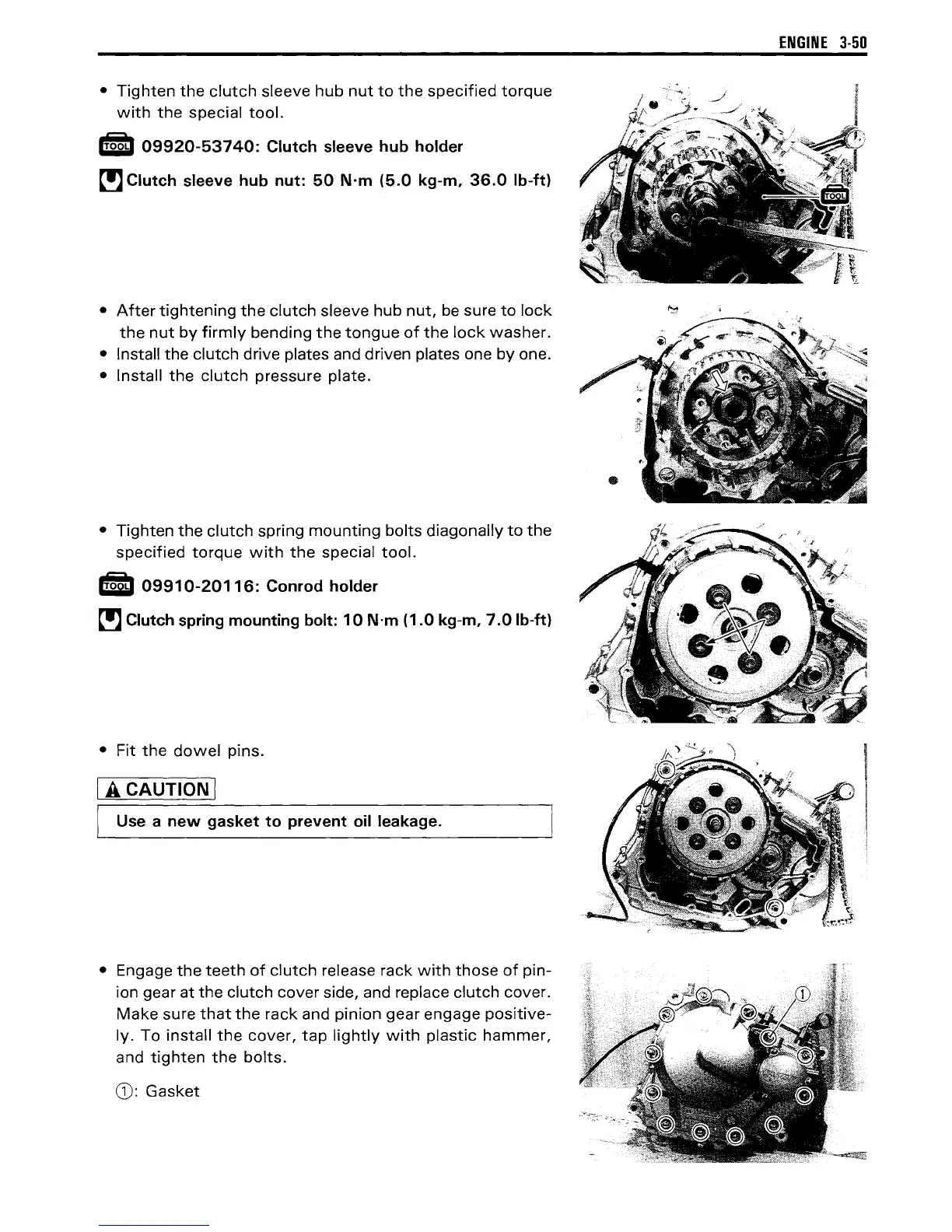

• Tighten the clutch sleeve hub nut to the specified torque
with the special tool.
,roob 09920-53740: Clutch sleeve hub holder
~ Clutch sleeve hub nut: 50 N-m (5.0 kg-m, 36.0 Ib-ftl
• After tightening the clutch sleeve hub nut, be sure to lock
the nut by firmly bending the tongue of the lock washer.
• Install the clutch drive plates and driven plates one by one.
• Install the clutch pressure plate.
• Tighten the clutch spring mounting bolts diagonally to the
specified torque with the special tool.
lib 09910-2011 6: Conrod holder
~ Clutch spring mounting bolt: 10 N'm (1.0 kg-m, 7.0 Ib-ftl
• Fit the dowel pins.
I A CAUTION I
I Use a new gasket to prevent oil leakage.
• Engage the teeth of clutch release rack with those of pin-
ion gear at the clutch cover side, and replace clutch cover.
Make sure that the rack and pinion gear engage positive-
ly. To install the cover, tap lightly with plastic hammer,
and tighten the bolts.
G): Gasket
ENGINE 3-50
