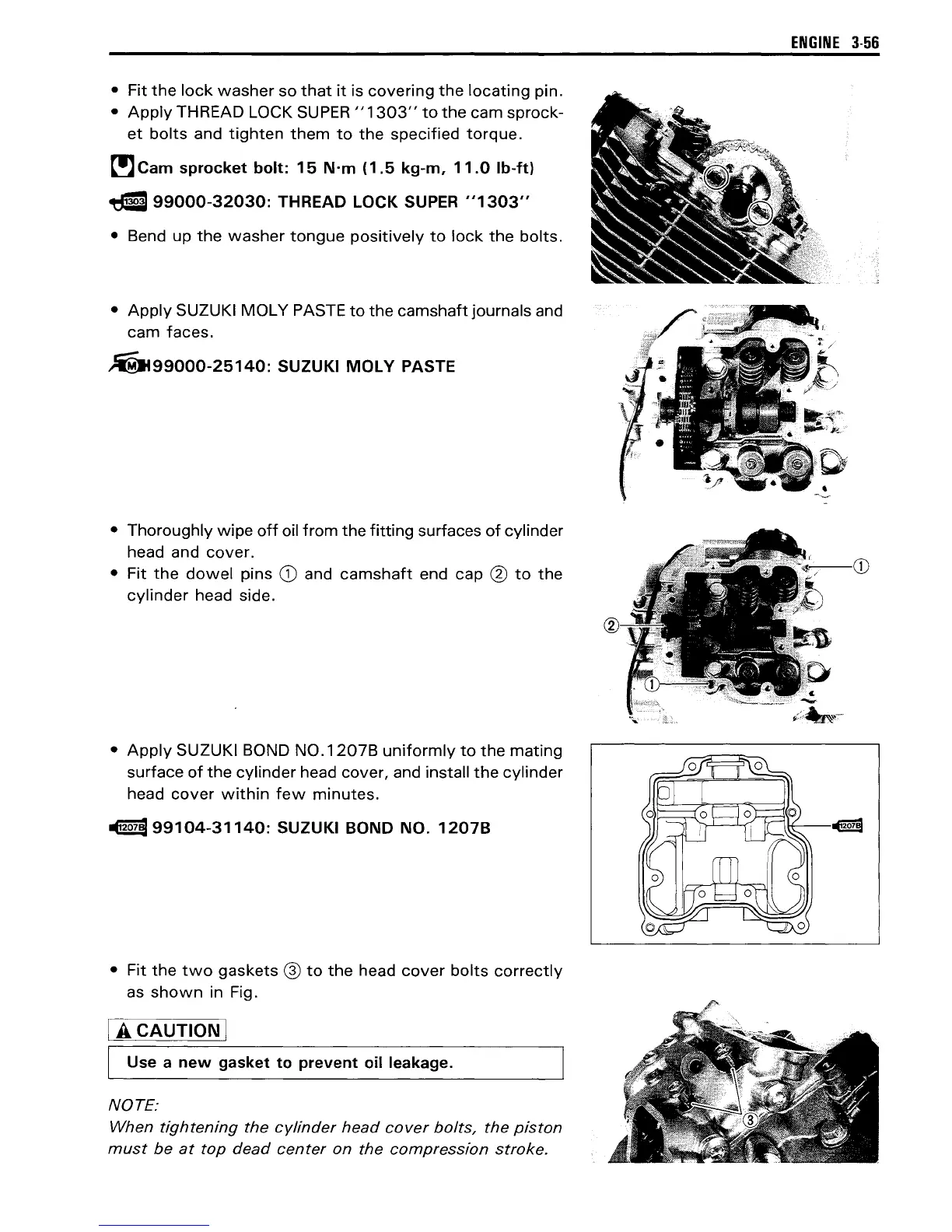

• Fit the lock washer so that it is covering the locating pin.
• Apply THREAD LOCK SUPER" 1303" to the cam sprock-
et bolts and tighten them to the specified torque.
~Cam sprocket bolt: 15 N-m (1.5 kg-m, 11.0 Ib-ft)
.. 99000-32030: THREAD LOCK SUPER "1303"
• Bend up the washer tongue positively to lock the bolts.
• Apply SUZUKI MOLY PASTE to the camshaft journals and
cam faces.
~99000-25140: SUZUKI MOLY PASTE
•
Thoroughly wipe off oil from the fitting surfaces of cylinder
head and
cover.
• Fit the dowel pins CD and camshaft end cap @ to the
cylinder head side.
• Apply SUZUKI BOND NO.1207B uniformly to the mating
surface of the cylinder head cover, and install the cylinder
head
cover within few minutes.
~ 99104-31140: SUZUKI BOND NO. 1207B
• Fit the two gaskets @ to the head cover bolts correctly
as shown in Fig.
I A CAUTION I
[ Use a new gasket to prevent oil leakage.
NOTE:
When tightening the cylinder head cover bolts, the piston
must be at top dead center on the compression stroke.
ENGINE 3-56
