Rear Suspension: 2C-8

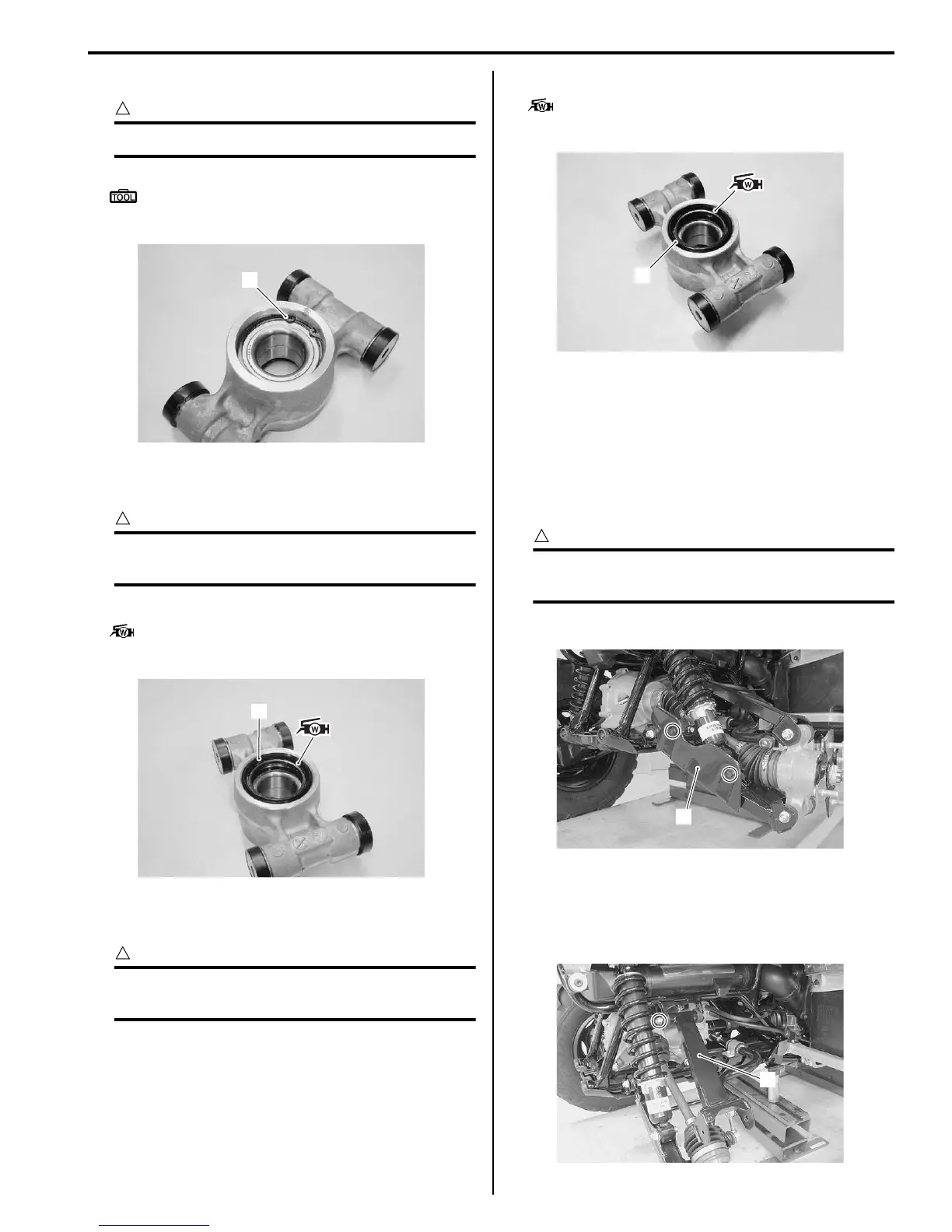

• Install the snap ring (2) with the special tool.
CAUTION
!
Never reuse snap ring (2).
Special tool
: 09900–06108 (Snap ring remover (Close
type))
• Install a new inner dust seal (3) using a suitable size
socket wrench.
CAUTION
!
Replace the inner dust seal (3) with a new
one.
• Apply grease to the lip of inner dust seal (3).
: Grease 99000–25160 (Water resistance
grease or equivalent)
• Install a new outer dust seal (4) using a suitable size
socket wrench.
CAUTION
!
Replace the outer dust seal (4) with a new
one.
• Apply grease to the lip of outer dust seal (4).
: Grease 99000–25160 (Water resistance
grease or equivalent)
Rear Suspension Arm Upper / Lower Removal
and Installation
B931H22306010
Removal
1) Remove the rear wheel assembly. Refer to “Front /
Rear Wheel Removal and Installation: in Section
2D”.
CAUTION
!
Make sure that the vehicle is supported
securely.
2) Remove the rear drive shaft cover (1).
3) Remove the rear suspension knuckle. Refer to “Rear
Wheel Hub / Suspension Knuckle Removal and
Installation (Page 2C-5)”.
4) Remove the rear upper suspension arm (2).
2
I831G1230021-01
3
I831G1230022-01
4
I831G1230023-02
1
I931H1230020-01
2
I931H1230021-01
