Automatic Transmission: 5A-1
Transmission / Transaxle
Automatic Transmission

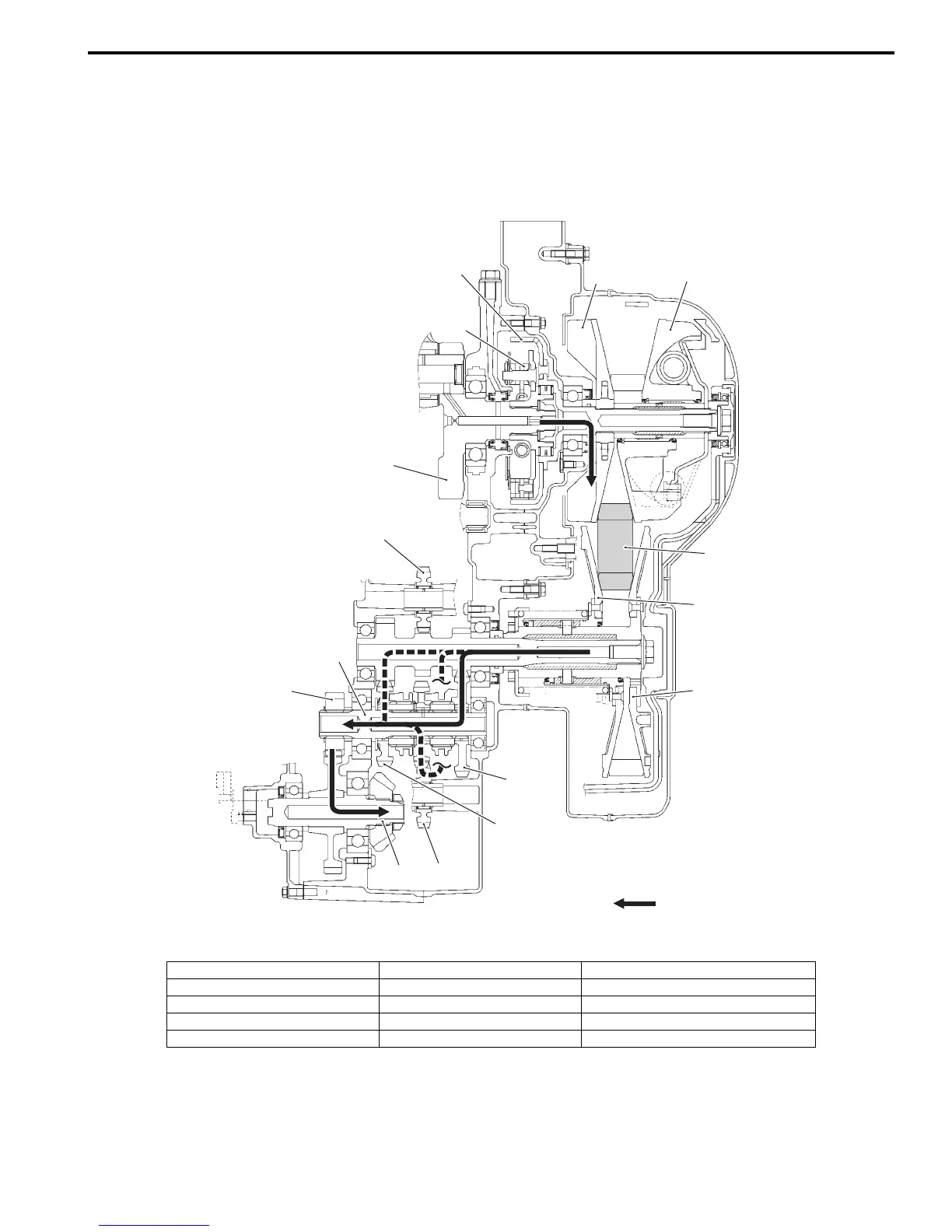

Schematic and Routing Diagram
Drive Train System
B931H25102001
“A”
5
4
6
7
9
3
2
10
1
8
13
12
14
8
11
I931H1510001-03
1. Crankshaft 6. Fixed driven face 11. Low driven gear
2. Movable drive face 7. Transfer input shaft 12. High driven gear
3. Fixed drive face 8. Reverse idle gear 13. Transfer output drive gear
4. V-belt 9. Clutch shoe 14. Transfer output driven gear shaft
5. Movable driven face 10. Clutch housing “A”: Drive train route
