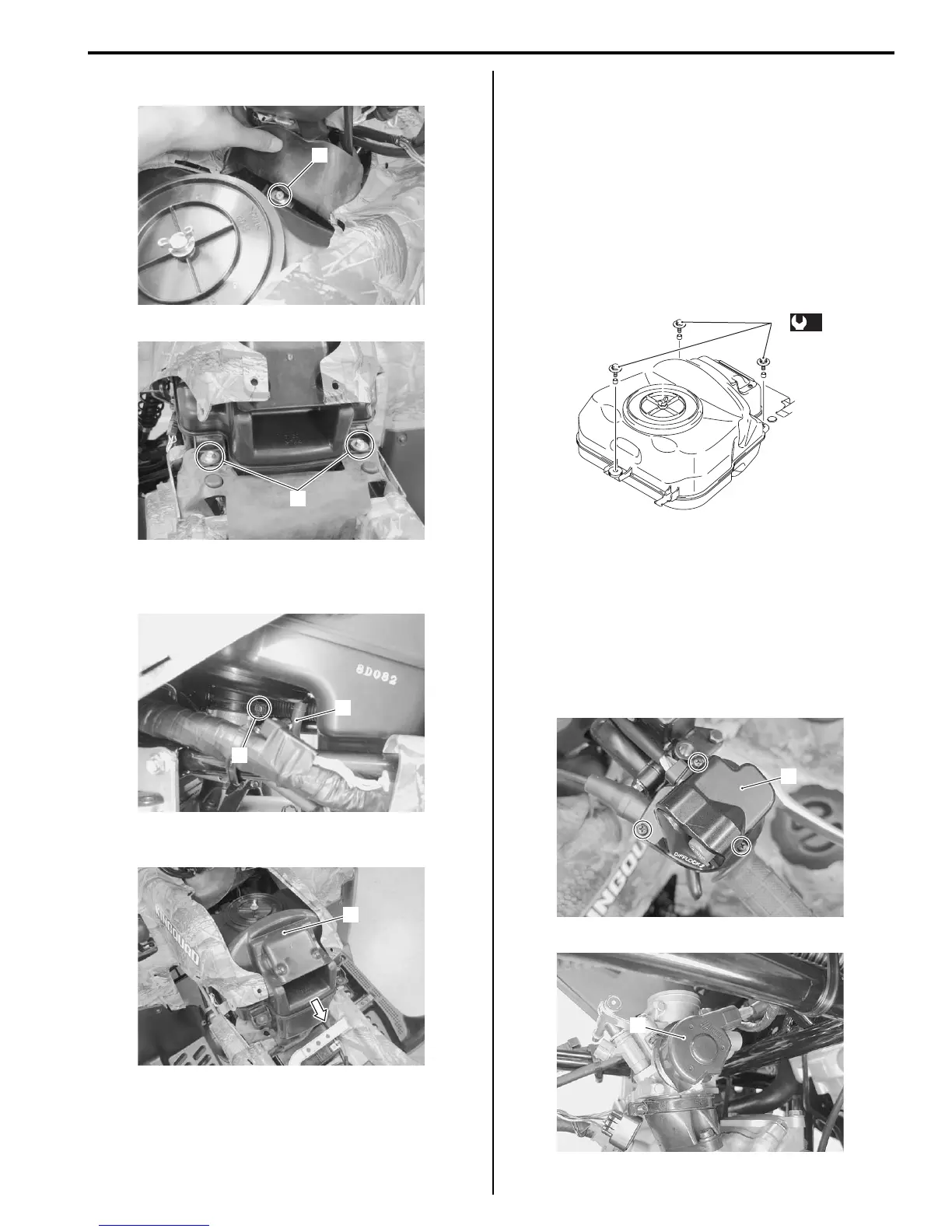

Engine Mechanical: 1D-7
2) Remove the air cleaner box mounting bolts (1).
3) Remove the PCV hose (2) and loosen the throttle
body clamp screw (3).
4) Remove the air cleaner box (4).
Installation
Install the air cleaner box in the reverse order of
removal. Pay attention to the following points:
• Install the air cleaner box (1) and tighten the throttle
body clamp screw. Refer to “Throttle Body
Construction (Page 1D-9)”.
• Tighten the air cleaner box mounting bolts to the
specified torque.
Tightening torque
Air cleaner box mounting bolt (a): 4.5 N·m (0.45
kgf-m, 3.0 lbf-ft)
• Install the removed parts.
Throttle Cable Removal and Installation
B931H21406007
Removal
1) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation (Page 1D-6)”.
2) Remove the right throttle lever case (1) and throttle
cable cover (2).
1
I931H1140006-01
1
I931H1140007-01
3
2
I931H1140008-01
4
I931H1140009-01
(a)
1
I931H1140289-02
1
I931H1140010-01
2
I931H1140011-01
To Next Page
