1H-1 Ignition System:
Engine
Ignition System
General Description

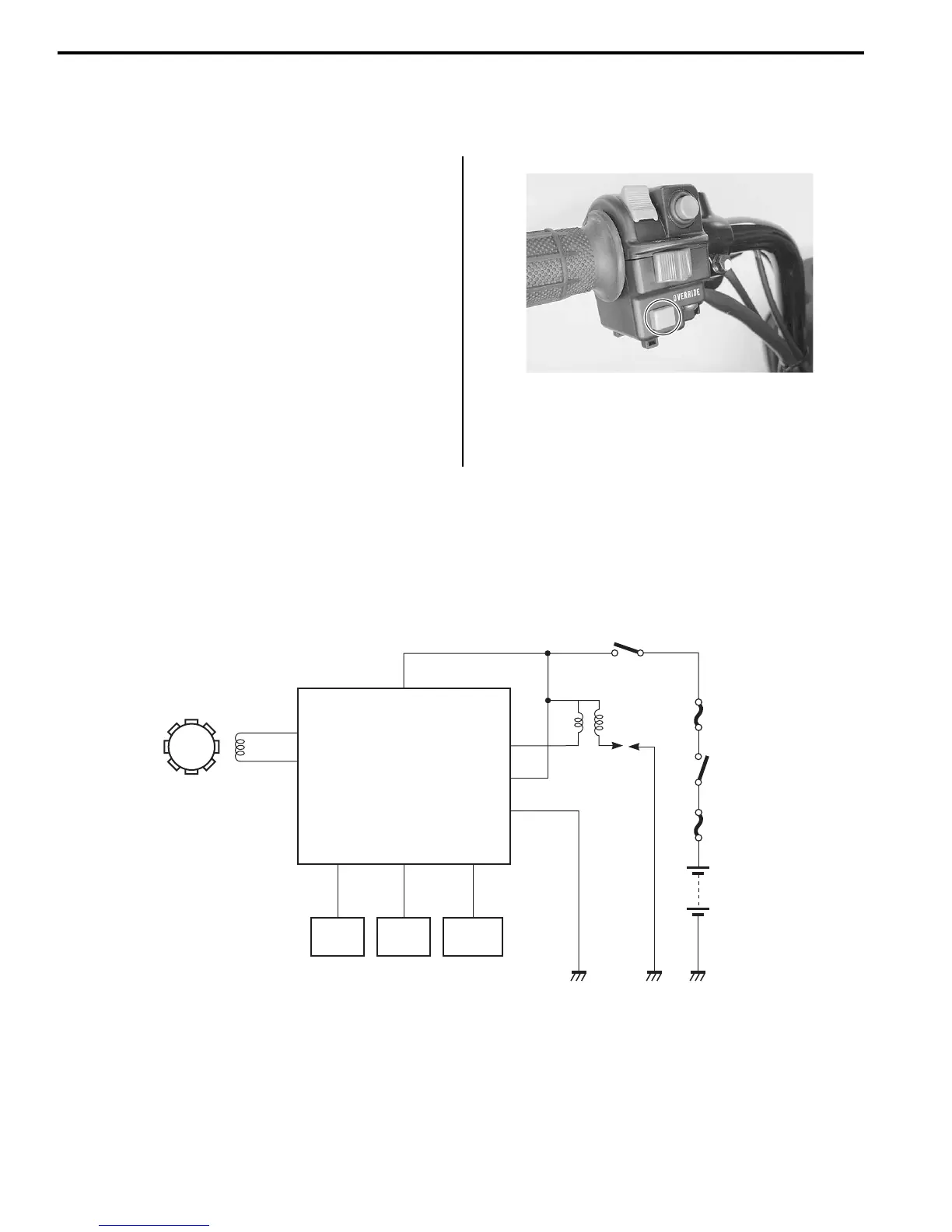

Override Switch Description
B931H21801001
The override switch allows the rider to increase the
power available by overriding the normal speed limiter in
forward Differential Lock or Reverse. For example, the
rider may need to use extra power when stuck in the
mud. To override the normal speed limiter the rider must
push the override button and hold it in. When the switch
button is released, engine speed will once again be
limited by the speed limiter.
In forward Differential Lock made, the override mode can
be used for an indefinite period of time simply by holding
the button in continuously.
Operation
1) Set the diff-lock position or “R” (Reverse) position.
2) Operate the override switch while pushing it.
Schematic and Routing Diagram
Ignition System Diagram
B931H21802001
Refer to “Wire Color Symbols: in Section 0A”.
Ignition System Components Location
B931H21802002
Refer to “Electrical Components Location: in Section 0A”.
I931H1180001-01
CKP
sensor
TP
sensor
ECT
sensor
GP
switch
Engine stop switch
Fuse
Fuse
Ignition
switch
Ignition
coil
Battery
ECM
I831G1180004-04
