3C-16 Transfer:
Tightening Torque Specifications
B931H23307002
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List: in Section 0C”.
Special Tools and Equipment
Recommended Service Material
B931H23308001
NOTE
Required service material is also described in the following.
“Transfer Components (Page 3C-2)”
“Gearshift Cam Components (Page 3C-9)”

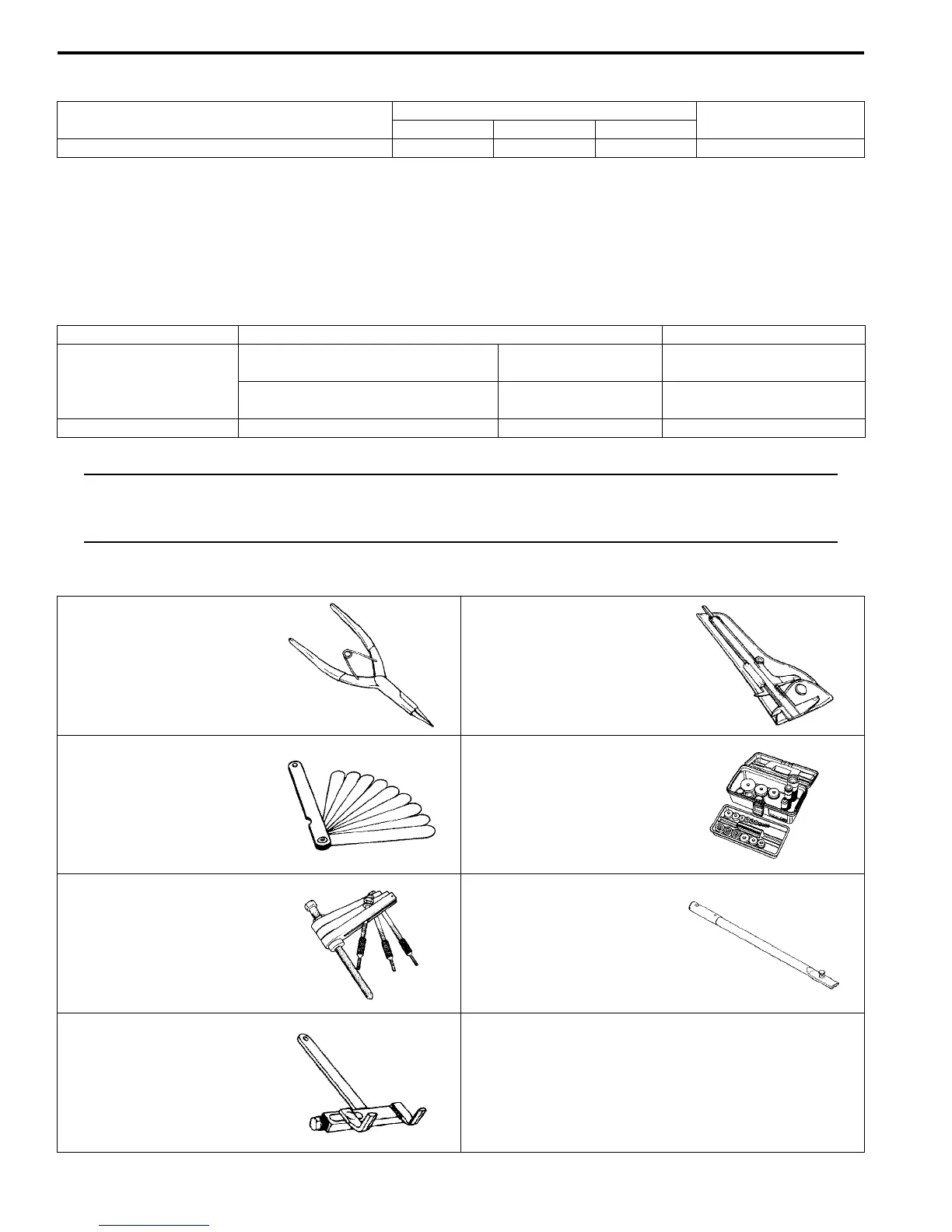

Special Tool
B931H23308002
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Rear output shaft drive bevel gear nut 100 10.0 72.5 )(Page 3C-4)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 3C-12)
Water resistance grease or
equivalent
P/No.: 99000–25160 )(Page 3C-15)
Molybdenum oil MOLYBDENUM OIL SOLUTION — )(Page 3C-7)
09900–06107 09900–20102
Snap ring remover (Open
type)
Vernier calipers (200 mm)
)(Page 3C-10) /
)(Page 3C-11) /
)(Page 3C-13)
)(Page 3C-8) / )(Page 3C-
8)
09900–20803 09913–70210
Thickness gauge Bearing installer set (10 –
75)
)(Page 3C-8) )(Page 3C-15)
09920–13120 09920–31020
Crankshaft remover Extension handle
)(Page 3C-3) )(Page 3C-4)
09920–53740
Clutch sleeve hub holder
)(Page 3C-4)
