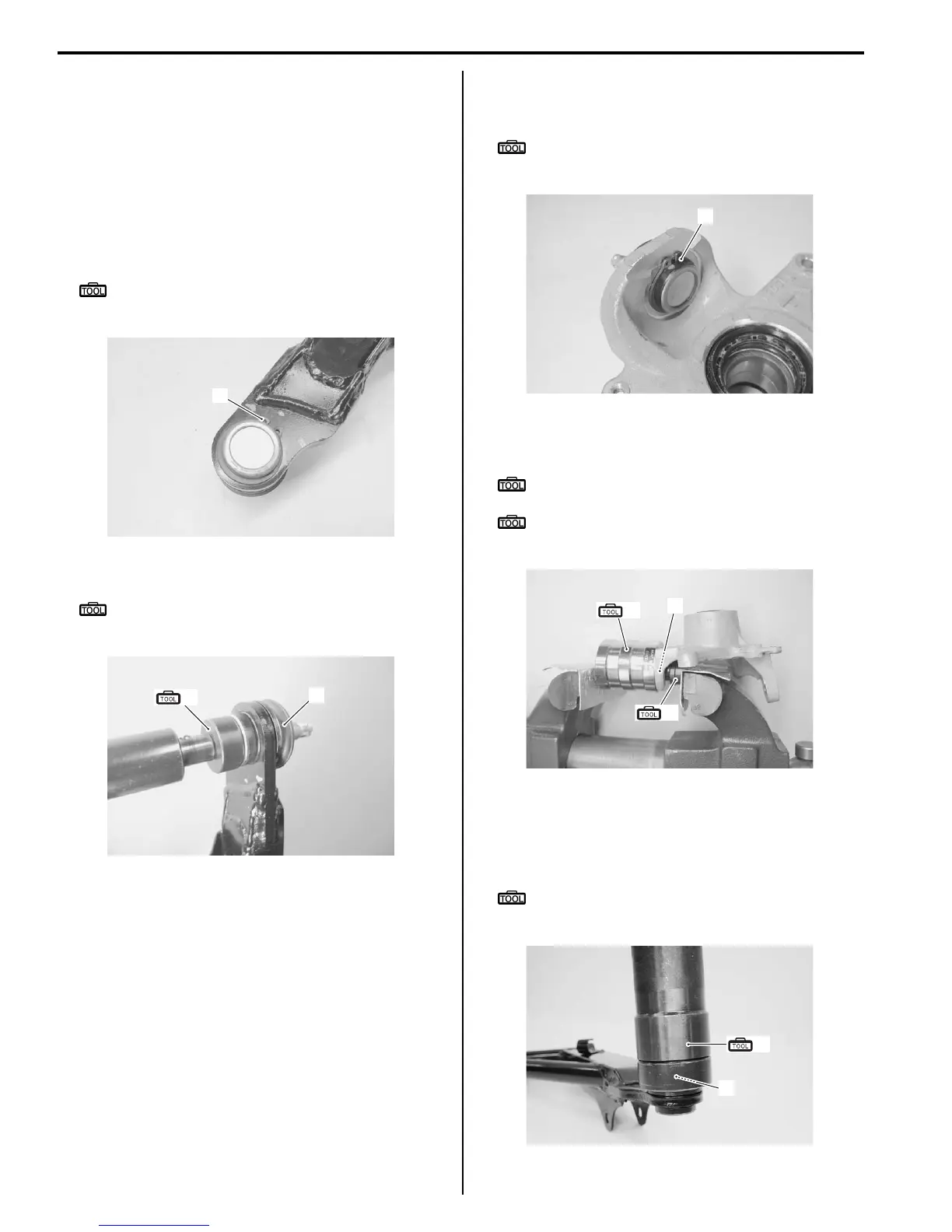

2B-11 Front Suspension:
Steering Knuckle End Removal and Installation
B931H22206012
Refer to “Front Wheel Hub / Steering Knuckle Removal
and Installation (Page 2B-4)” and “Front Suspension
Upper / Lower Arm Removal and Installation (Page 2B-
9)”.
Removal
Upper
• Remove the snap ring (1) with the special tool.
Special tool
: 09900–06107 (Snap ring remover (Open
type))
• Remove the knuckle end (2) with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set (10 –
75))
Lower
• Remove the snap ring (1) with the special tool.
Special tool
: 09900–06107 (Snap ring remover (Open
type))
• Remove the front lower knuckle end (2) with the
special tools and vise as shown in the figure.
Special tool
(A): 09913–70210 (Bearing installer set (10 –
75))
(B): 09941–53610 (Front fork oil seal
hammer)
Installation
Upper
• Install the knuckle end (1) with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set (10 –
75))
1
I931H1220036-01
2
(A)
I931H1220037-01
1
I931H1220038-01
2
(A)
(B)
I931H1220039-01
1
(A)
I831G1220045-01
To Next Page
