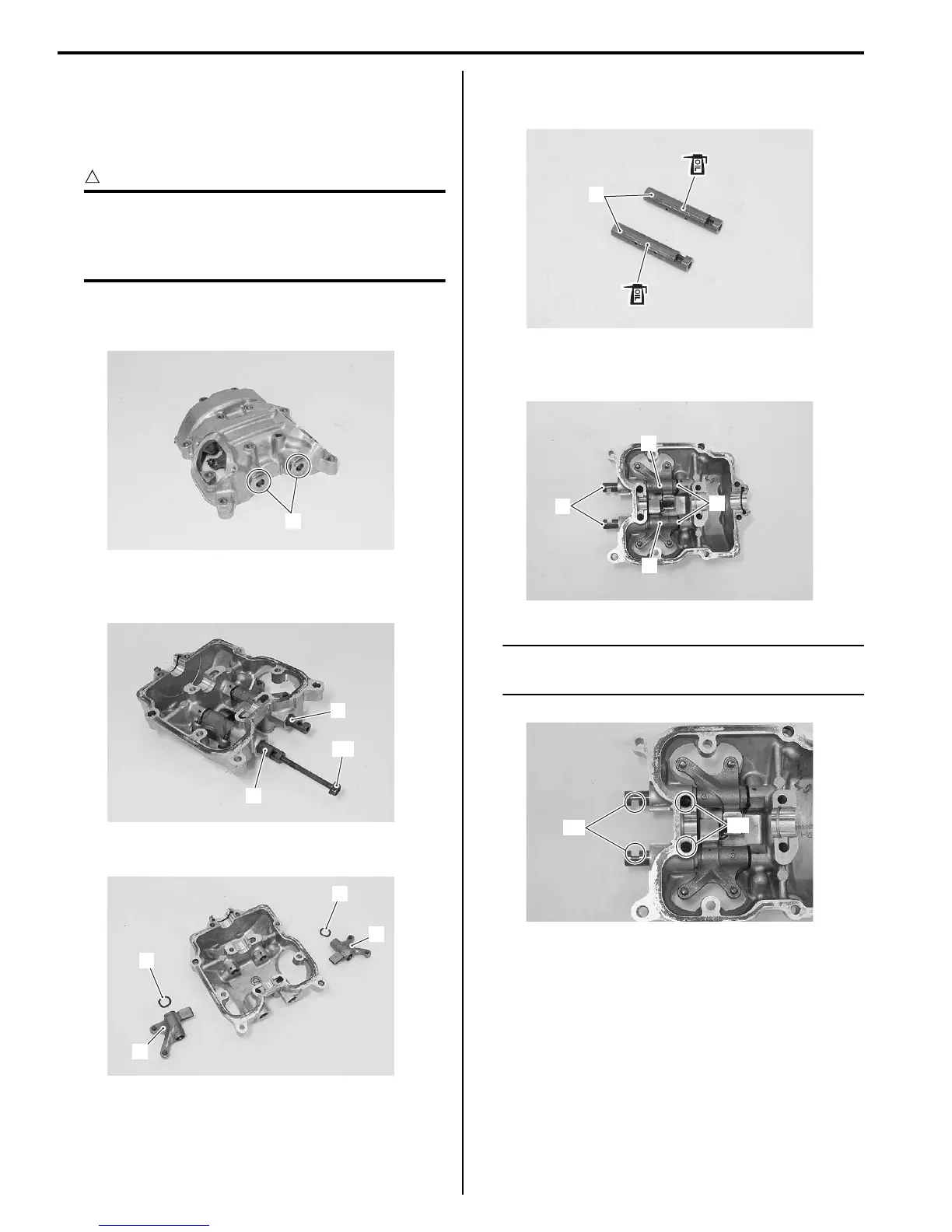

1D-36 Engine Mechanical:
Cylinder Head Cover Disassembly and
Assembly
B931H21406028
Refer to “Engine Top Side Disassembly (Page 1D-18)”.
Refer to “Engine Top Side Assembly (Page 1D-22)”.
CAUTION
!
Identify the position of each removed part.
Organize the parts in their respective groups
(i.e., intake, exhaust) so that they can be
installed in their original positions.
Disassembly
1) Remove the rocker arm shaft bolts (1).
2) Remove the rocker arm shaft (2) using 6 mm bolt
“A”.
3) Remove each rocker arm (3) and wave washer (4).
Assembly
1) Apply engine oil to the rocker arm shafts (1).
2) Install each wave washer (2), rocker arm (3) and
rocker arm shaft (1).
NOTE
Align the rocker arm shaft grooves “A” with
the cylinder head cover holes “B”.
1
I931H1140136-01
2
2
“A”
I931H1140137-01
4
3
4
3
I931H1140138-01
1
I931H1140139-01
1
2
3
3
I931H1140140-01
“A”
“B”
I931H1140142-01
To Next Page
