Starting System: 1I-6

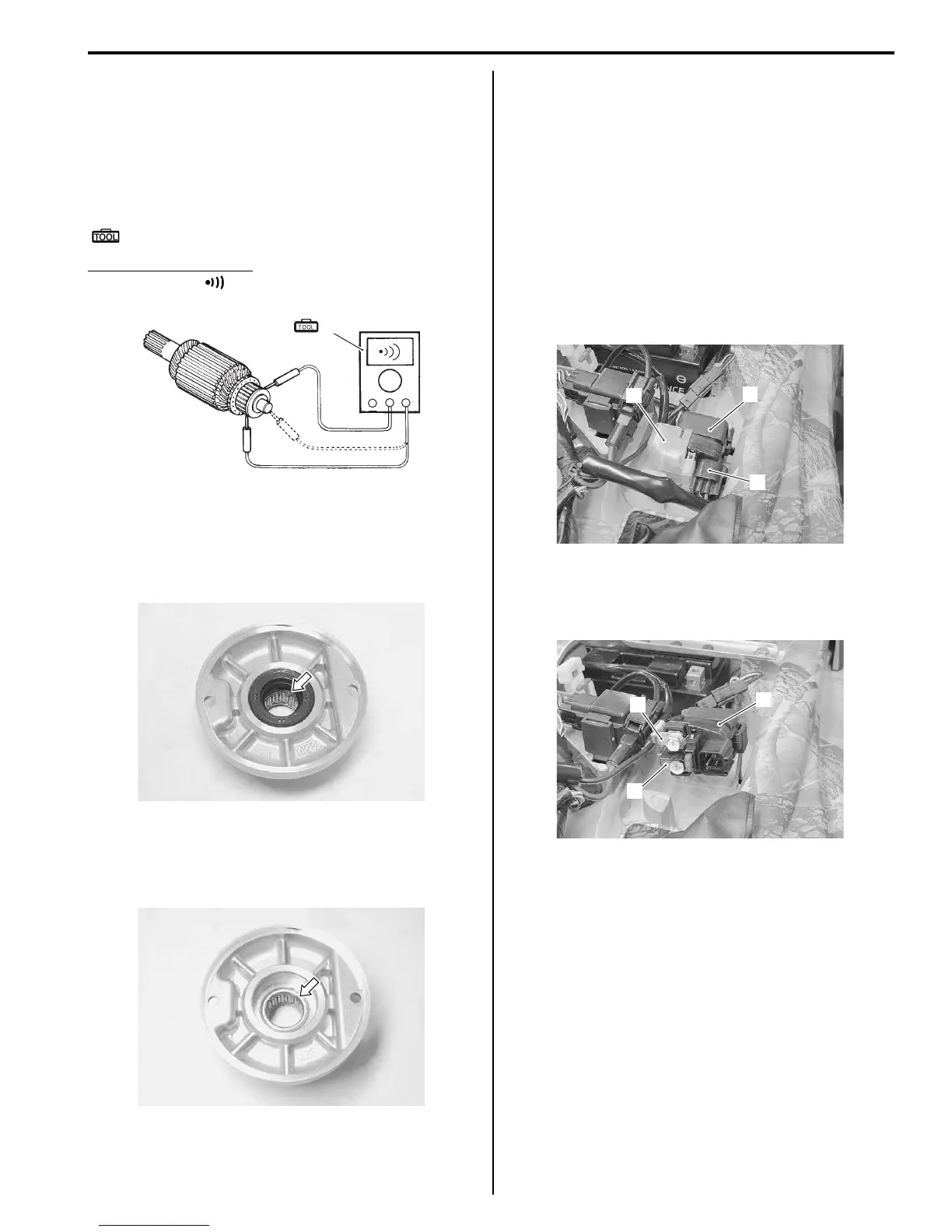

Armature Coil

Measure for continuity between each segment. Measure

for continuity between each segment and the armature

shaft.

If there is no continuity between the segments or there is

continuity between the segments and shaft, replace the

armature with a new one.

Special tool

(A): 09900–25008 (Multi-circuit tester set)

Tester knob indication

Continuity set ( )

Oil Seal

Check the seal lip for damage. If any damage is found,

replace the housing end (Inside).

Bearing

Check the bearing of housing end for damage.

If any damage is found, replace the housing end.

Starter Relay Removal and Installation

B931H21906005

Refer to “Electrical Components Location: in Section

0A”.

Removal

1) Turn the ignition switch OFF position.

2) Remove the seat. Refer to “Seat Removal and

Installation: in Section 9D”.

3) Disconnect the battery (–) lead wire from the battery.

4) Pull the starter relay (1).

5) Disconnect the starter relay coupler (2) and remove

the starter relay cover (3).

6) Disconnect the starter motor lead wire (4) and

battery (+) lead wire (5).

7) Remove the starter relay (1).

Installation

Install the starter relay in the reverse order of removal.

(A)

I649G1190017-03

I931H1190010-01

I931H1190011-01

I931H1190012-01

I931H1190013-01
