9E-4 Body Structure:
Installation
Install the front carrier in the reverse order of removal.
Pay attention to the following point:
• Apply thread lock to the front carrier mounting bolts.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
Rear Carrier Removal and Installation
B931H29506006
Removal

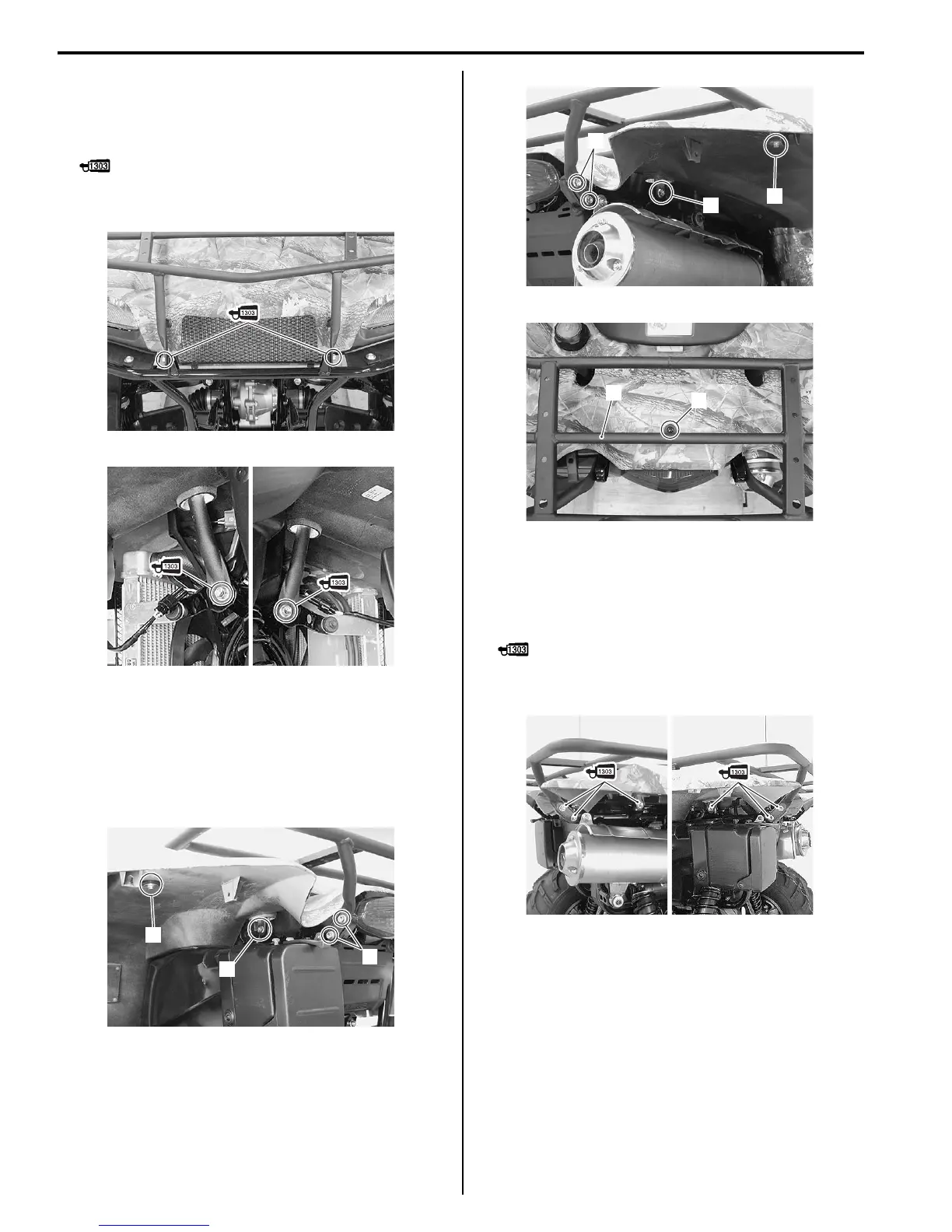

1) Remove the rear carrier (1) by removing the bolts (2)
and screw (3).
Installation
Install the rear carrier in the reverse order of removal.
Pay attention to the following point:
• Apply thread lock to the rear carrier mounting bolts.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
I931H1950007-02
I931H1950008-01
2
2
2
I931H1950009-01
2
22
2
I931H1950010-01
1
3
I931H1950011-01
I931H1950012-01
