Combination Meter / Fuel Meter / Horn: 9C-2
Repair Instructions

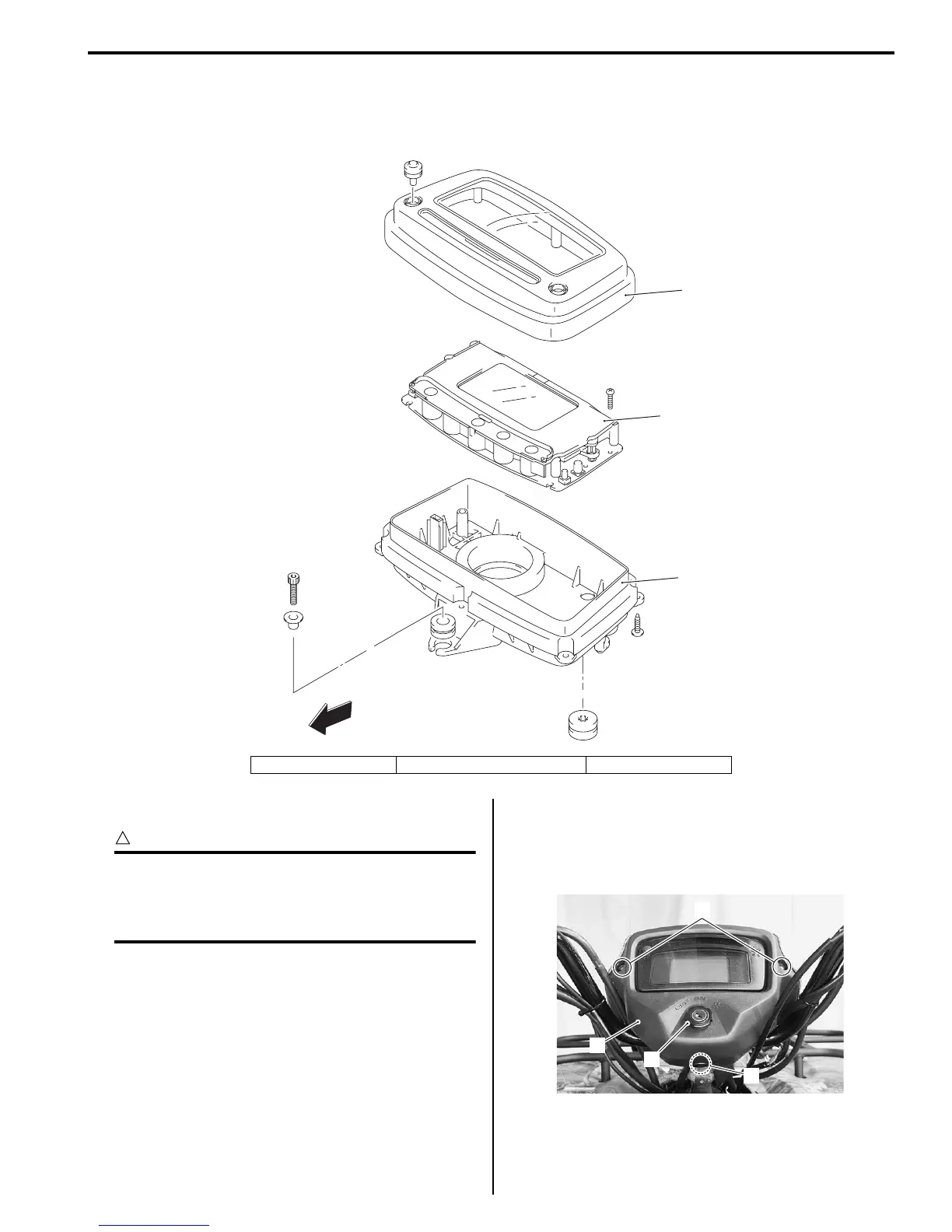

Combination Meter Components
B931H29306001
Combination Meter Removal and Installation
B931H29306002
CAUTION
!
When disconnecting and reconnecting the
combination meter coupler, make sure to
turn OFF the ignition switch, or electronic
parts may get damaged.
Removal
1) Remove the combination meter cover (1) by
removing the screws (2), fastener (3) and ignition
switch ring nut (4).
FWD
FWD
1
2
3
I931H1930019-01
1. Upper case 2. Combination meter 3. Lower case
2
1
4
3
I931H1930002-01
