9A-7 Wiring Systems:
Specifications
Service Data
B931H2910S001
Electrical
Unit: mm
Tightening Torque Specifications
B931H2910S002
NOTE
The specified tightening torque is described in the following.
“Wiring Harness Routing Diagram (Page 9A-4)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List: in Section 0C”.

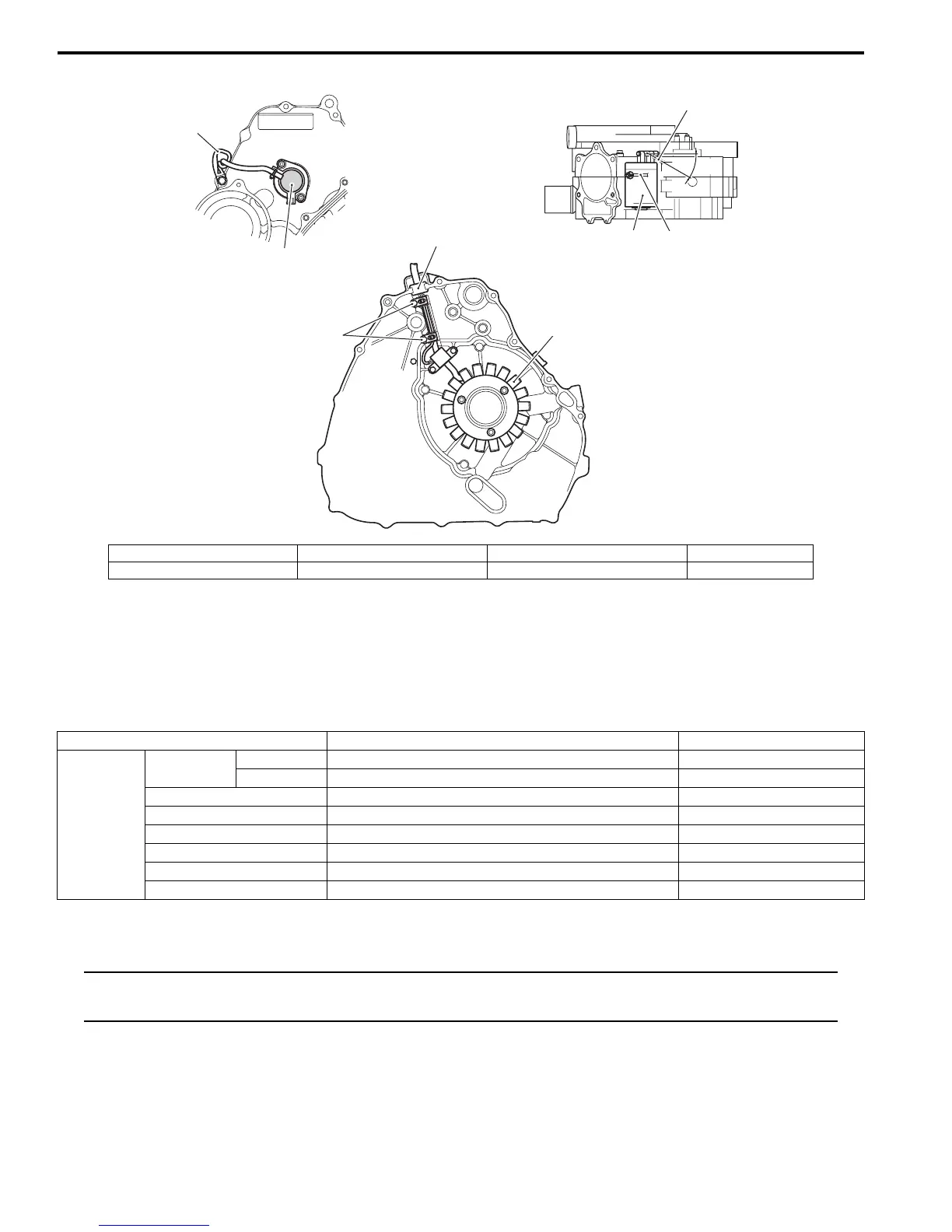

1
2
3
“a”
4
5
6
7
7
I931H1910908-01
1. Starter motor 3. Generator stator 5. Starter motor lead wire 7. Clamp
2. Gear position switch 4. Ground wire 6. Grommet “a”: 30°
Item Specification Note
Fuse size
Headlight
HI 10 A
LO 10 A
Fuel 10 A
Ignition 15 A
Power source 10 A
Fan 15 A
Main 30 A
EPS 40 A
