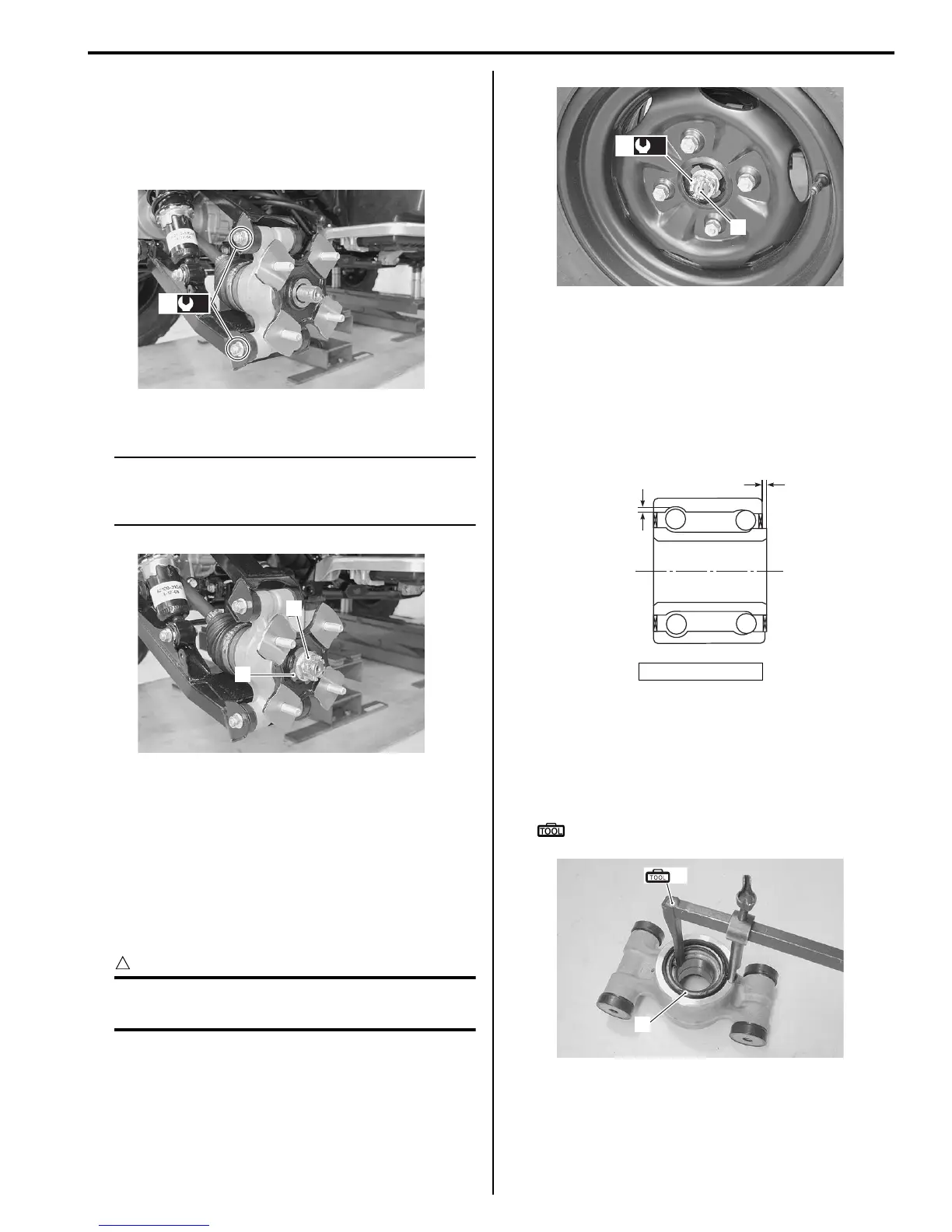

Rear Suspension: 2C-6
• Tighten the rear knuckle nuts (3) to the specified
torque.
Tightening torque
Rear suspension knuckle nut (Upper and Lower)
(a): 60 N·m (6.0 kgf-m, 43.5 lbf-ft)
• Install the washer (4) and hub nut (5).
NOTE
The conical side of washer (4) faces outside.
Refer to “Rear Suspension Assembly
Construction (Page 2C-2)”.
• Install the rear wheel assembly. Refer to “Front /
Rear Wheel Removal and Installation: in Section
2D”.
• Tighten the hub nut (5) to the specified torque.
Tightening torque
Rear wheel hub nut (b): 121 N·m (12.1 kgf-m, 87.5
lbf-ft)
• Install the cotter pin (6).
CAUTION
!
The removed cotter pin (6) must be replaced
with a new one.
Rear Hub Bearing Inspection
B931H22306008
Inspect the inner race play of the rear hub bearing by
hand while it is in the rear knuckle.
Rotate the inner race by hand to inspect for abnormal
noise and smooth rotation. If there is anything unusual,
replace the rear hub bearing with a new one.
Rear Hub Bearing Removal and Installation
B931H22306009
Removal
1) Remove the outer dust seal (1) with the special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
(a)
3
I931H1230011-01
5
4
I931H1230012-01
“a”: Play
6
(b)
5
I931H1230013-01
“a”
“a”
I831G1220024-02
1
(A)
I931H1230014-01
To Next Page
