Automatic Transmission: 5A-5

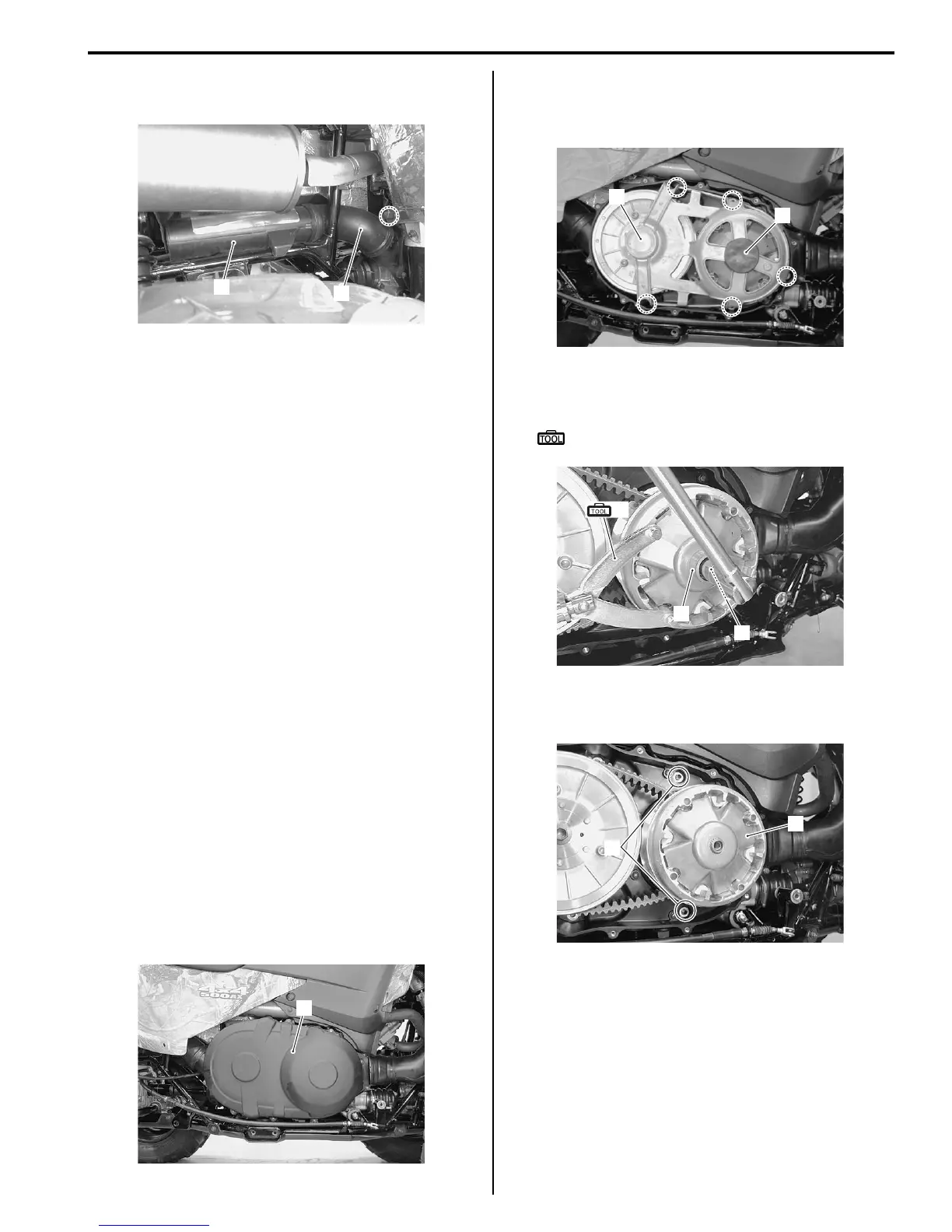

5) Remove the outlet belt cooling duct No. 1 (4) along
with outlet belt cooling duct connector (5).
Installation
1) Install the V-belt cooling duct as shown in the V-belt
cooling duct construction. Refer to “V-belt Cooling
Duct Construction (Page 5A-4)”.
2) Install the removed parts.
Clutch Engagement and Lock-up Speed
Inspection
B931H25106004
Refer to “Automatic Clutch Inspection: in Section
0B”.
V-belt Type Continuously Variable Automatic
Transmission Removal and Installation
B931H25106005
Removal
V-belt outer cover
1) Remove the seat. Refer to “Seat Removal and
Installation: in Section 9D”.
2) Remove the right side cover. Refer to “Front Side
Exterior Parts Removal and Installation: in
Section 9D”.
3) Remove the inner fender. Refer to “Front Side
Exterior Parts Removal and Installation: in
Section 9D”.
4) Removal the footrest. Refer to “Footrest Removal
and Installation: in Section 9E”.
5) Remove the brake pedal. Refer to “Rear Brake
Pedal Removal and Installation: in Section 4A”.
6) Remove the V-belt outer cover (1).
Movable drive face
1) Remove the cap (1) and movable drive face cover
(2).
2) Hold the movable drive face with the special tool and
remove the drive face bolt (3) and collar (4).
Special tool
(A): 09930–40113 (Flywheel rotor holder)
3) Remove the dowel pins (5).
4) Remove the movable drive face assembly (6).
4
5
I931H1510005-01
1
I931H1510006-01
1
2
I931H1510007-01
(A)
4
3
I931H1510008-01
5
6
I931H1510009-01
