Suzuki kq500 - Rear Brake Cable Routing Diagram

Brake Control System and Diagnosis: 4A-2

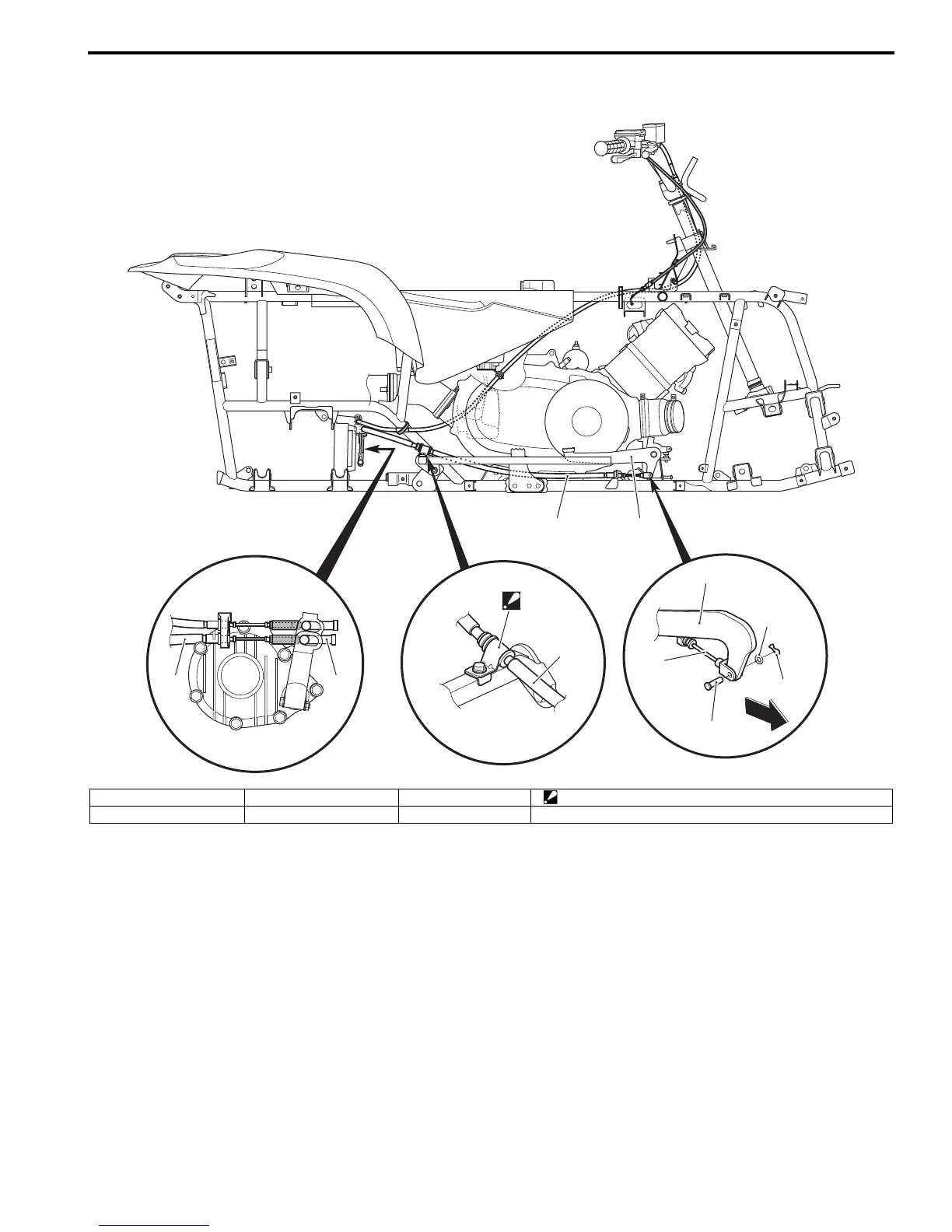

Rear Brake Cable Routing Diagram
B931H24102002
1
3
2
1
“A”
1
3
5
6
4
1
FWD
FWD
I931H1410044-02
1. Rear brake cable 3. Rear brake pedal 5. Washer “A”: Fix the rear brake cable to the footrest bar with clamp.
2. Adjust nut 4. Pin 6. Cotter pin
