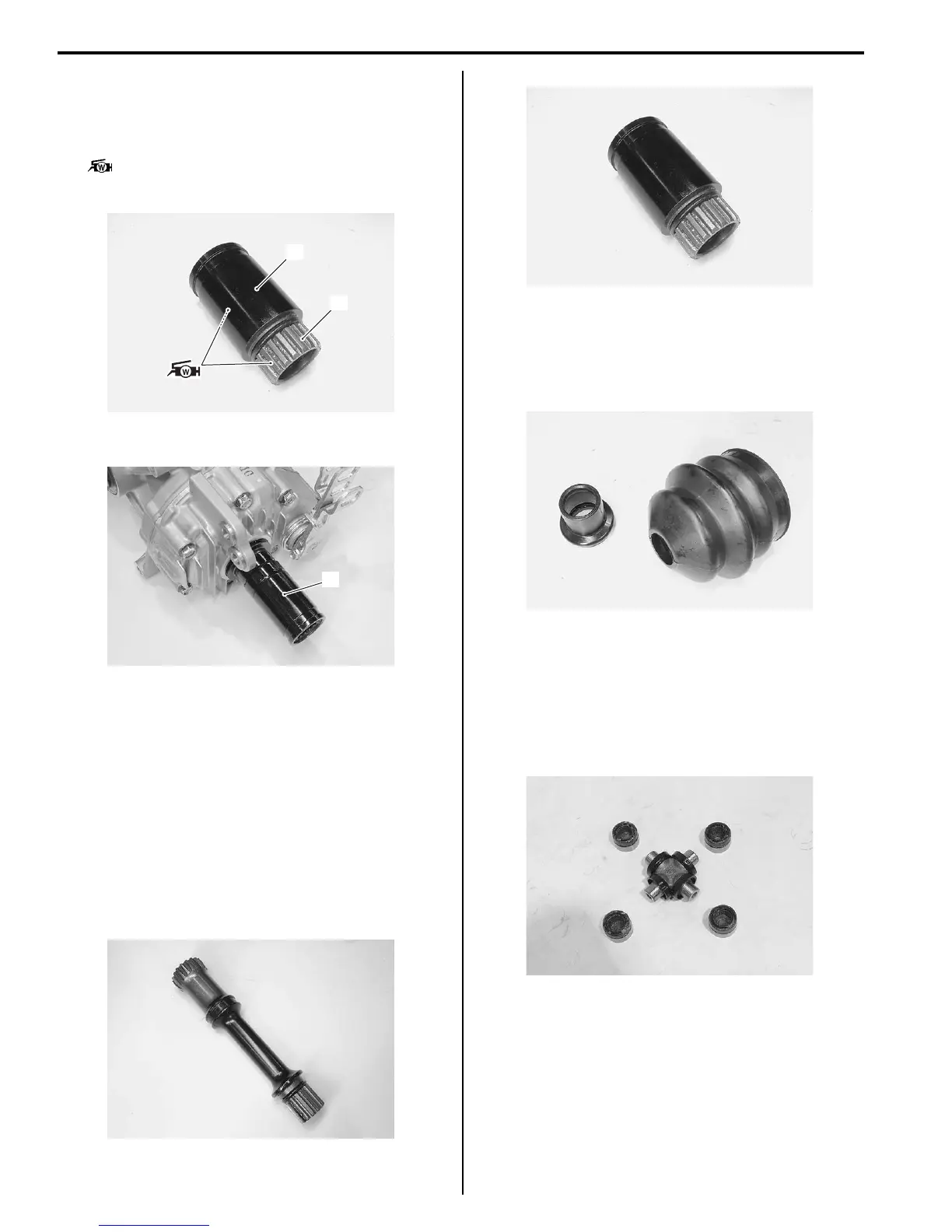

3D-22 Propeller Shafts:
16) Install the O-ring (13) to the rear propeller shaft joint
(14).
17) Apply grease (approx. 4 grams) to the spline of rear
propeller shaft joint.
: Grease 99000–25160 (Water resistance
grease or equivalent)
18) Install the rear propeller shaft joint (15).
19) Install the final gear assembly. Refer to “Final Gear
Assembly Removal and Installation: in Section
3B”.
Rear Propeller Shaft Related Parts Inspection
B931H23406015
Refer to “Rear Propeller Shaft Removal and Installation
(Page 3D-19)”.
Rear Propeller Shaft / Rear Propeller Shaft Joint
Inspect the rear propeller shaft and rear propeller shaft
joint for wear or damage. If any defects are found,
replace it with a new one.
Boots
Inspect the rear output joint boot and propeller shaft joint
boot for crack or damage. If any defects are found,
replace the boot with a new one.
Universal Joint
Inspect the universal joint in the following procedures:
1) Inspect the universal joint and outer surface of the
bearing for scuffing, wear or damage. If any defects
are found, replace the bearings and universal joint
as a set.
14
13
I931H1340092-03
15
I931H1340093-02
I931H1340094-01
I931H1340095-01
I931H1340096-01
I931H1340097-01
To Next Page
