Differential: 3B-4
Front Drive (Differential) Gear Oil Level
Inspection
B931H23206003
Refer to “Front Differential Gear Oil Inspection: in
Section 0B”.
Front Drive (Differential) Gear Oil Replacement
B931H23206004
Refer to “Front Differential Gear Oil Inspection: in
Section 0B”.

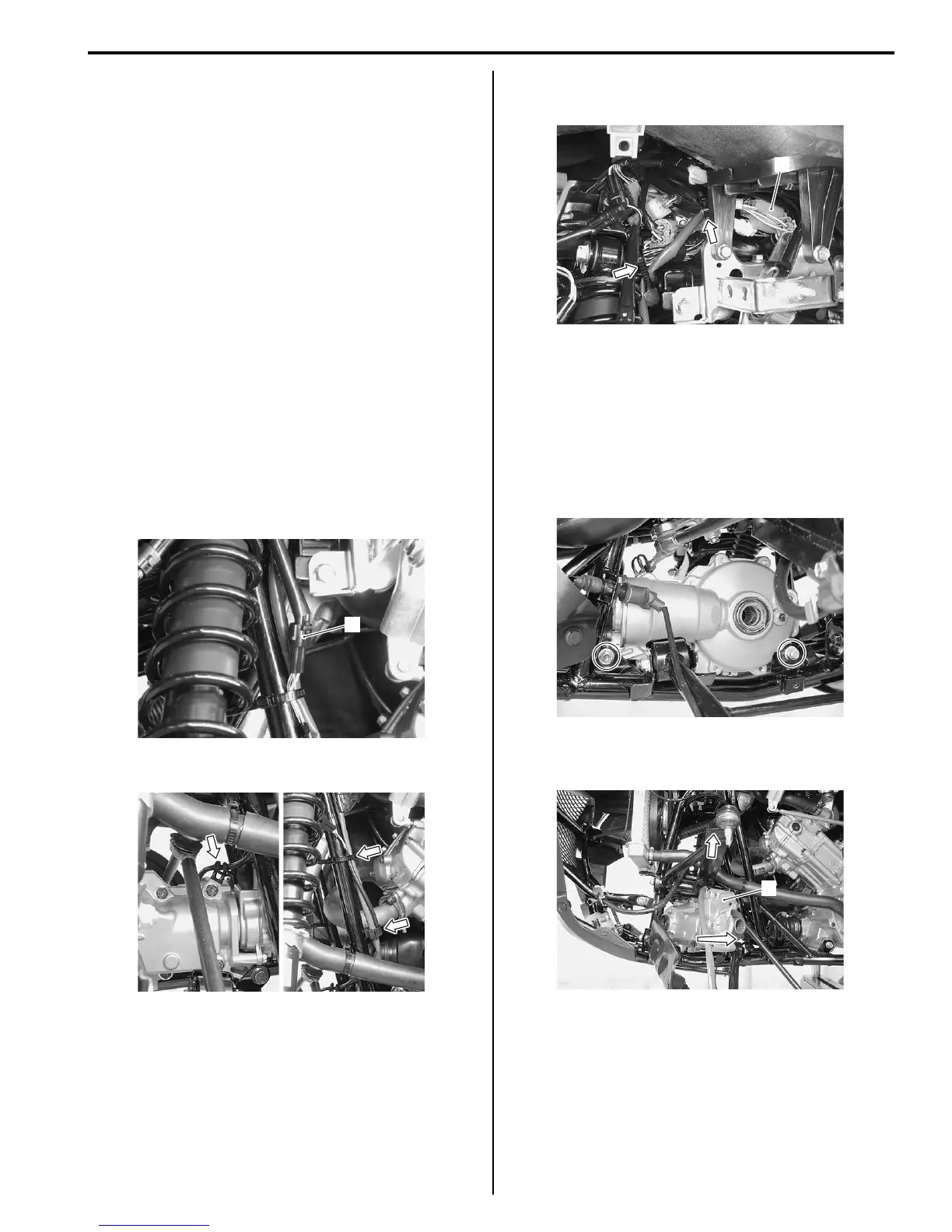

Front Drive (Differential) Assembly Removal
and Installation
B931H23206005
Removal
1) Remove the front wheels. Refer to “Front / Rear
Wheel Removal and Installation: in Section 2D”.
2) Drain front differential gear oil. Refer to “Front
Differential Gear Oil Inspection: in Section 0B”.
3) Remove the left inner fender. Refer to “Front Side
Exterior Parts Removal and Installation: in
Section 9D”.
4) Disconnect the rear brake light switch lead wire
coupler (1).
5) Remove the lead wire from clamps.
6) Remove the clamps and disconnect the 4WD/diff-
lock actuator lead wire coupler (2).
7) Remove the drive shaft. Refer to “Front Drive Shaft
Assembly Removal and Installation: in Section
3A”.
8) Remove the front shock absorber. Refer to “Front
Shock Absorber Removal and Installation: in
Section 2B”.
9) Remove the front drive (differential) mounting bolts
and nuts.
10) Move the suspension upper arm upward and remove
the front drive (differential) assembly (3).
1
I931H1320002-01
I931H1320003-01
2
I931H1320004-01
I931H1320005-01
3
I931H1320006-01
To Next Page
