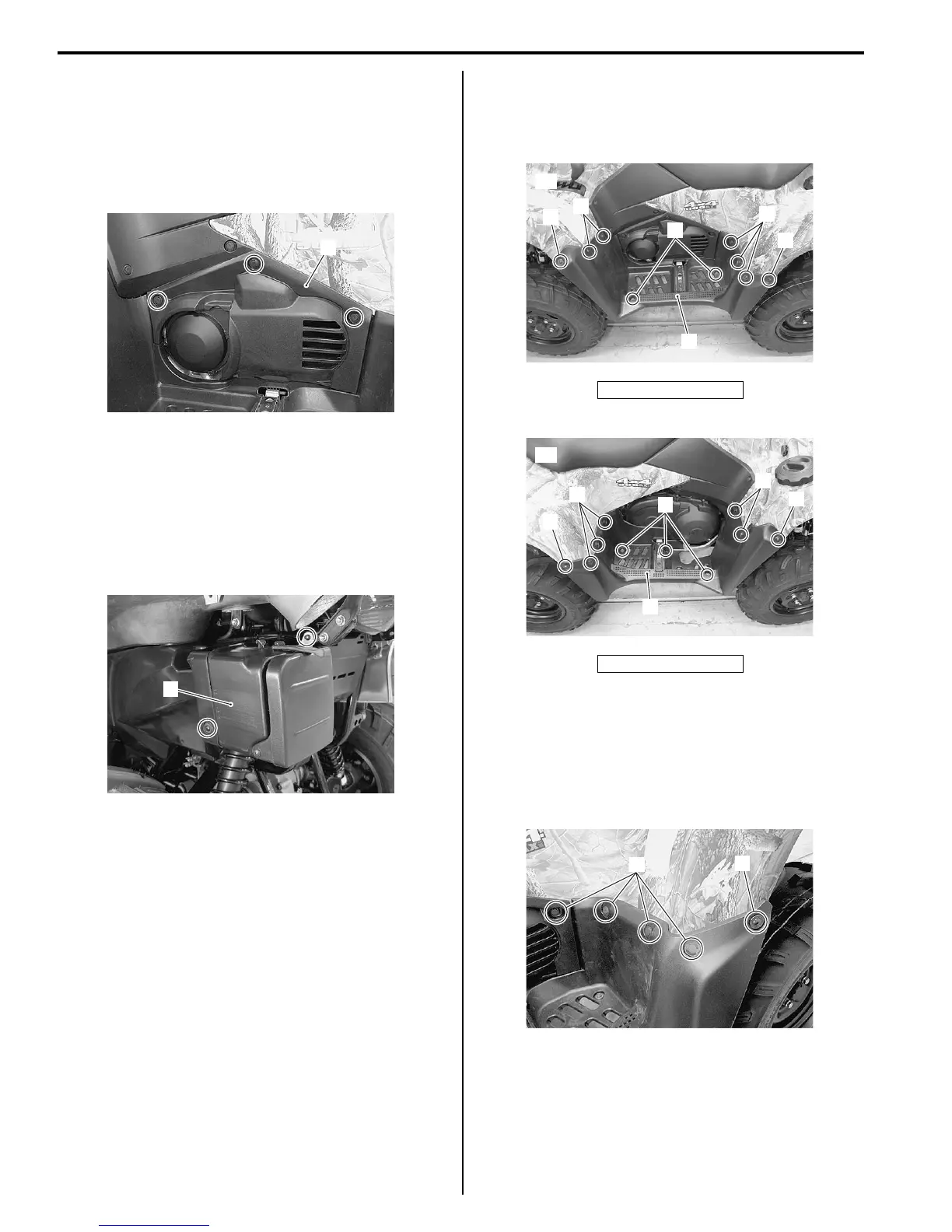

9D-9 Exterior Parts:
Rear Side Exterior Parts Removal and
Installation
B931H29406006
Engine Side Cover
Removal
Remove the engine side cover (1).
Installation
Install the engine side cover in the reverse order of
removal.
Rear Box
Removal
Remove the rear box (1).
Installation
Install the rear box in the reverse order of removal.
Mud Guard
Removal
Remove the mud guards (1) by removing the bolts (2),
screws (3) and fasteners (4), left and right.
Installation
Install the mud guard in the reverse order of removal.
Fuel Tank Outer Cover
Removal
1) Remove the fasteners (1) and screws (2).
1
I931H1940018-02
1
I931H1940019-01
“A”: Left side
“B”: Right side
2
1
[A]
3
4
3
4
I931H1940020-03
2
1
[B]
3
4
3
4
I931H1940021-02
1
2
I931H1940022-02
