Suzuki RMX450Z Service Manual

Engine General Information and Diagnosis: 1A-60
DTC “24” (P0351): Ignition Coil Circuit Malfunction
BA02J21104016
NOTE
Refer to “No Spark or Poor Spark” in Section 1H (Page 1H-3) for details.
DTC “31” (P0705): GP Switch Circuit Malfunction
BA02J21104017
Detected Condition and Possible Cause

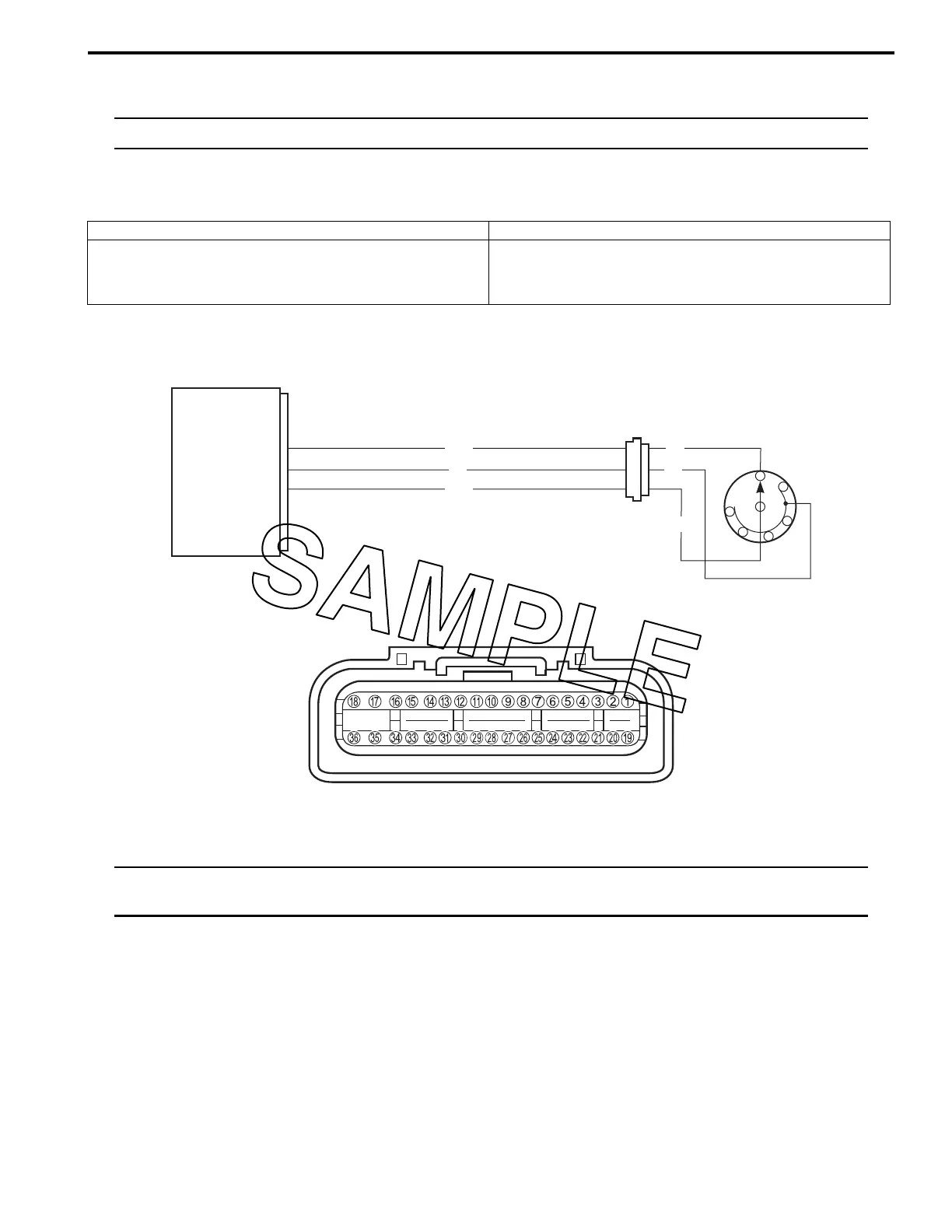

Wiring Diagram
ECM coupler (Harness side)
Troubleshooting
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to “Use of SDS Diagnosis Reset
Procedures” (Page 1A-12).
Detected condition Possible cause
No GP switch voltage
Switch voltage is not within the following range.
Switch voltage ≥ 0.89 V
• GP switch circuit open or short.
• GP switch malfunction.
• ECM malfunction.
N
1
5
4
2
3
ECM
GP switch
BI
P
B/W
B/W
Bl/B
GP 4
NT 12
E18
P
IA02J1110062-02
I933H1110012-02

Suzuki RMX450Z Specifications

General

Displacement	449cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	96.0 mm x 62.1 mm
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Fuel Tank Capacity	6.2 L (1.6 US gal)
Overall Length	2185 mm (86.0 in)
Ground Clearance	325mm
Seat Height	955mm
Wheelbase	1, 480mm
