Suzuki RMX450Z - Component Location; FI System Parts Location

Engine General Information and Diagnosis: 1A-6

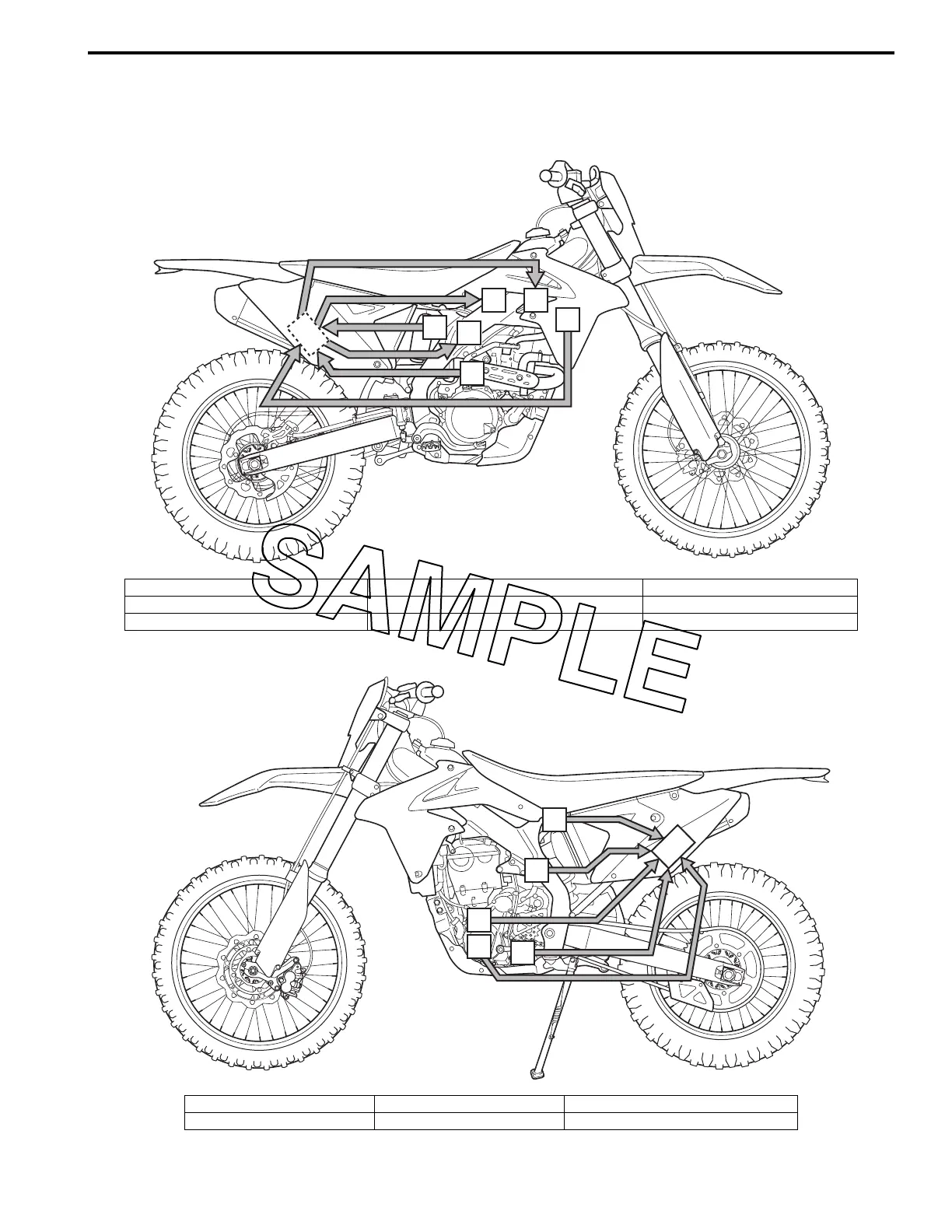

Component Location
FI System Parts Location
BA02J21103001
D
F
G
B
A
E
C
IA02J1110006-06
“A”: ECM “D”: Fuel pump “G”: IAP sensor
“B”: Ignition coil “E”: ECT sensor
“C”: TO sensor “F”: Fuel injector
L
I
A
J
H
K
IA02J1110007-04
“A”: ECM “I”: TP sensor “K”: Crankshaft rotation signal sensor
“H”: IAT sensor “J”: CKP sensor “L”: GP switch
