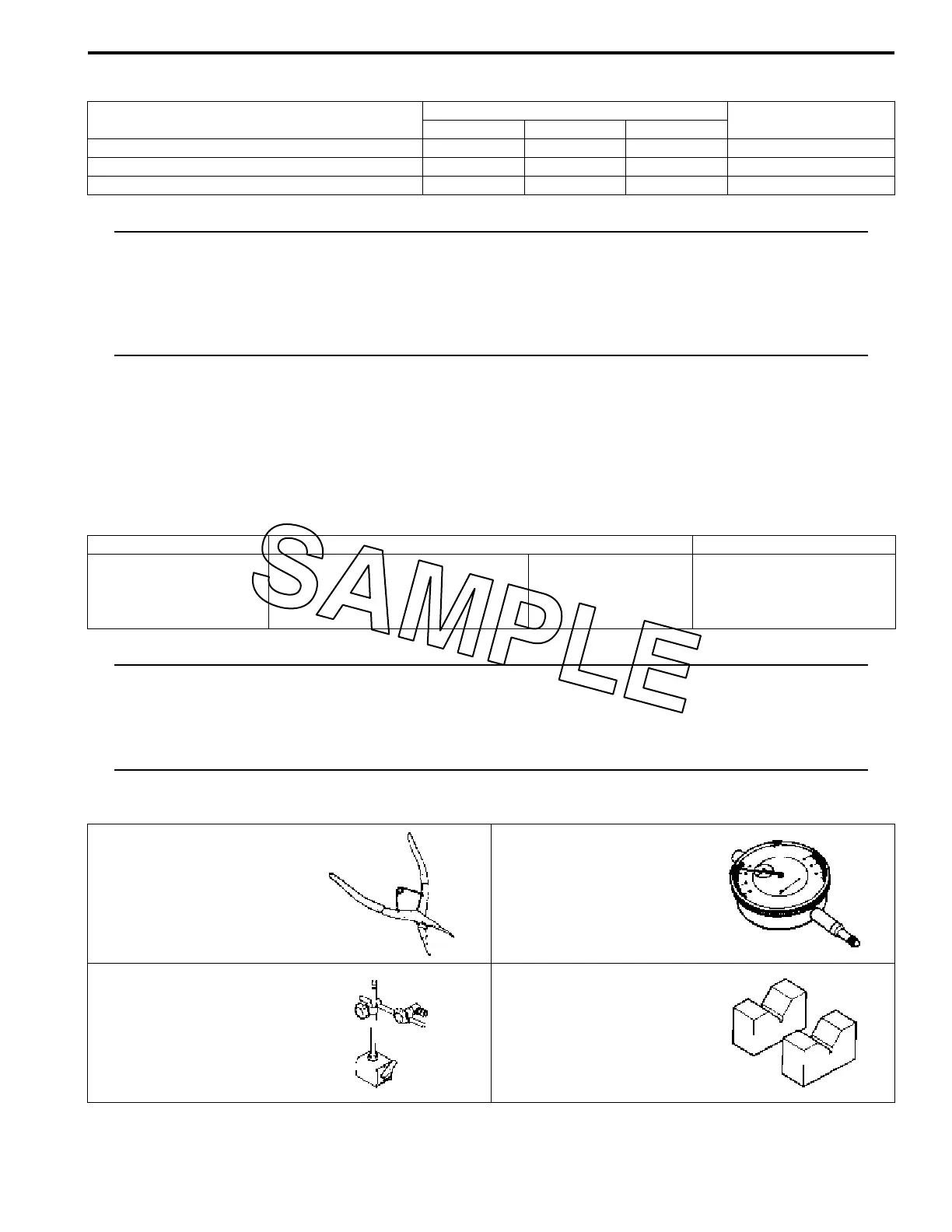

Wheels and Tires: 2D-16
Tightening Torque Specifications
BA02J22407002
NOTE
The specified tightening torque is described in the following.
“Front Wheel Components” (Page 2D-2)
“Front Wheel Assembly Construction” (Page 2D-3)
“Rear Wheel Components” (Page 2D-9)
“Rear Wheel Assembly Construction” (Page 2D-10)
“Rear Wheel Spoke Construction” (Page 2D-11)
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List” in Section 0C
(Page 0C-8).
Special Tools and Equipment
Recommended Service Material
BA02J22408001
NOTE
Required service material is also described in the following.
“Front Wheel Components” (Page 2D-2)
“Front Wheel Assembly Construction” (Page 2D-3)
“Rear Wheel Components” (Page 2D-9)
“Rear Wheel Assembly Construction” (Page 2D-10)
Special Tool
BA02J22408002
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Front axle nut 35 3.5 25.0 )(Page 2D-5)
Front axle holder bolt 18 1.8 13.0 )(Page 2D-5)
Rear axle nut 100 10.0 72.5 )(Page 2D-12)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE “A” or
equivalent
P/No.: 99000–25010 )(Page 2D-4) / )(Page 2D-
7) / )(Page 2D-8) /
)(Page 2D-14) /
)(Page 2D-15)
09900–06108 09900–20607
Snap ring remover (Close
type)
Dial gauge
)(Page 2D-6) / )(Page 2D-
8) / )(Page 2D-13) /
)(Page 2D-14)
)(Page 2D-5) / )(Page 2D-
12)
09900–20701 09900–21304
Dial gauge chuck V blocks
)(Page 2D-5) / )(Page 2D-
12)
)(Page 2D-5) / )(Page 2D-
12)
