Suzuki RMX450Z Service Manual

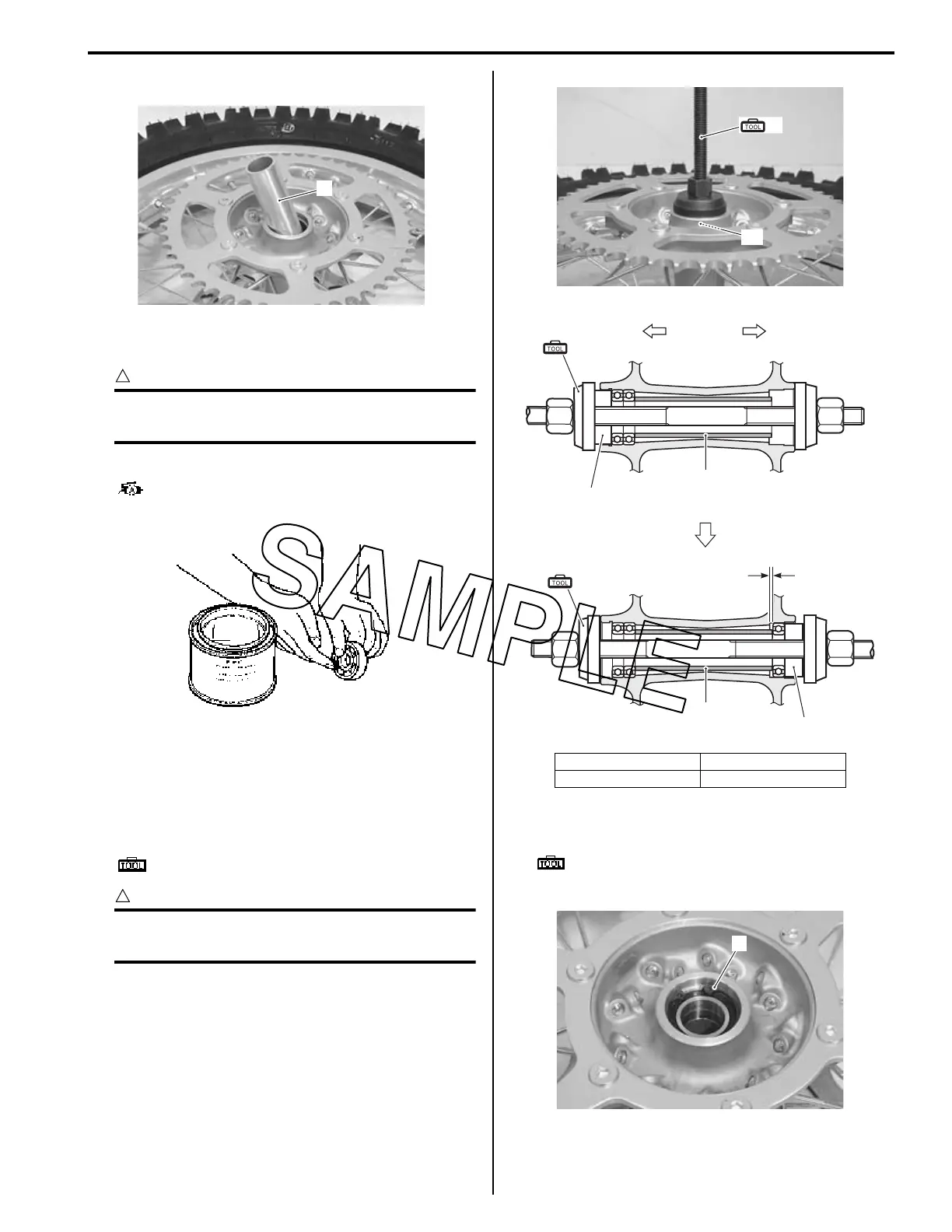

Wheels and Tires: 2D-14
5) Remove the spacer (4).
Installation
CAUTION
!
The removed snap ring, dust seal and
bearings must be replaced with new ones.
1) Apply grease to the wheel bearings.
: Grease 99000–25010 (SUZUKI SUPER
GREASE “A” or equivalent)
2) First install the left wheel bearings with the special
tool, using the suitable spacer “A” match for the
outside dimension of bearing.
3) Next install the spacer (1) and install the right wheel
bearing with the suitable spacer “A” and special tool.
Special tool
(A): 09941–34513 (Steering race installer)
CAUTION
!
The sealed cover of the bearing must face
outside.
4) Install the snap ring (2).
Special tool
: 09900–06108 (Snap ring remover (Close
type))
4
IA02J1240013-01
I649G1240019-02
1. Spacer “a”: Clearance
“A”: Suitable spacer
(A)
“A”
IA02J1240014-01
LH RH
1
1
“a”
(A)
(A)
“A”
“A”
IA02J1240015-04
2
IA02J1240016-01

Suzuki RMX450Z Specifications

General

Displacement	449cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	96.0 mm x 62.1 mm
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Fuel Tank Capacity	6.2 L (1.6 US gal)
Overall Length	2185 mm (86.0 in)
Ground Clearance	325mm
Seat Height	955mm
Wheelbase	1, 480mm
