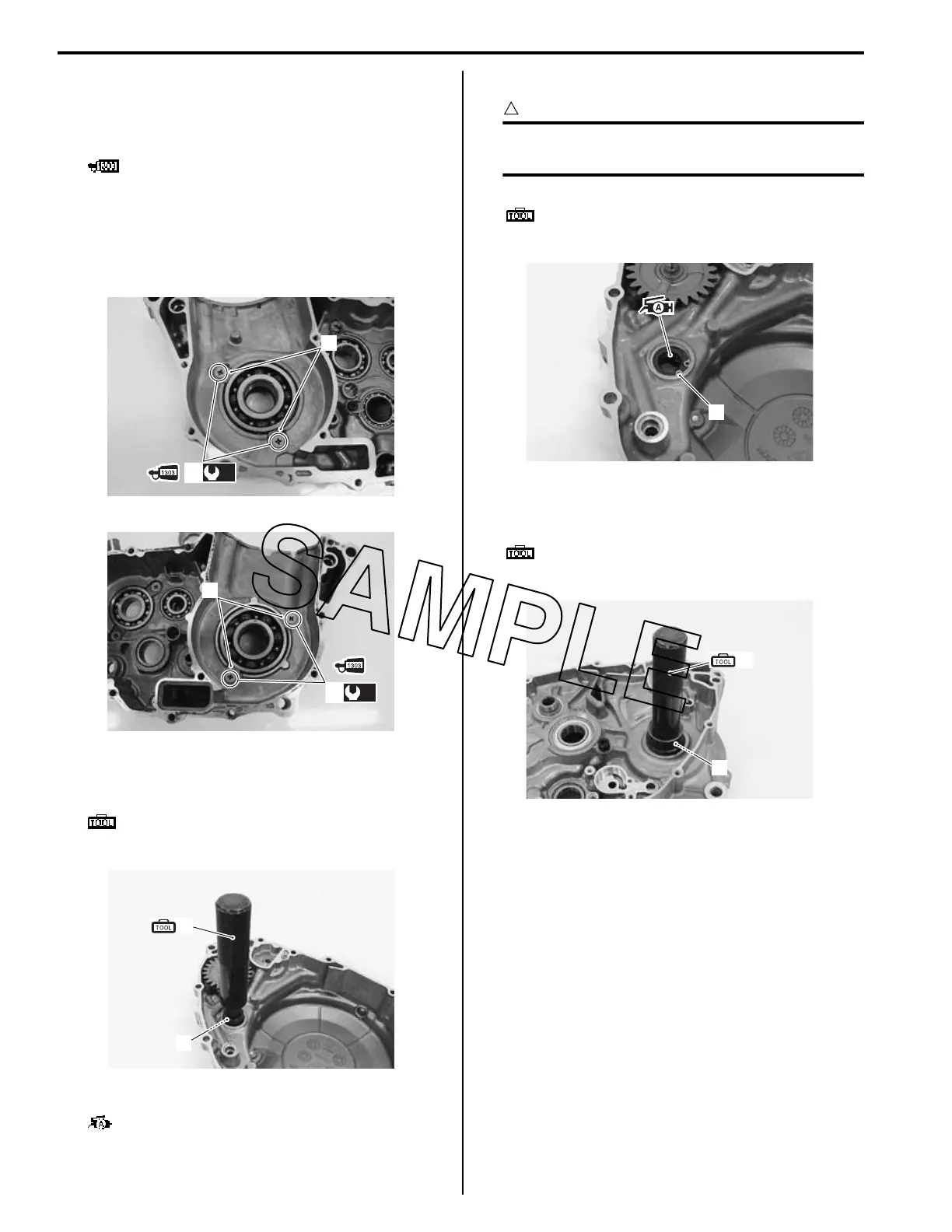

1D-65 Engine Mechanical:
3) Install the bearing retainers (3).
4) Apply a small quantity of thread lock to the bearing
retainer screws (4), and tighten them to the specified
torque.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER “1303” or
equivalent)
Tightening torque
Bearing retainer screw (a): 8.5 N·m (0.85 kgf-m,
6.0 lbf-ft)
5) Install the oil gallery oil seal (5) to the right crankcase
cover using the special tool.
Special tool
(A): 09913–70210 (Bearing installing set (10
– 75 Φ))
6) Apply grease to the oil seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE “A” or equivalent)
7) Install new snap ring (6).
CAUTION
!
The removed snap ring must be replaced
with a new one.
Special tool
: 09900–06108 (Snap ring remover (Close
type))
8) Install the right crankshaft oil seal (7) using the
special tool.
Special tool
(A): 09913–70210 (Bearing installing set (10
– 75 Φ))
9) Install the left crankshaft oil seal after install the
crankshaft. Refer to “Engine Bottom Side Assembly”
(Page 1D-55).
10) Assemble the engine bottom side. Refer to “Engine
Bottom Side Assembly” (Page 1D-55).
Transmission Oil Seal / Bearing Inspection
BA02J21406042
Refer to “Transmission Oil Seal / Bearing Inspection” in
Section 5B (Page 5B-8).
Transmission Oil Seal / Bearing Removal and
Installation
BA02J21406043
Refer to “Transmission Oil Seal / Bearing Removal and
Installation” in Section 5B (Page 5B-8).
(a)
4
3
IA02J1140113-01
(a)
4
3
IA02J1140114-01
(A)
5
IA02J1140115-01
6
IA02J1140116-02
(A)
7
IA02J1140117-03
