5C-7 Clutch:
Clutch Removal
BA02J25306009
1) Drain engine oil. Refer to “Engine Oil Filter
Replacement” in Section 0B (Page 0B-7).
2) Remove the rear brake pedal. Refer to “Rear Brake
Pedal Removal and Installation” in Section 4A
(Page 4A-16).
3) Remove the clutch cover (1).
4) Remove the gasket (2).
5) Remove the clutch springs and clutch pressure plate
(3).
NOTE
Loosen the clutch spring set bolts little by
little and diagonally.
6) Remove the clutch drive plates (4) and driven plates
(5).
7) Remove the spring washer (6) and washer seat (7).
8) Remove the clutch release thrust bearing (8) and
clutch push piece (9).

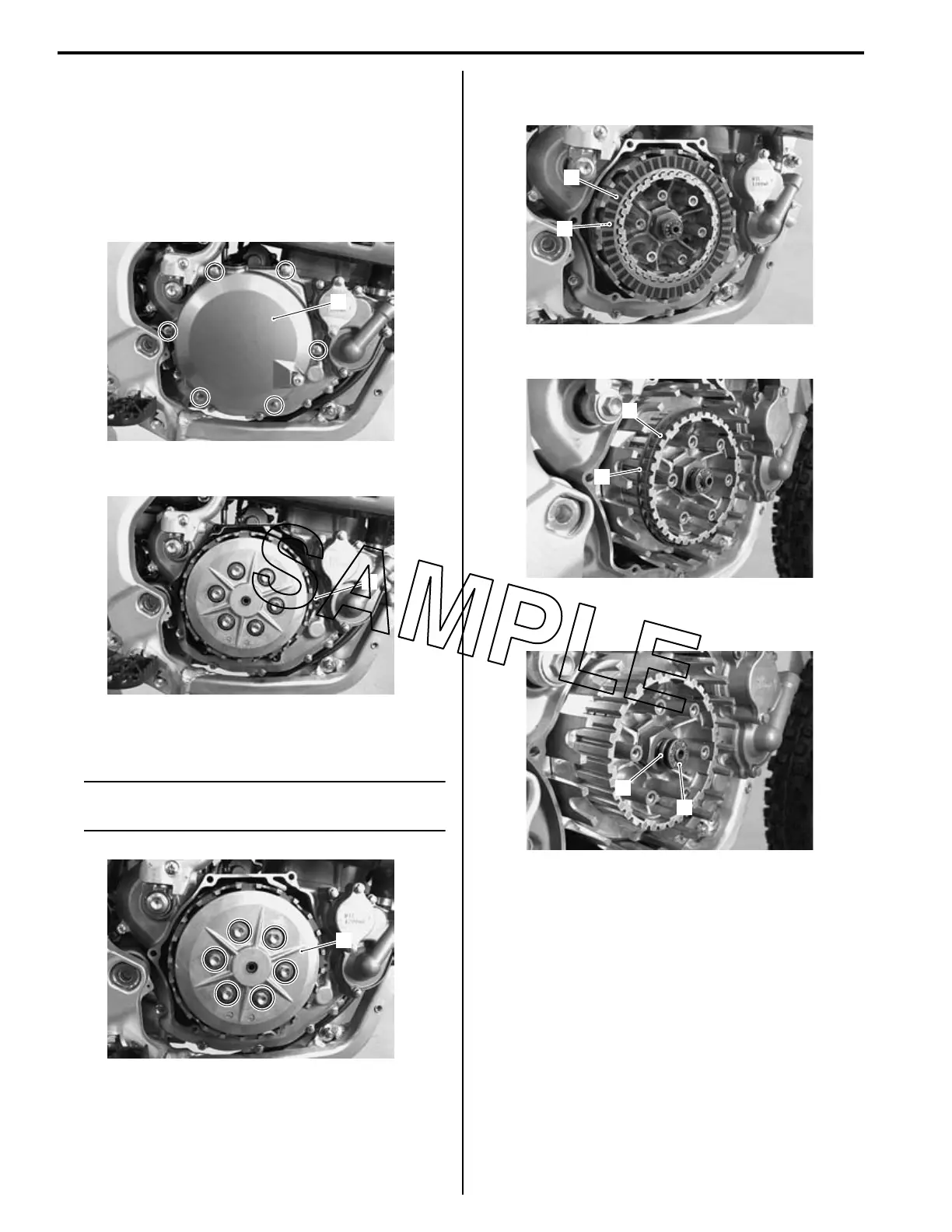

1
IA02J1530011-02
2
IA02J1530012-02
3
IA02J1530013-02
4
5
IA02J1530014-02
7
6
IA02J1530015-02
8
9
IA02J1530016-02
