Suzuki RMX450Z Service Manual

Engine Cooling System: 1F-2
General Description
Engine Coolant Description
BA02J21601001
CAUTION
!
• Use a high quality ethylene glycol base
anti-freeze, mixed with distilled water. Do
not mix an alcohol base anti-freeze and
different brands of anti-freeze.
• Do not put in more than 60% anti-freeze or
less than 50%. (Refer to Fig. 1 and 2.)
At the time of manufacture, the cooling system is filled
with a 50:50 mixture of distilled water and ethylene
glycol anti-freeze. This 50:50 mixture will provide the
optimum corrosion protection and excellent heat
protection, and will protect the cooling system from
freezing at temperatures above –31 °C (–24 °F).
If the motorcycle is to be exposed to temperatures below
–31 °C (–24 °F), this mixing ratio should be increased up
to 55% or 60% according to the figure.

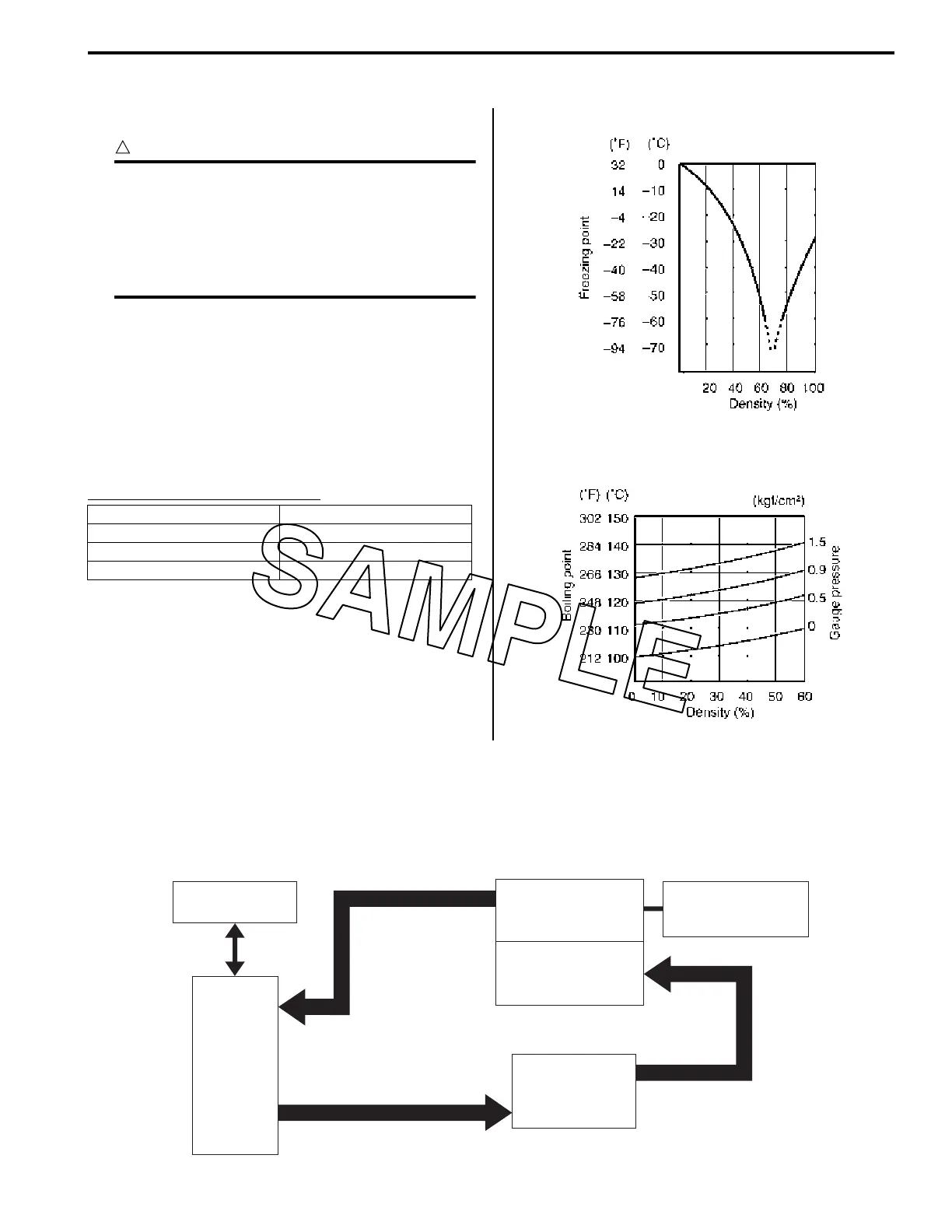

Anti-freeze Proportioning Chart
Fig.1: Engine coolant density-freezing point curve
Fig.2: Engine coolant density-boiling point curve
Schematic and Routing Diagram
Cooling Circuit Diagram
BA02J21602001
Anti-freeze density Freezing point
50% –31 °C (–24 °F)
55% –40 °C (–40 °F)
60% –55 °C (–67 °F)
I310G1160001-01
I310G1160002-01
WATER
PUMP
RADIATOR
ENGINE COOLANT
TEMPERATURE
SENSOR
CYLINDER HEAD
CYLINDER
RESERVOIR
TANK
IA02J1160001-01

Suzuki RMX450Z Specifications

General

Displacement	449cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	96.0 mm x 62.1 mm
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Fuel Tank Capacity	6.2 L (1.6 US gal)
Overall Length	2185 mm (86.0 in)
Ground Clearance	325mm
Seat Height	955mm
Wheelbase	1, 480mm
