Suzuki RMX450Z Service Manual

1D-63 Engine Mechanical:
Bearing
Rotate the bearing inner race by finger to inspect for
abnormal play, noise and smooth rotation while the
bearings are in the crankcase.
Replace the bearing if there is anything unusual. Refer
to “Crankshaft Oil Seal / Bearing Removal and
Installation” (Page 1D-63).

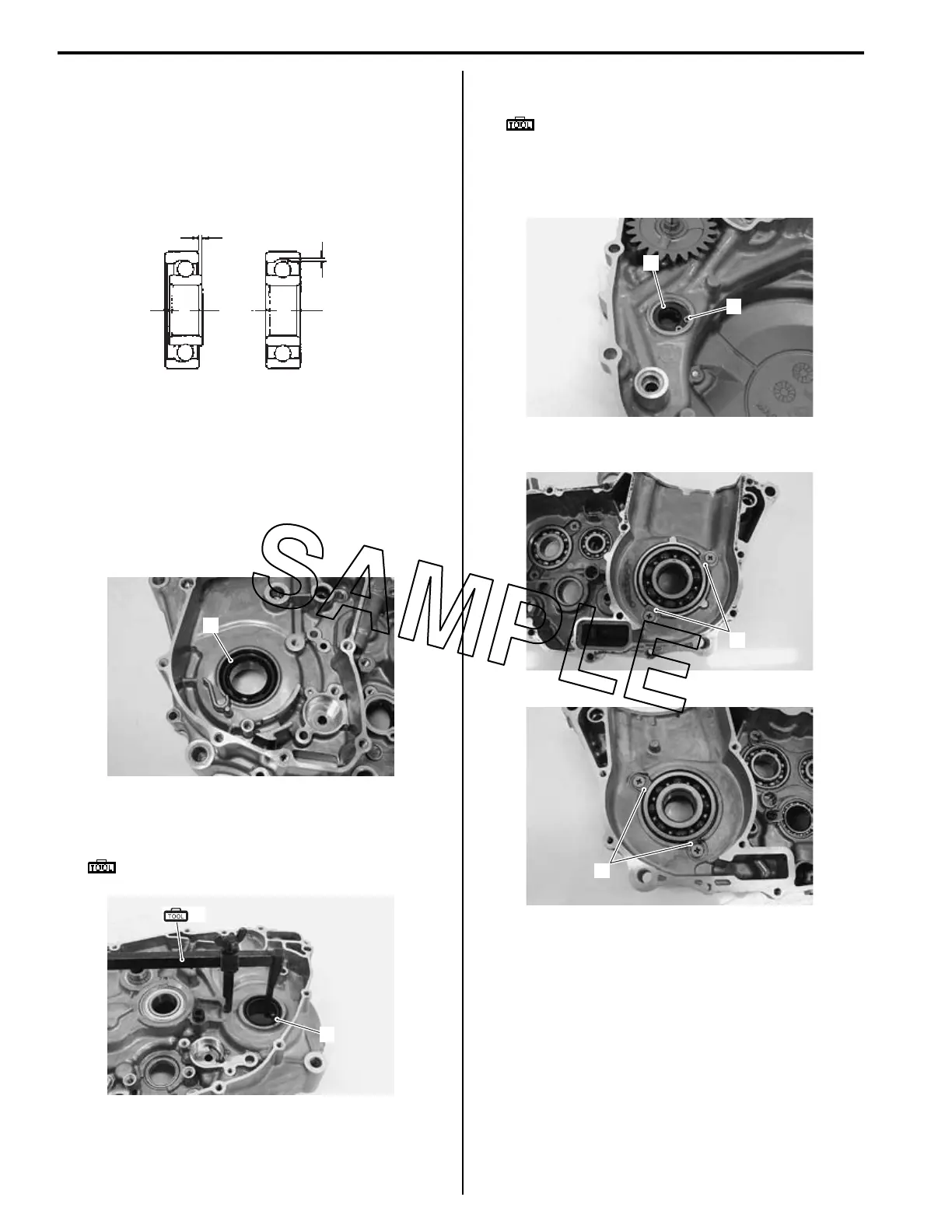

Crankshaft Oil Seal / Bearing Removal and
Installation
BA02J21406041
Removal
1) Disassemble the engine bottom side. Refer to
“Engine Bottom Side Disassembly” (Page 1D-51).
2) Remove the left crankshaft oil seal (1) using a
suitable tool.
3) Remove the right crankshaft oil seal (2) using the
special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
4) Remove the snap ring (3).
Special tool
: 09900–06108 (Snap ring remover (Close
type))
5) Remove the oil gallery oil seal (4) from the right
crankcase cover using a suitable tool.
6) Remove the bearing retainers (5).
Play
Play
I933H1140230-01
1
IA02J1140105-01
(A)
2
IA02J1140106-01
3
4
IA02J1140107-01
5
IA02J1140108-01
5
IA02J1140109-01
