1F-5 Engine Cooling System:
3) Reinstall the radiator covers, left and right.

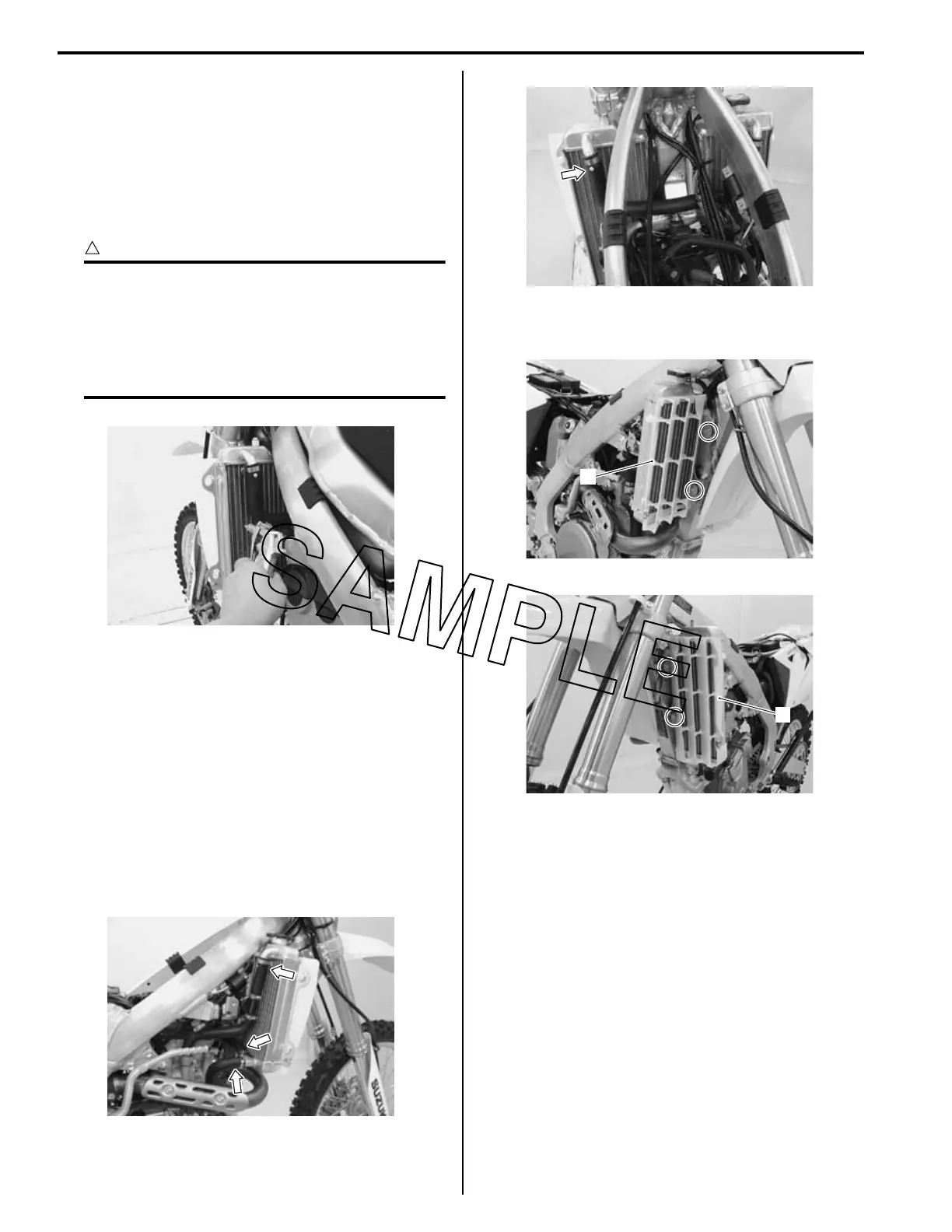

Radiator Cleaning
1) Remove the radiator covers, left and right. Refer to
“Exterior Parts Removal and Installation” in Section
9D (Page 9D-1).
2) Blow out any foreign matter that is stuck in the
radiator fins using compressed air.
CAUTION
!
• Be sure not to bend the fins when using
compressed air.
• Always apply compressed air from the
engine side. If compressed air is applied
from the front side, dirt will be forced into
the pores of radiator.
3) Reinstall the radiator covers, left and right.
Radiator Removal and Installation
BA02J21606004
Removal
1) Drain engine coolant. Refer to “Cooling System
Inspection” in Section 0B (Page 0B-9).
2) Remove the radiator covers, left and right. Refer to
“Exterior Parts Removal and Installation” in Section
9D (Page 9D-1).
3) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation” in Section 1G (Page 1G-5).
4) Disconnect the radiator hoses.
5) Remove the radiator louvers (1) and radiators by
removing the bolts.
Installation
Install the radiator in the reverse order of removal. Pay
attention to the following points:
• Connect the radiator hoses as shown in the water
hose routing diagram. Refer to “Water Hose Routing
Diagram” (Page 1F-3).
• Pour engine coolant and bleed air from the cooling
circuit. Refer to “Cooling System Inspection” in
Section 0B (Page 0B-9).
IA02J1160004-01
IA02J1160005-01
IA02J1160006-01
1
IA02J1160007-01
1
IA02J1160008-01
